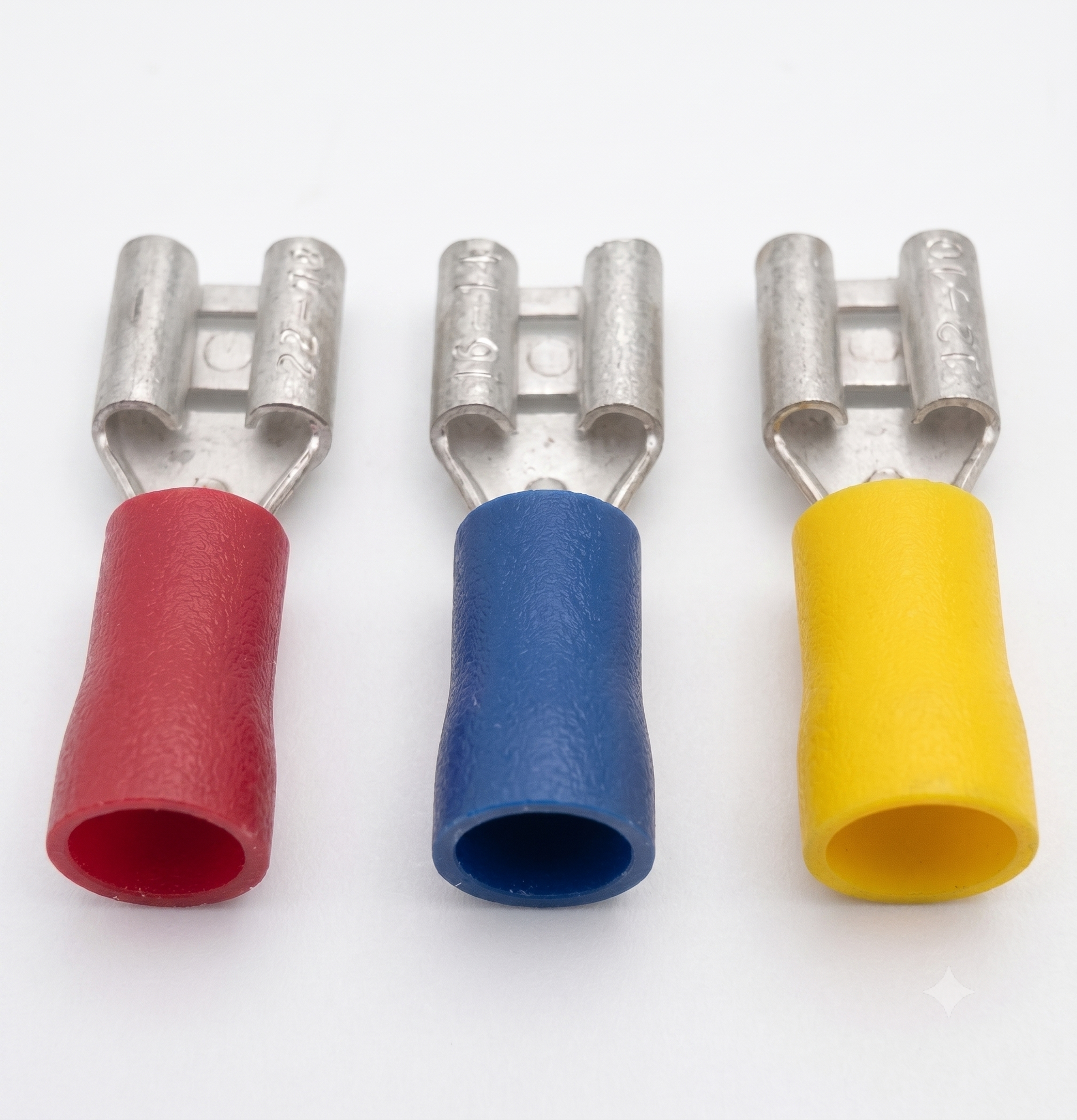

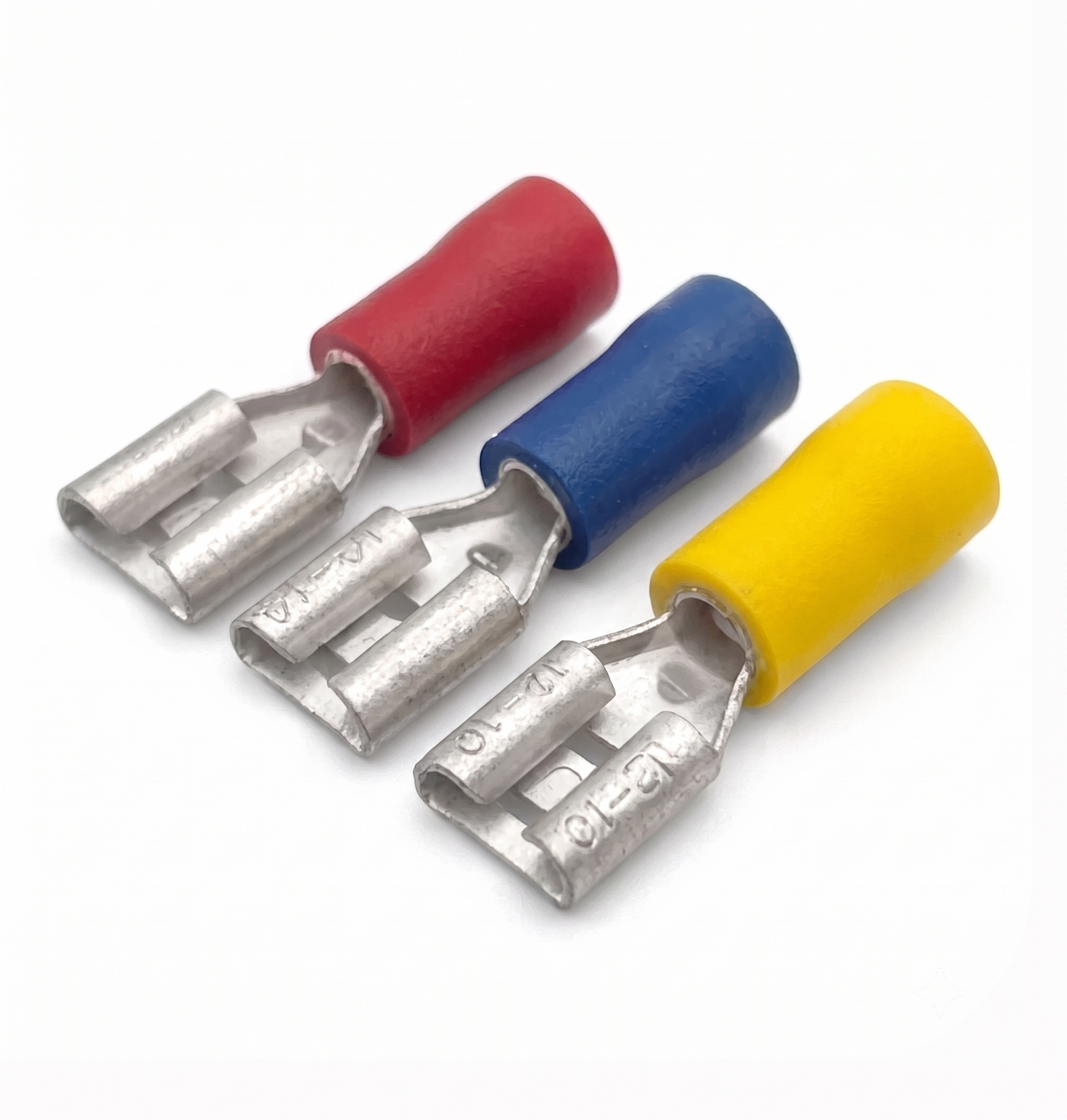

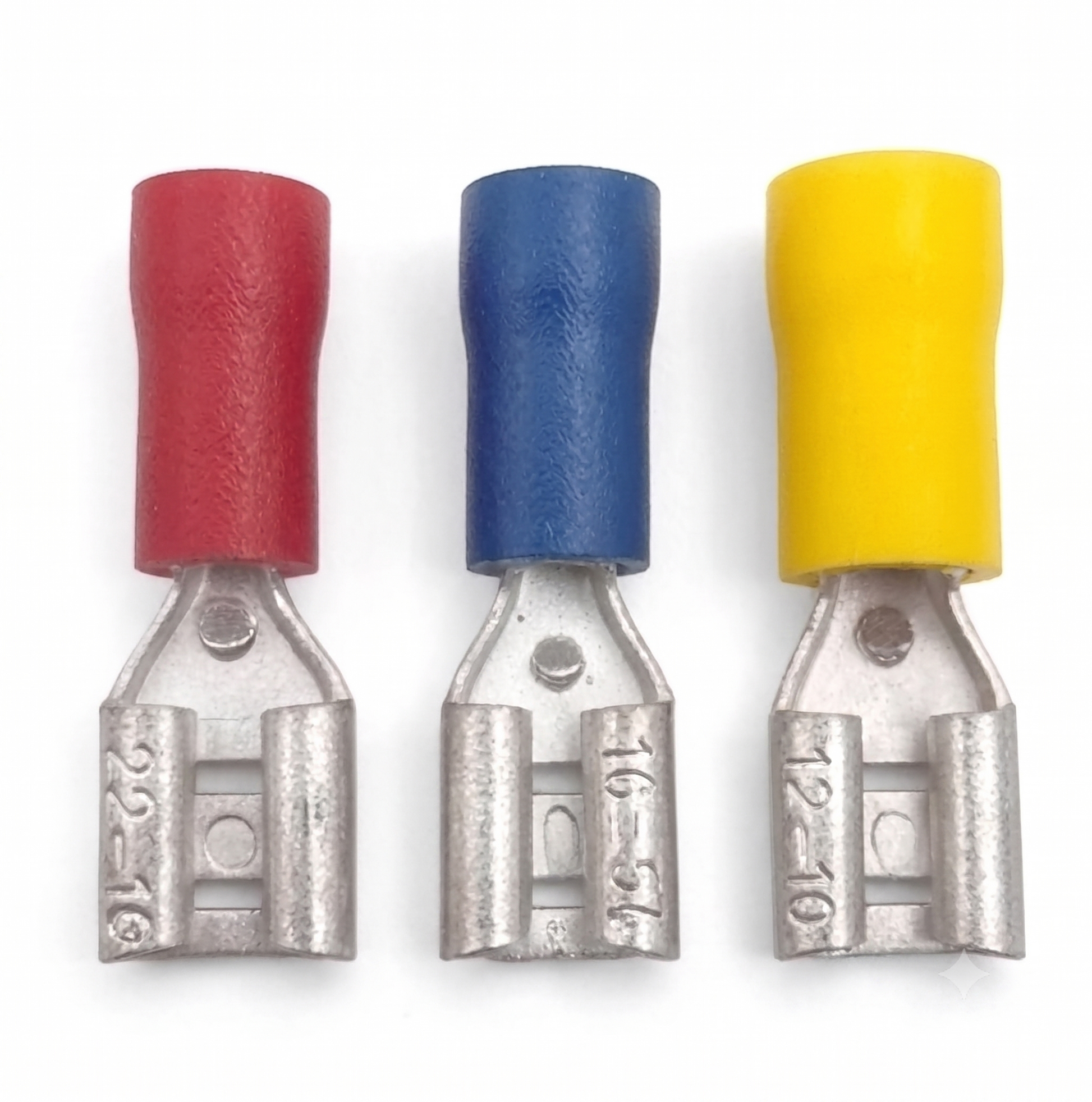

Insulated Female Spade Terminals – Half-Insulated Crimp (Red/Blue/Yellow)

Insulated female spade terminals (half-insulated) — push-on crimp connectors with a coloured, insulated crimp barrel and an open blade receptacle. The insulated barrel is colour-coded to wire size and protects the wire connection, while the open receptacle lets you inspect the crimp and gives an easy push-on/pull-off joint. The anti-vibration copper insert grips the wire for a secure, reliable connection.

Anti-vibration copper inserts

Tab sizes available
2.8mm to 9.5mm

Wire size by colour
Red: 0.25mm² - 1mm² (22-18 AWG)
Blue: 1.1mm² - 2.6mm² (14-16 AWG)
Yellow: 2.5mm² - 6.5mm² (12-10 AWG)

Standards
Manufactured to BS4579 and BS4G178

Pack quantities
100 & 1000

Uses
Automotive, marine and general electrical wiring — quick push-on connections where you want to be able to see the crimp.

For terminals with a fully covered receptacle, see our Fully Insulated Female Spade Terminals.

Also known as half-insulated, partially insulated or pre-insulated female spade connectors.
