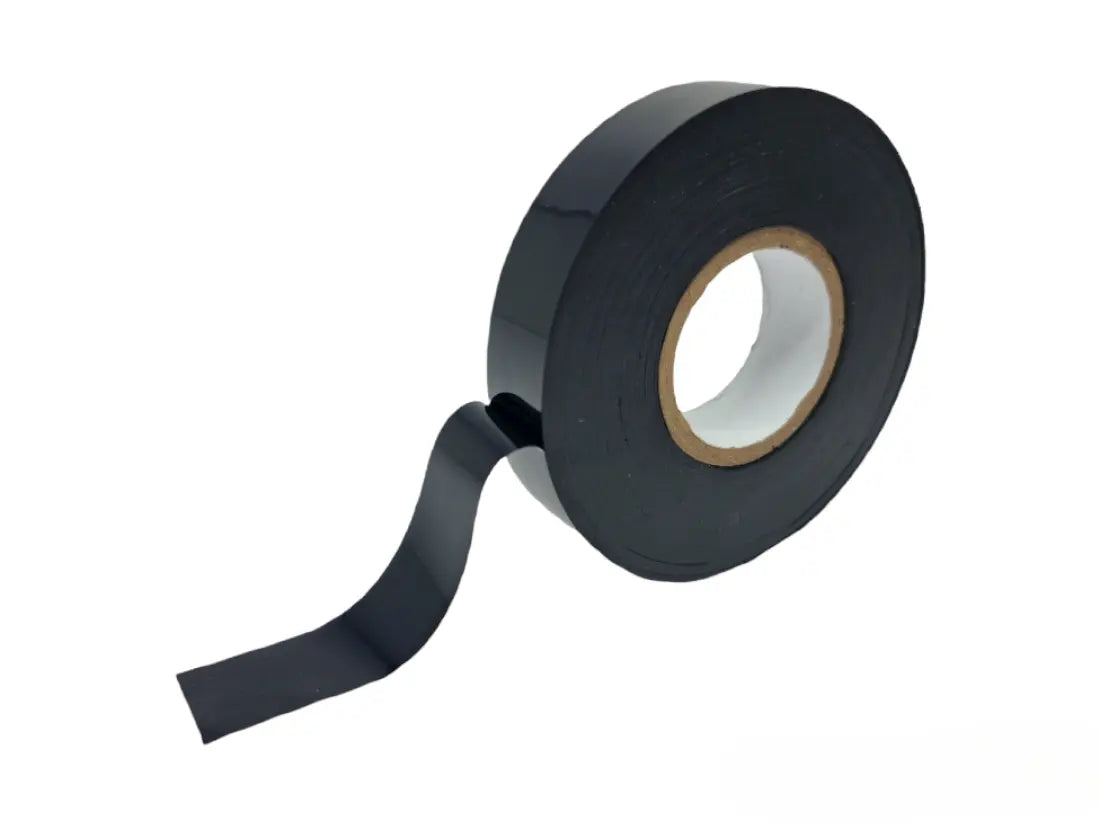

PVC Wiring Loom Tape – Non-Adhesive Harness Wrap
PVC Wiring Loom Tape – Non-Adhesive Harness Wrap
Couldn't load pickup availability
Non-adhesive PVC tape for wiring loom and harness applications. Bonds to itself rather than the surface, so it stretches and clings tightly around a bundle of cables without leaving sticky residue.
Material and construction
Premium grade plasticised PVC film, [confirm colour: black], total thickness 0.13mm (±0.005). Elongation 220%.
Performance
Tensile strength ≥15 N/cm. Temperature rating 80°C. Voltage resistance 600V. Dielectric strength 40kV/mm. Low speed unwind force 2.2-4.4 N/mm. Self-extinguishing flame retardancy.
Sizes and use
Supplied 19mm x 40m. Suitable for indoor and outdoor use. Secure the open end with heat shrink or adhesive tape once wrapped.
Also known as: harness tape, loom tape, wiring loom tape, non-adhesive wrap tape, self-clinging PVC tape.
| Total Thickness | 0.13mm (±0.005) |
| Elongation | 220% |
| Tensile Strength | ≥ 15 N/cm |
| Temperature Rating | 80°C |
| Voltage Resistance | 600V |
| Low Speed Unwind Force | 2.2-4.4 N/mm |
| Flame Retardancy | Self extinguishing |
| Dielectric Strength | 40 kV/mm |
