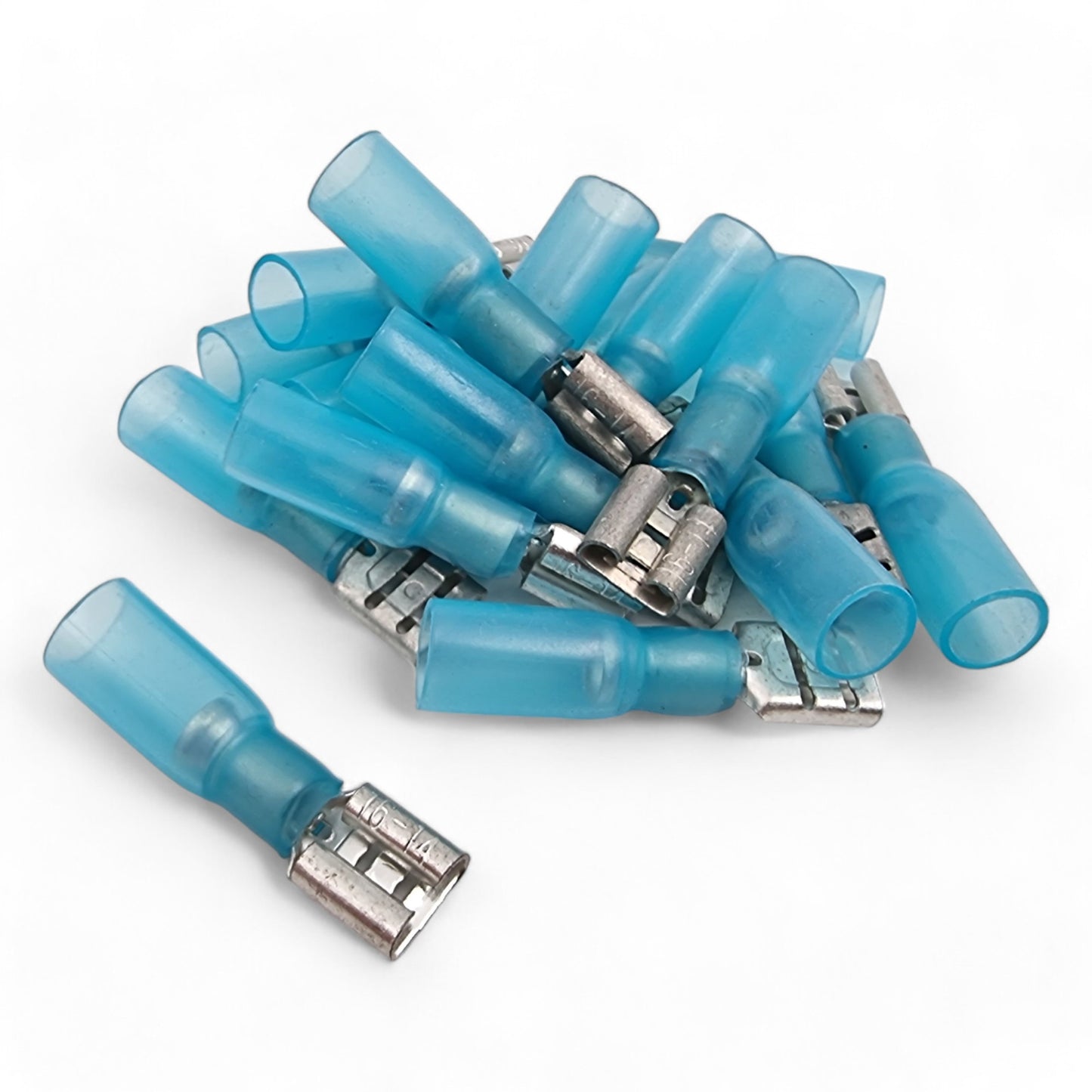

Heatshrink Female Spade Terminals - Waterproof 6.3mm Crimp Spades, Red, Blue & Yellow

Heatshrink female spade terminals push onto a standard 6.3mm male tab and seal around the cable with heat. The adhesive lined heatshrink insulation shrinks and melts around the wire, giving a waterproof connection that resists vibration and corrosion.

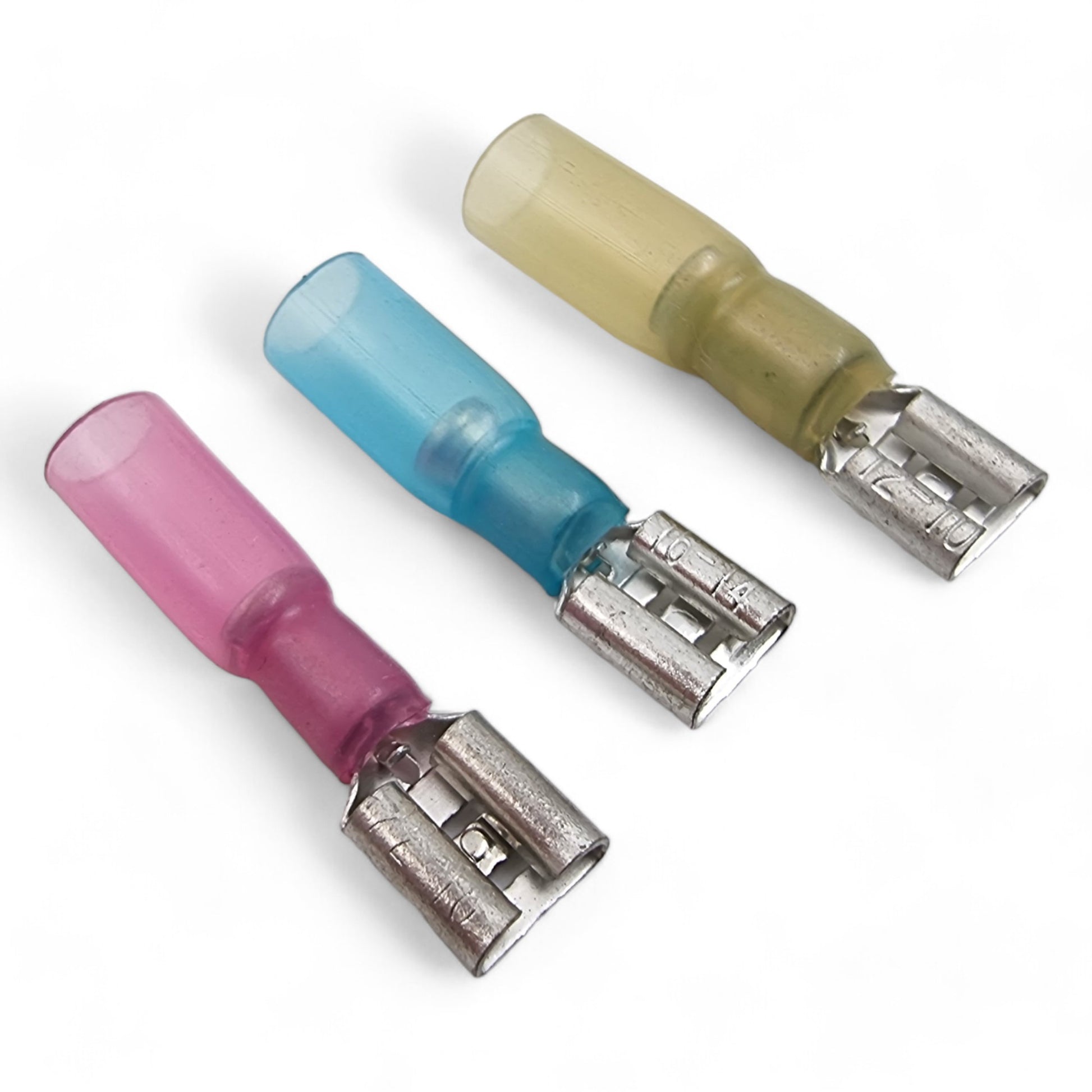

Colour - Wire size

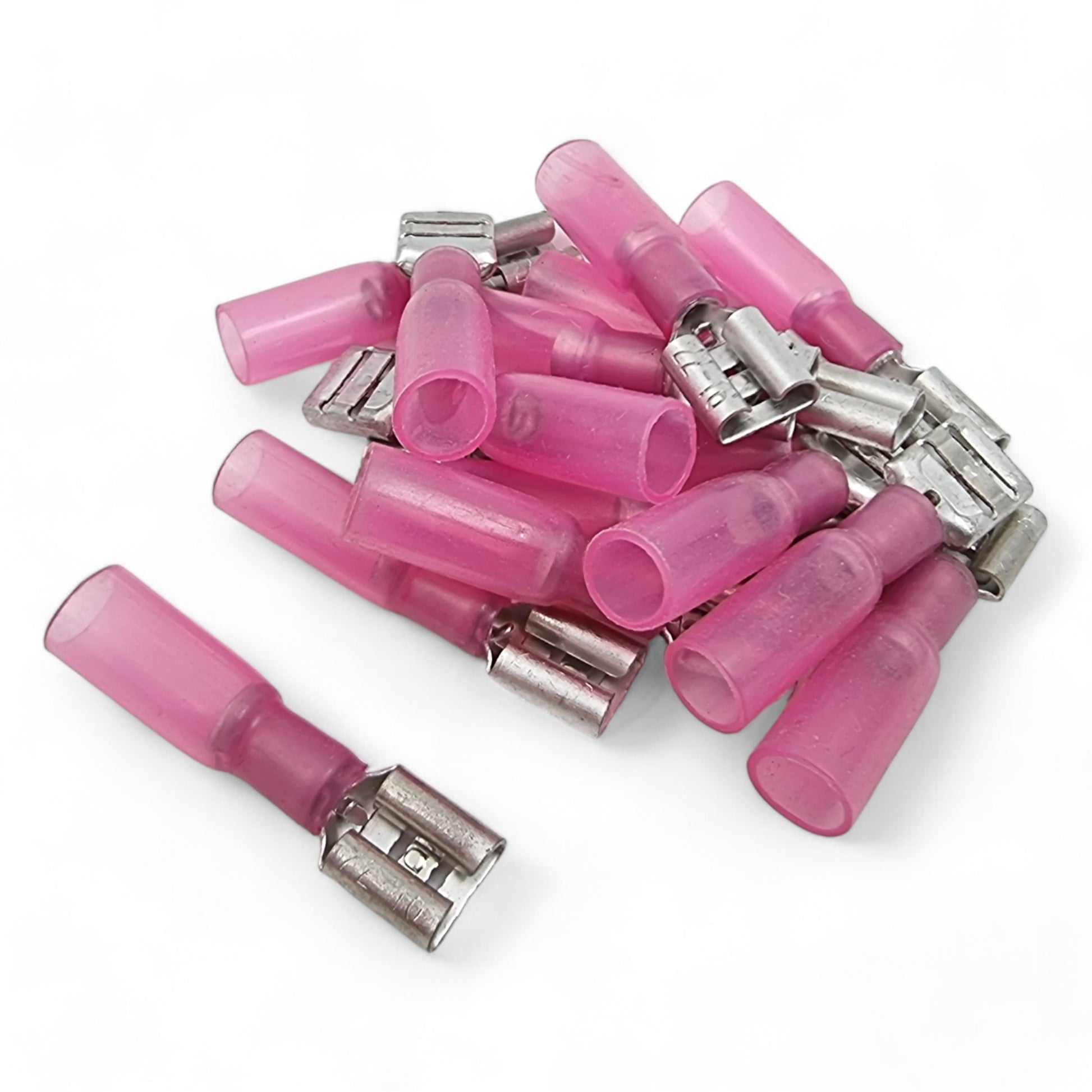

Red - 0.5-1.5mm²
Blue - 1.5-2.5mm²

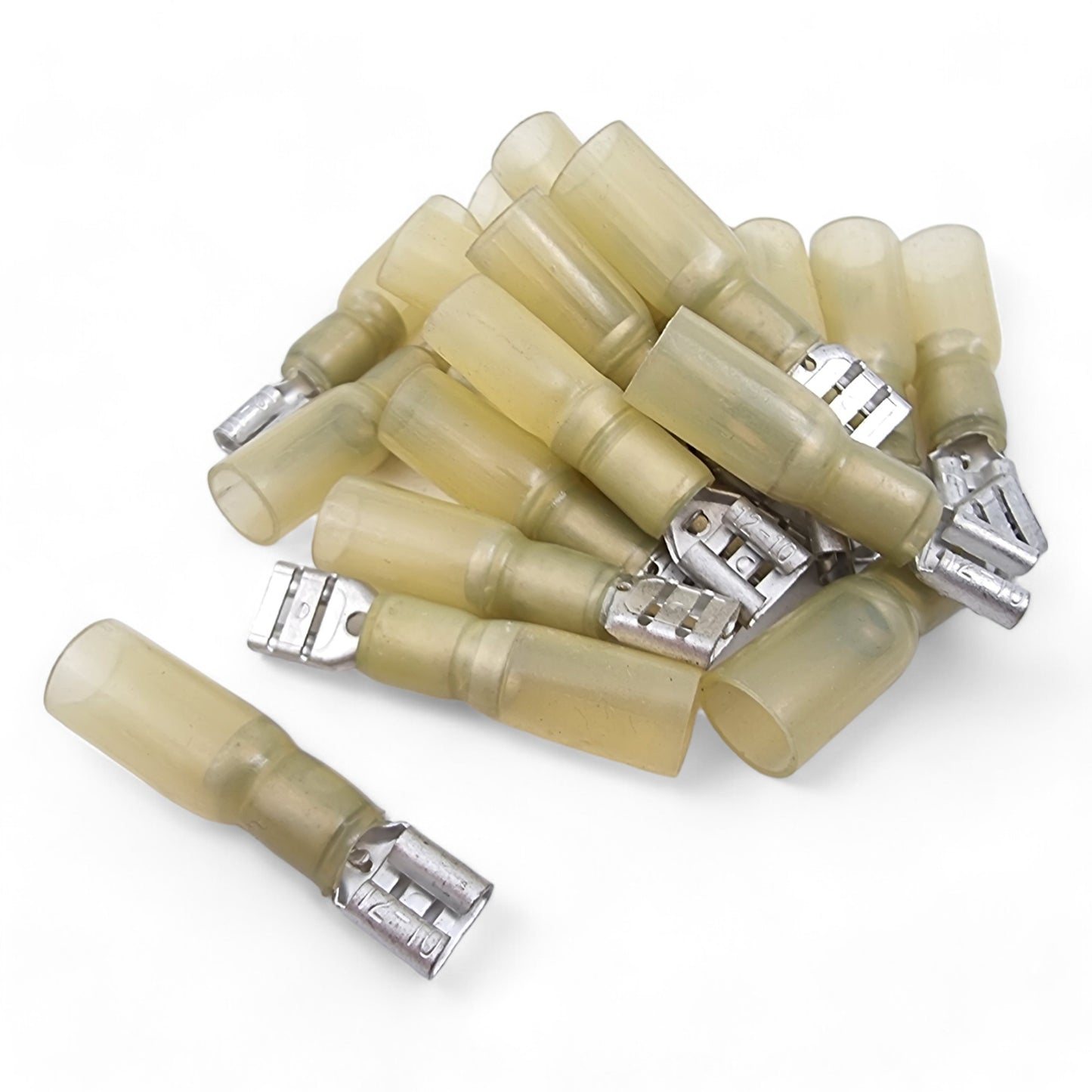

Yellow - 4.0-6.0mm²

Tab size
6.3mm x 0.8mm

Material
Tin plated brass contact with copper barrel, polyethylene heatshrink insulation with hot melt adhesive lining

Shrink temperature
125°C to 180°C, using a heat gun

Operating temperature
-45°C to +125°C, 600V max

Applications
Switches, relays, lights, horns and sensors on vehicles, trailers and boats, plus appliances and machinery with 6.3mm tabs.

Also known as heatshrink spade connectors, waterproof female spades, sealed spade terminals or marine spade connectors.

Supplied in packs of 10, 25 or 100. For a fully covered spade, see our fully insulated heatshrink spades.
