Thin Wall Single Core Cable – 1.0mm² 16.5A Auto & Marine Wire

Thin-wall single core cable for 12V and 24V automotive and marine wiring — high-flex, multi-strand construction with reduced insulation thickness, so more circuits fit into a wiring loom without adding weight or bulk.

Specification
Conductor: 1.0mm² (32/0.20mm)
Conductor material: multi-strand copper
Current rating: 16.5A
Voltage rating: 12V and 24V
Standard: manufactured to BS6862
Temperature range: -30°C to +70°C
Resistance: excellent resistance to oil, petrol, diluted acids and abrasion
RoHS and REACH compliant

Uses
General 12V/24V vehicle wiring, including side lamps, tail lamps, interior and map lamps, number plate and reversing lamps, stereos, alarms, aerials, screen wash motors and air horns. Also suited to marine wiring and general auxiliary circuits.

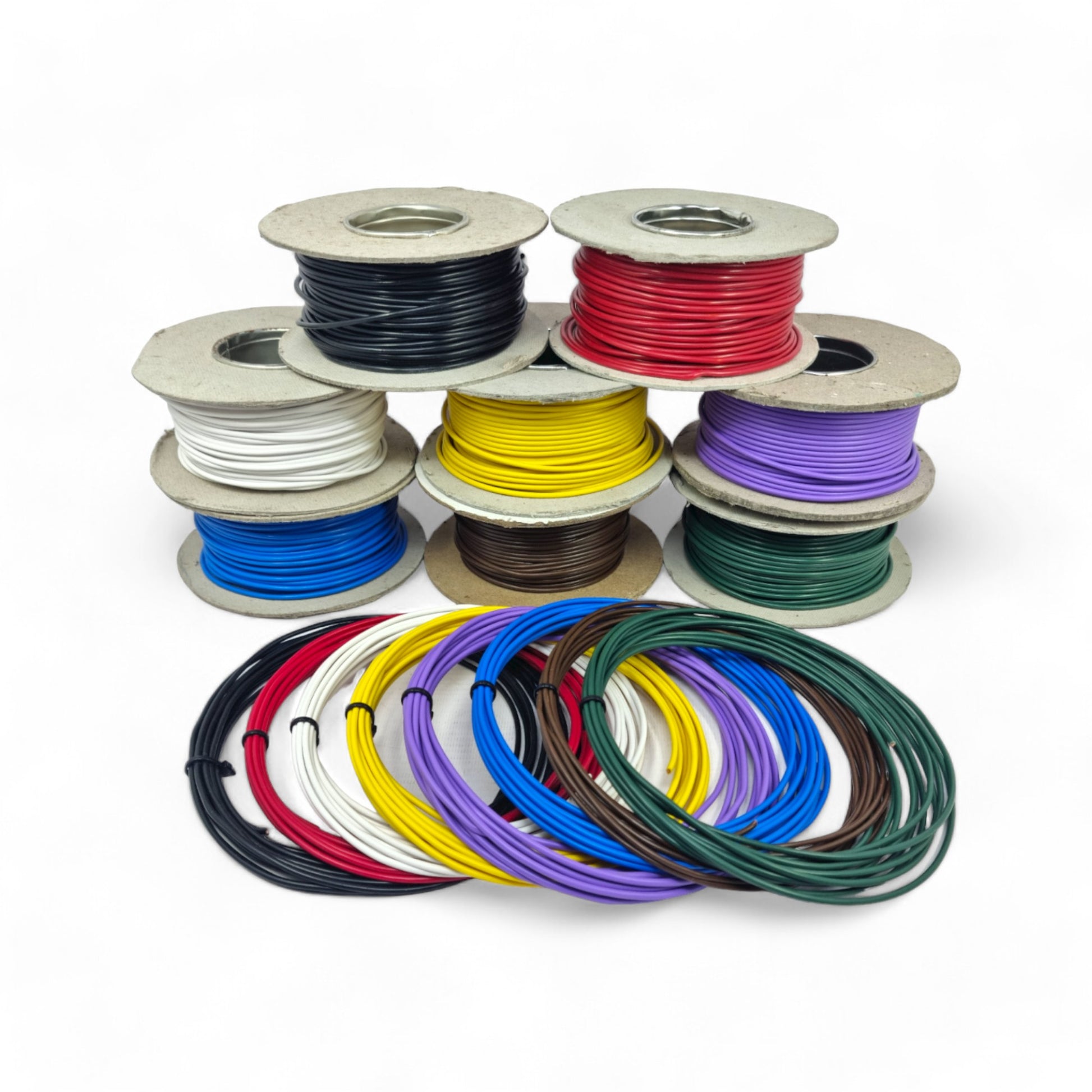

Available in black, red, yellow, purple, green, white, blue and brown — choose your colour above.

Supplied cut to length — choose 5m, 10m or a 50m reel above.

Also known as thin wall auto cable, single core automotive cable or thin wall single core wire.
