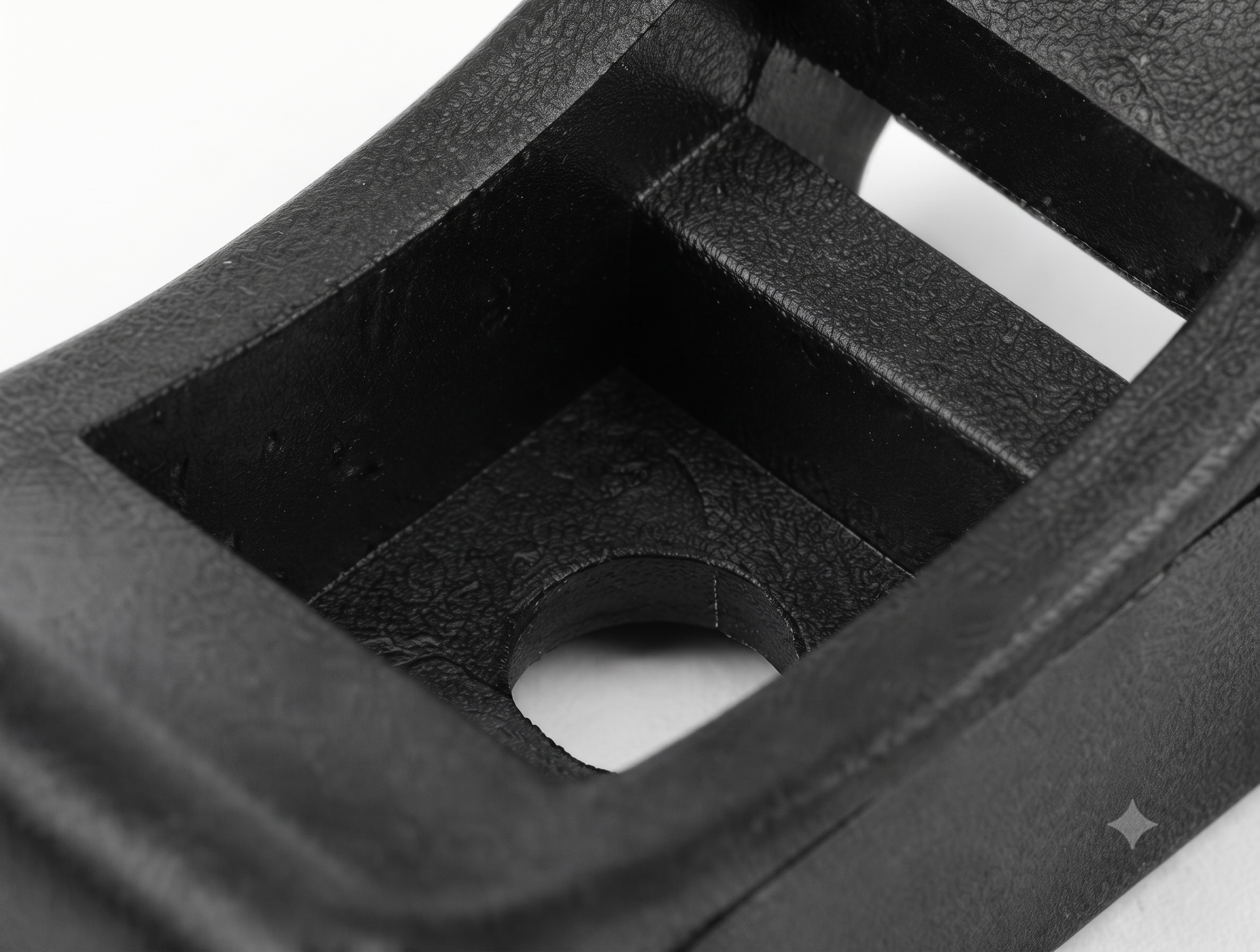

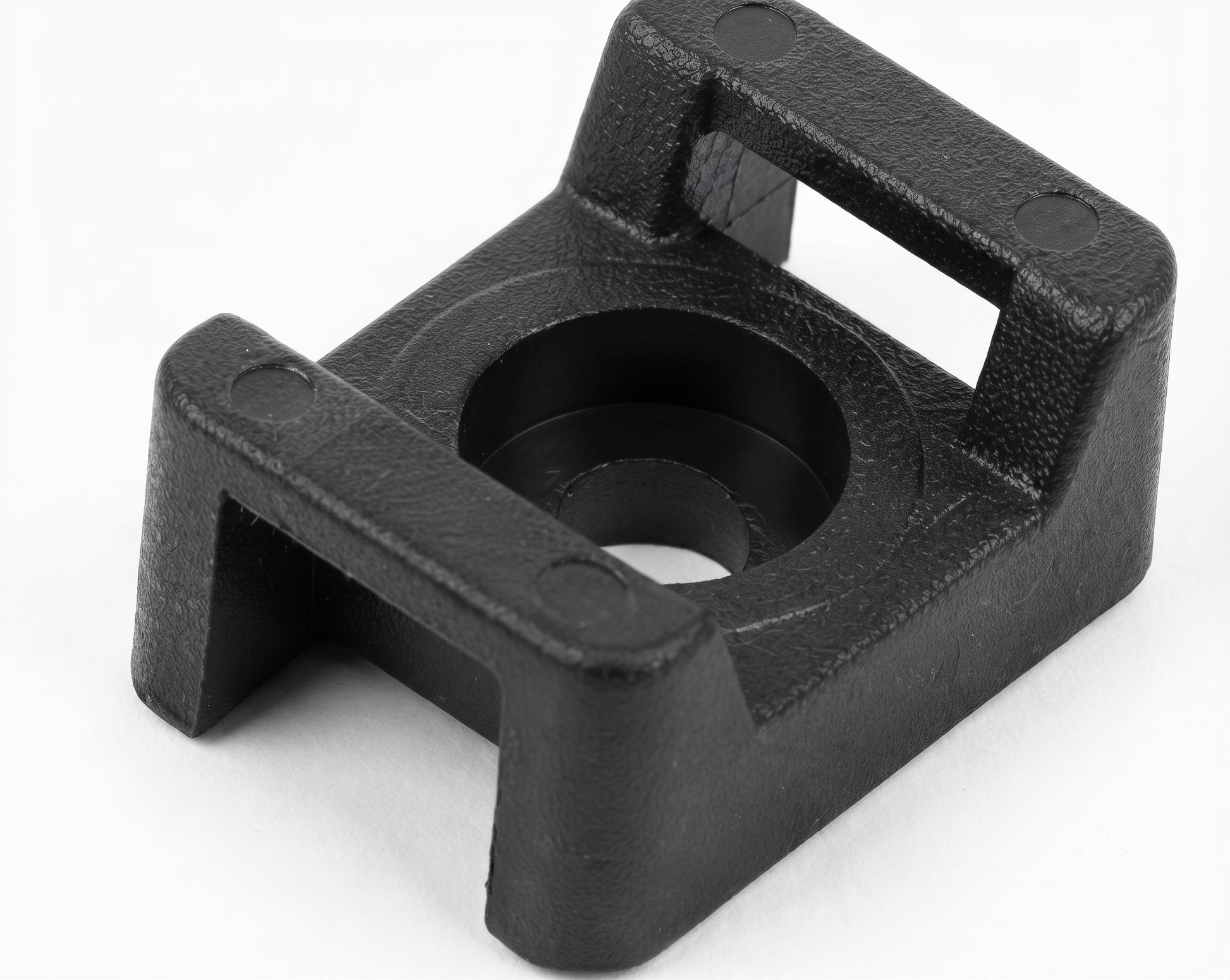

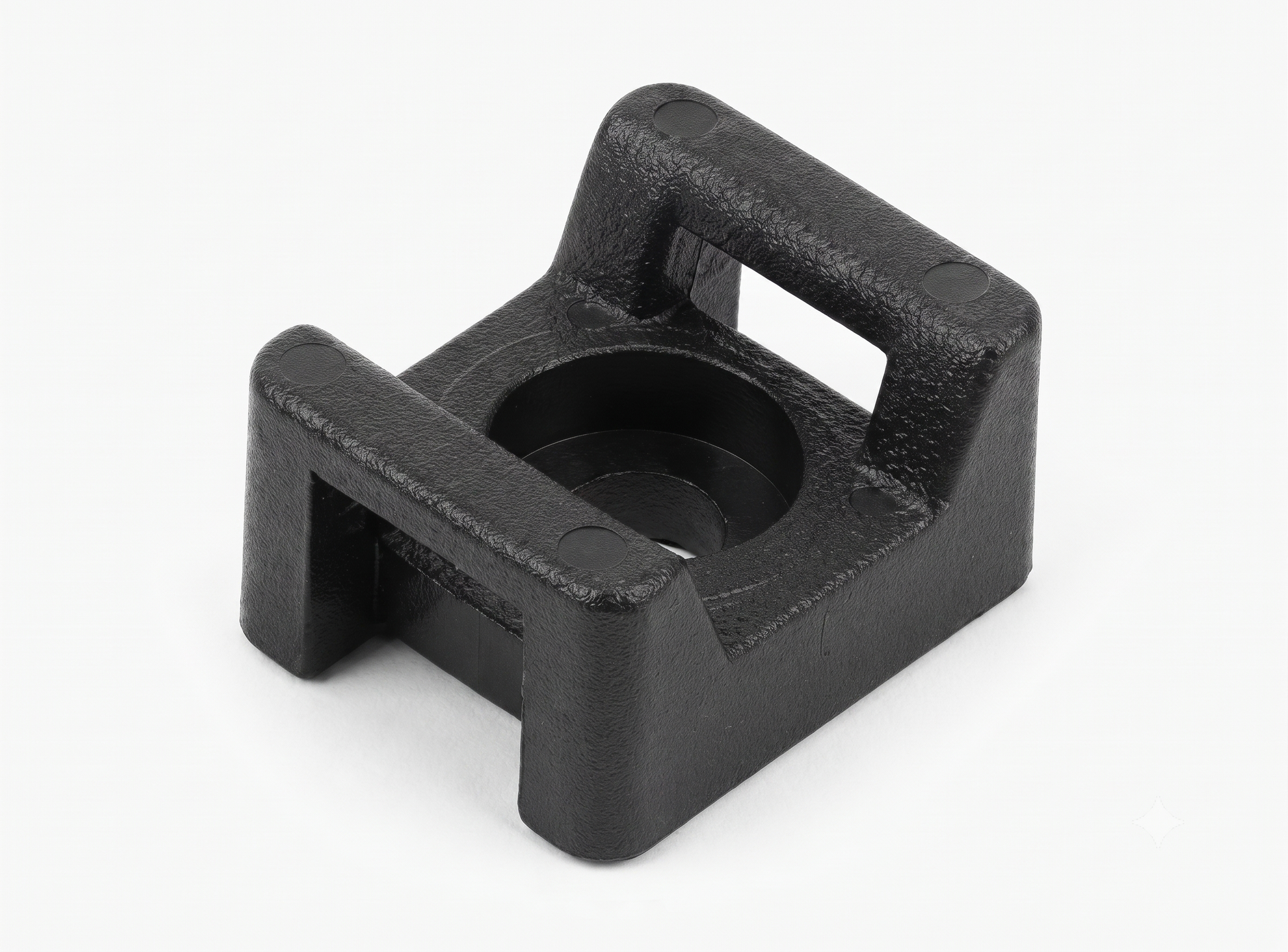

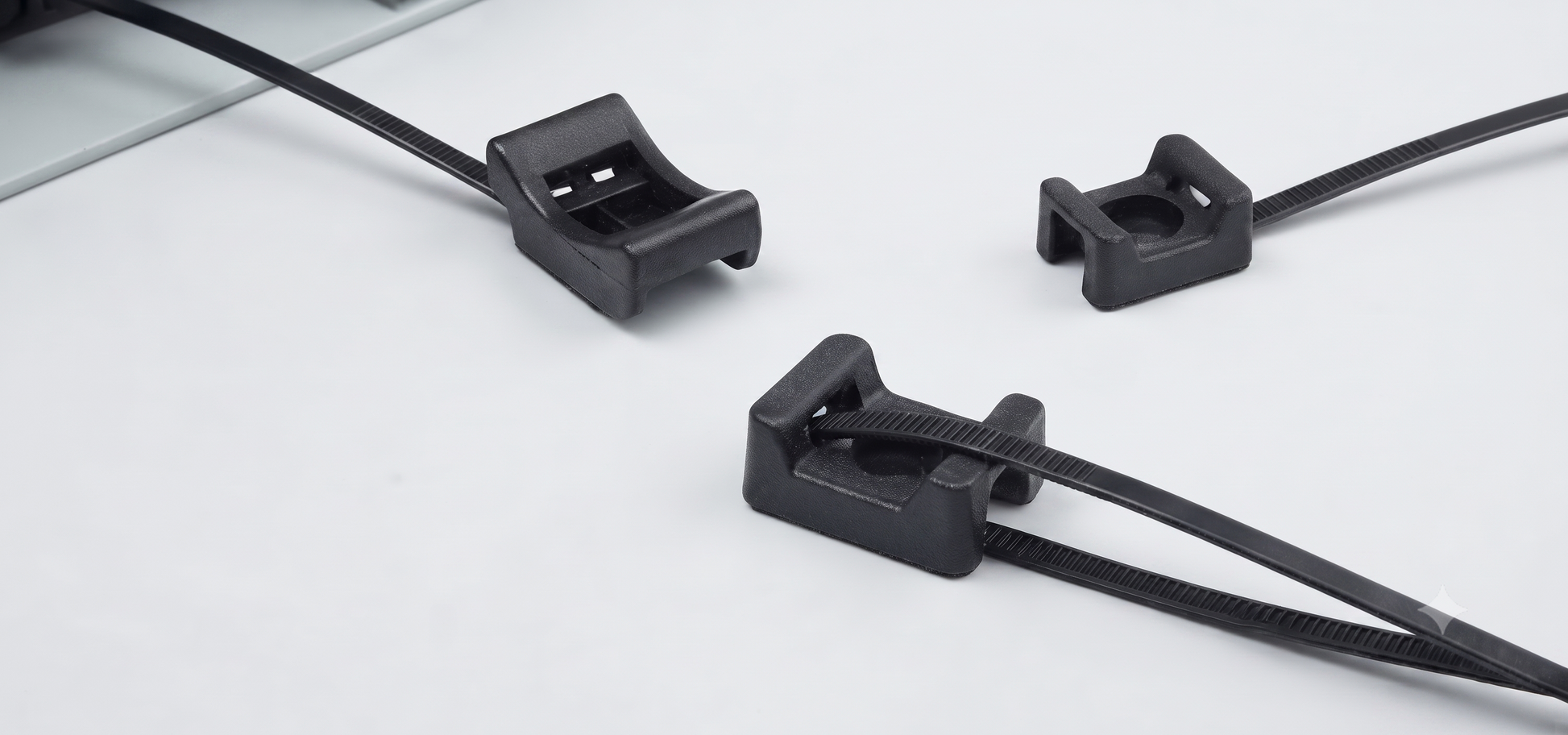

Screw mount cable tie bases (also called saddle or cradle mounts) that give a cable tie a firm anchor point on any surface you can screw into. Fix the saddle down through the central hole, thread the tie through the head and over the bundle, and pull tight. The saddle shape holds wire bundles, tubing and pipe runs steady, making it a stronger, more permanent alternative to adhesive mounts.
Material Nylon 66, UL 94V-2

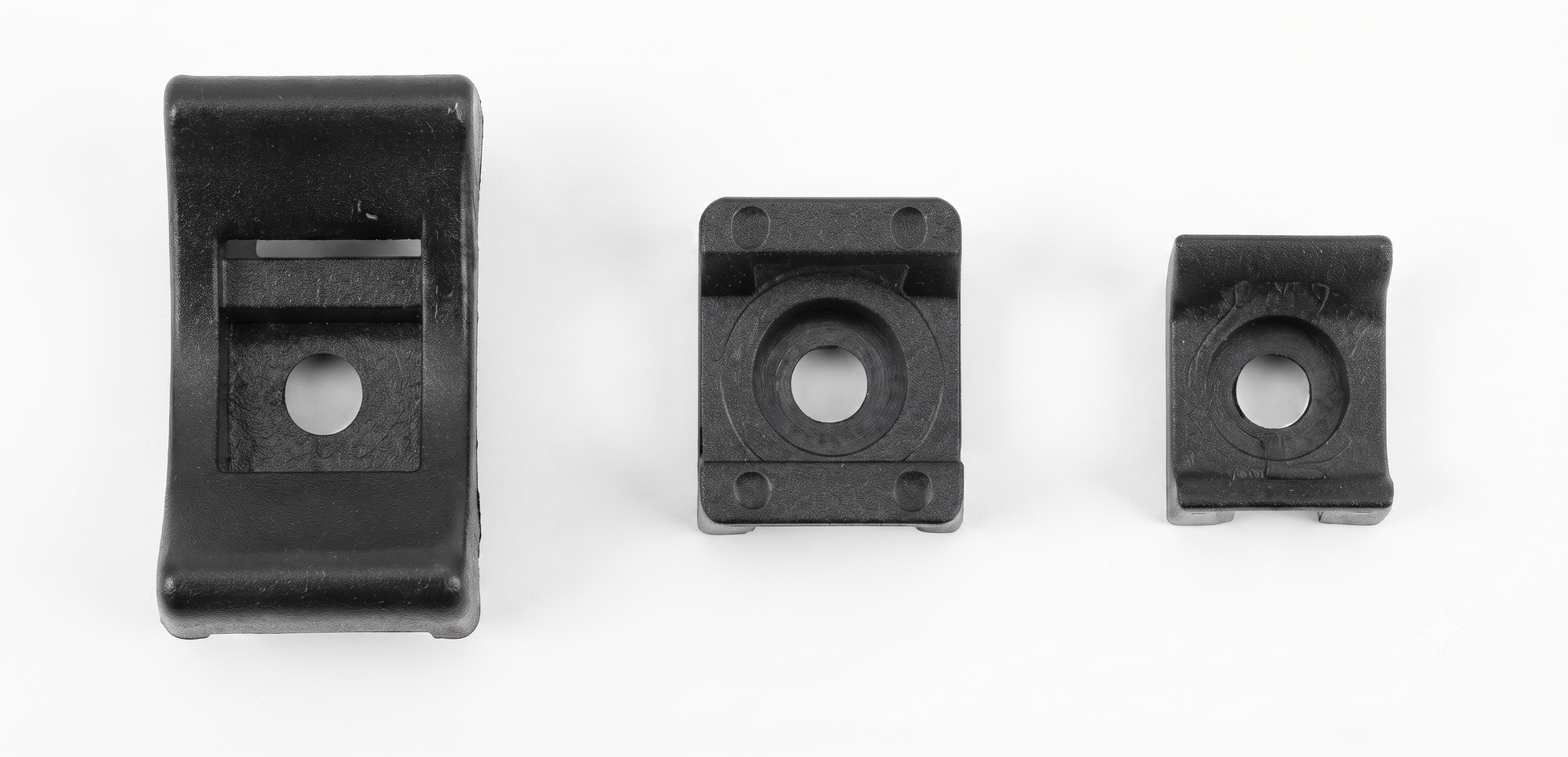

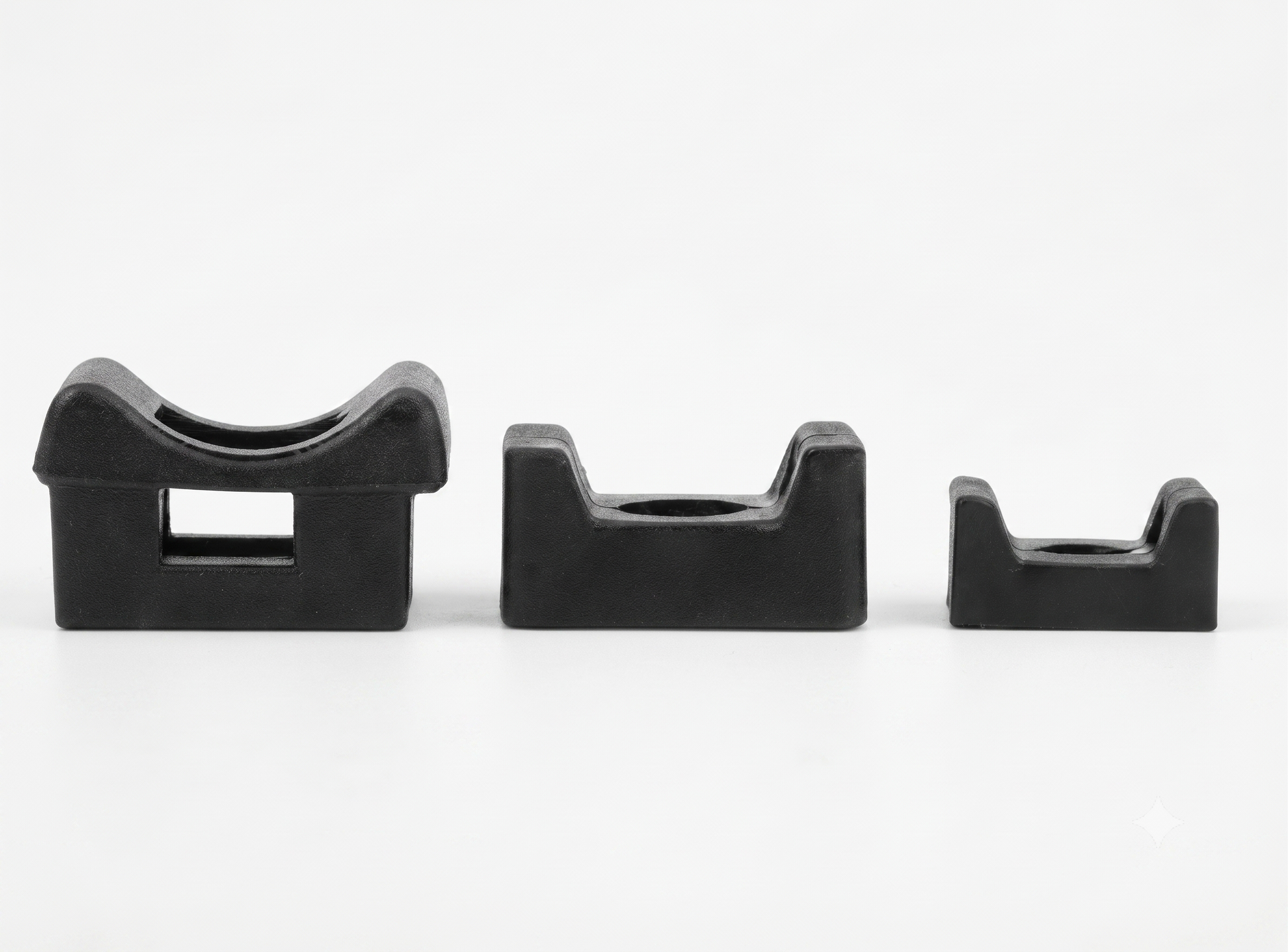

Size - Max tie width - Screw hole Small 18 x 13 x 8.2mm - 5.0mm - 4mm hole Medium 22 x 16 x 9.5mm - 9.5mm - 5mm hole Large 40 x 18.5 x 16.5mm - 12.7mm - 6mm hole (black only)
Temperature range -40°C to +85°C
Applications Cable and wire management in electrical and control panels, trunking, AV and flight-case builds, IT racks, vehicles, and across walls or concrete, plus holding tubing, conduit and pipe with a tie over the top.
Also known as cable tie saddle mounts, screw mount cable tie bases, cradle mounts or cable tie holders.
Supplied in packs of 10, 25, 100 or 1000. For bases that stick on with no drilling, see our self-adhesive cable tie mounts.
