Thin Wall Single Core Cable – 2.0mm² 25A Auto & Marine Wire

Thin-wall single core cable for 12V and 24V automotive and marine wiring — high-flex, multi-strand construction with reduced insulation thickness, so more circuits fit into a wiring loom without adding weight or bulk.

Specification
Conductor: 2.0mm² (28/0.30mm)
Conductor material: multi-strand copper
Current rating: 25A [confirm against datasheet — supplier lists 25A]
Voltage rating: 12V and 24V
Standard: manufactured to BS6862
Temperature range: -30°C to +70°C
Resistance: excellent resistance to oil, petrol, diluted acids and abrasion
RoHS and REACH compliant

Uses
General 12V/24V vehicle wiring, including side lamps, tail lamps, interior and map lamps, number plate and reversing lamps, stereos, alarms, aerials, screen wash motors and air horns. Suits slightly heavier-duty circuits than the 1.0mm² size where a bit more current headroom is needed. Also suited to marine wiring and general auxiliary circuits.

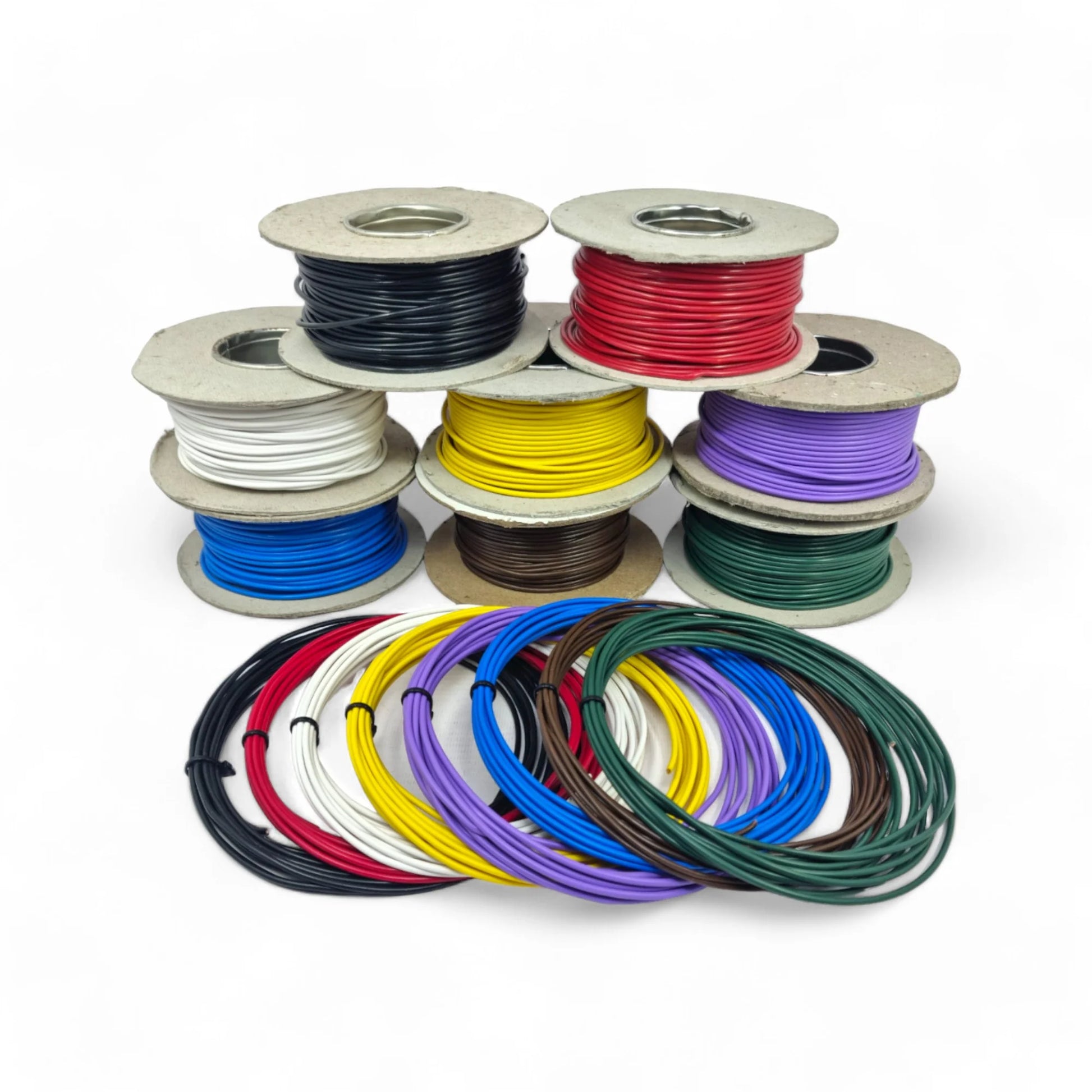

Available in black, red, yellow, purple, green, white, blue and brown — choose your colour above.

Supplied cut to length — choose 5m, 10m or a 50m reel above.

Also known as thin wall auto cable, single core automotive cable or thin wall single core wire.
