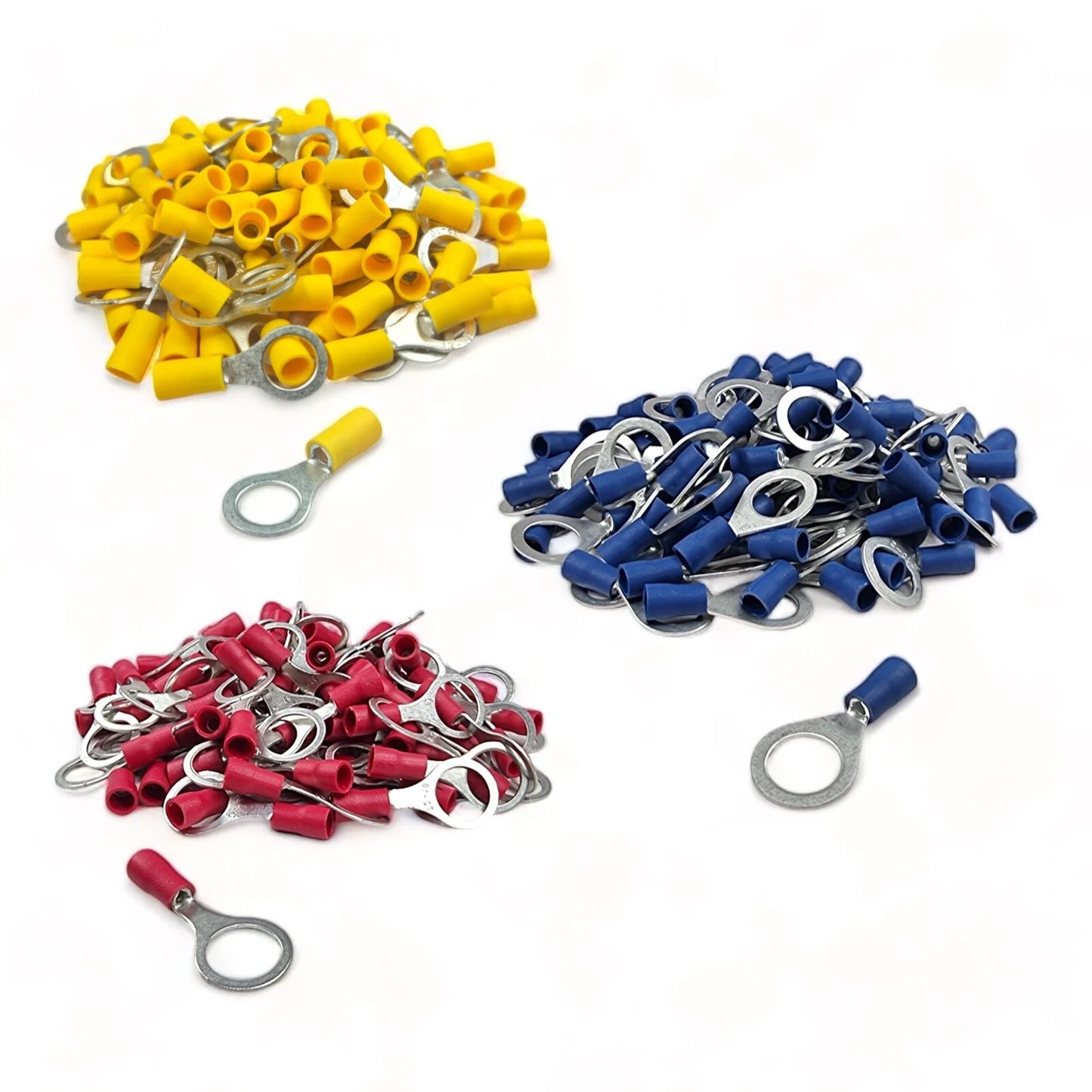

Insulated ring terminals give a secure termination onto a stud or bolt that won't slip off if the nut loosens. The colour-coded insulated barrel matches the wire size and protects the crimp.
Colour - Wire size - Max current
Red - 0.5-1.5mm² - 19A
Blue - 1.5-2.5mm² - 27A
Yellow - 4.0-6.0mm² - 48A
Hole size - Fits
3.2mm - M3
3.7mm - M3.5
4.3mm - M4
5.3mm - M5
6.4mm - M6
8.4mm - M8
10.5mm - M10
13.0mm - M12
Yellow is available from 3.7mm.
Material
Tin plated copper, vinyl insulation
Rating
-10°C to +75°C, 600V max
Applications
Earth and battery connections, terminal studs, fuse boxes and distribution blocks, and vehicle, marine and panel wiring.
Also known as ring connectors, eyelet terminals, crimp rings or ring lugs.
Supplied in packs of 20, 50, 100, 500 or 1000. For a waterproof version, see our heatshrink ring terminals.
