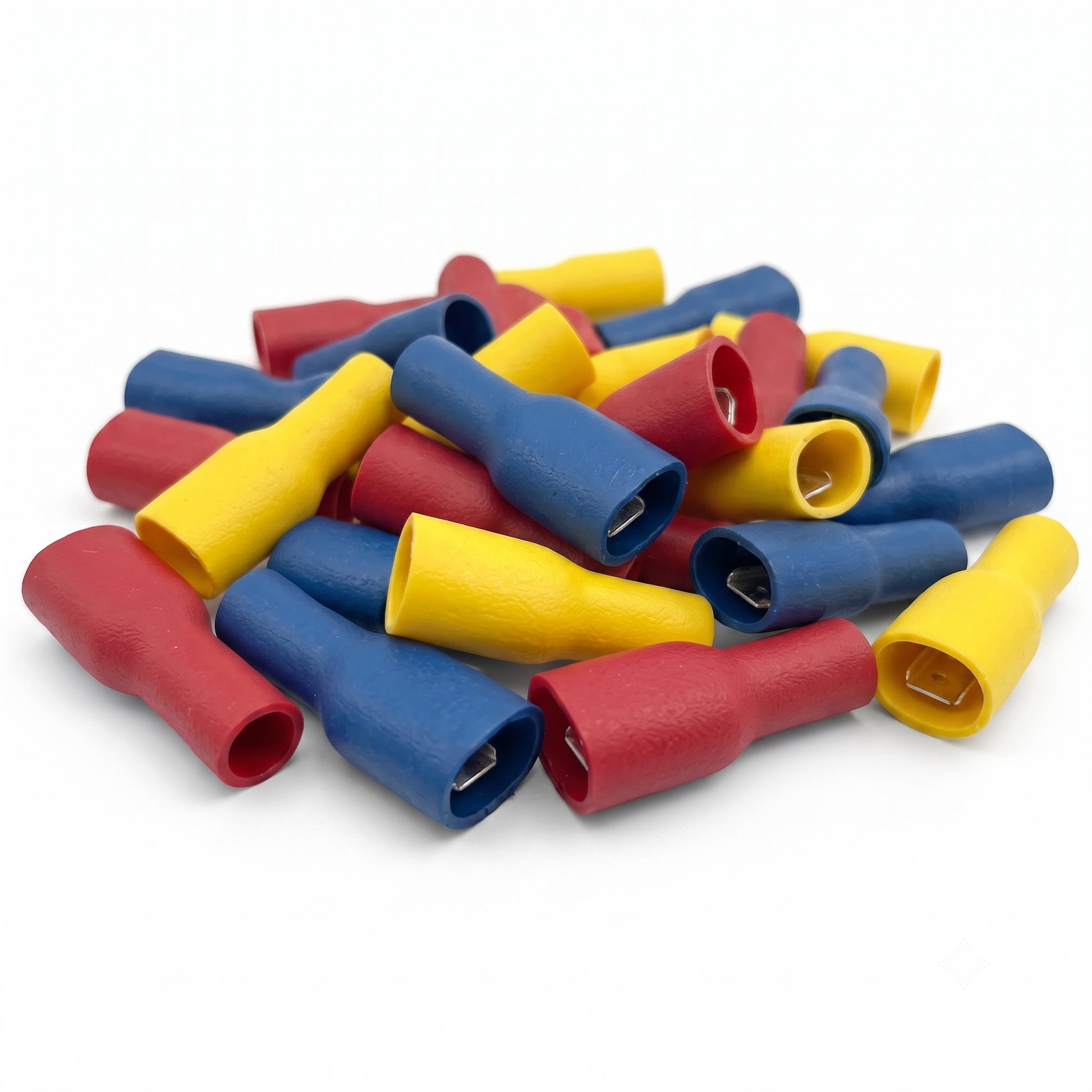

Fully Insulated Female Spade Terminals – Crimp Connectors (Red/Blue/Yellow)

Fully insulated female spade terminals — push-on crimp connectors that slide onto a matching male spade blade for a quick, safe, disconnectable joint. The full insulation guards against accidental shorts and contact with live terminals, and the anti-vibration copper insert grips the wire for a reliable connection that won't shake loose. Colour-coded by wire size in the usual red, blue and yellow.

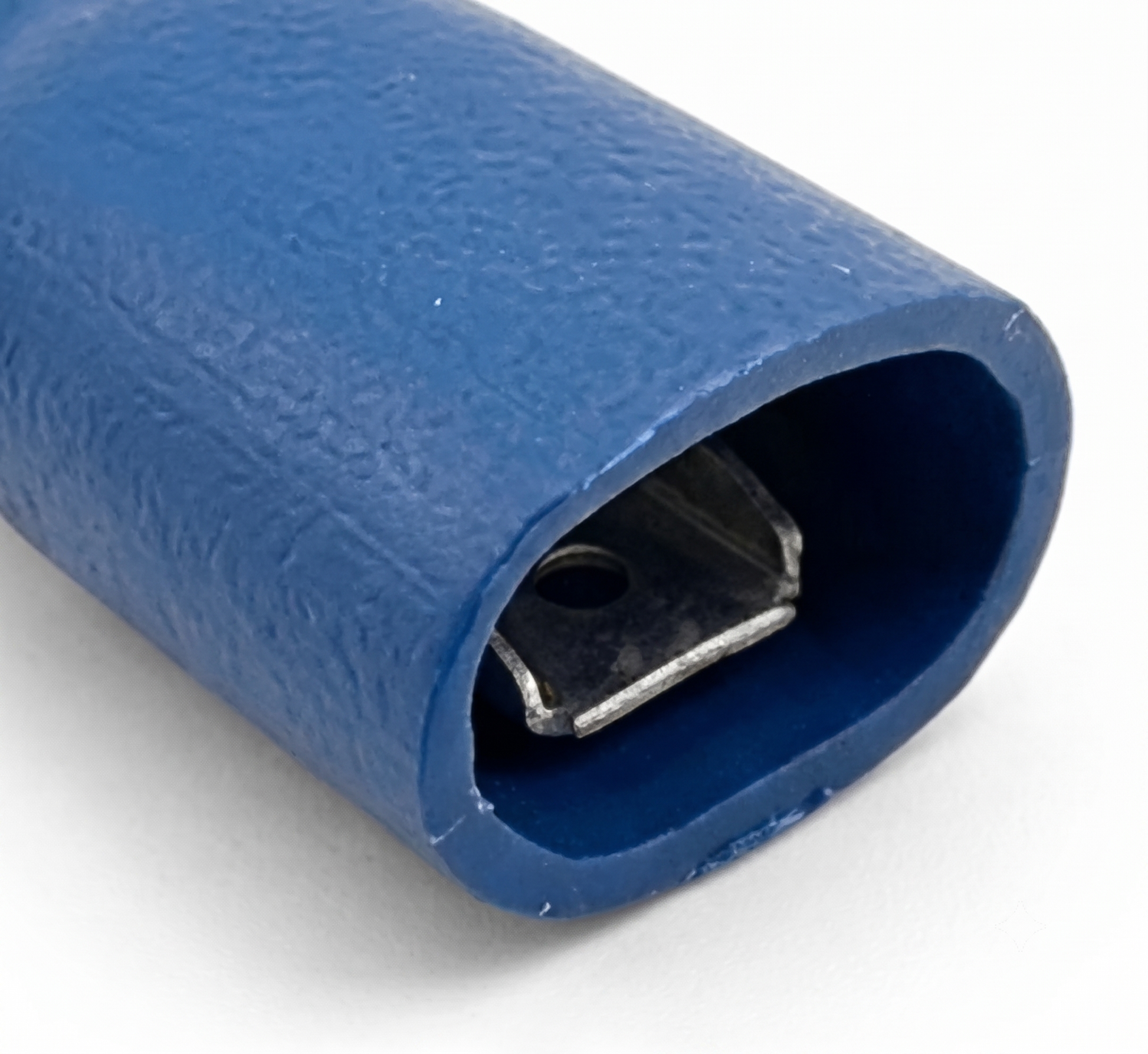

Anti-vibration copper inserts

Tab sizes available
2.8mm to 9.5mm

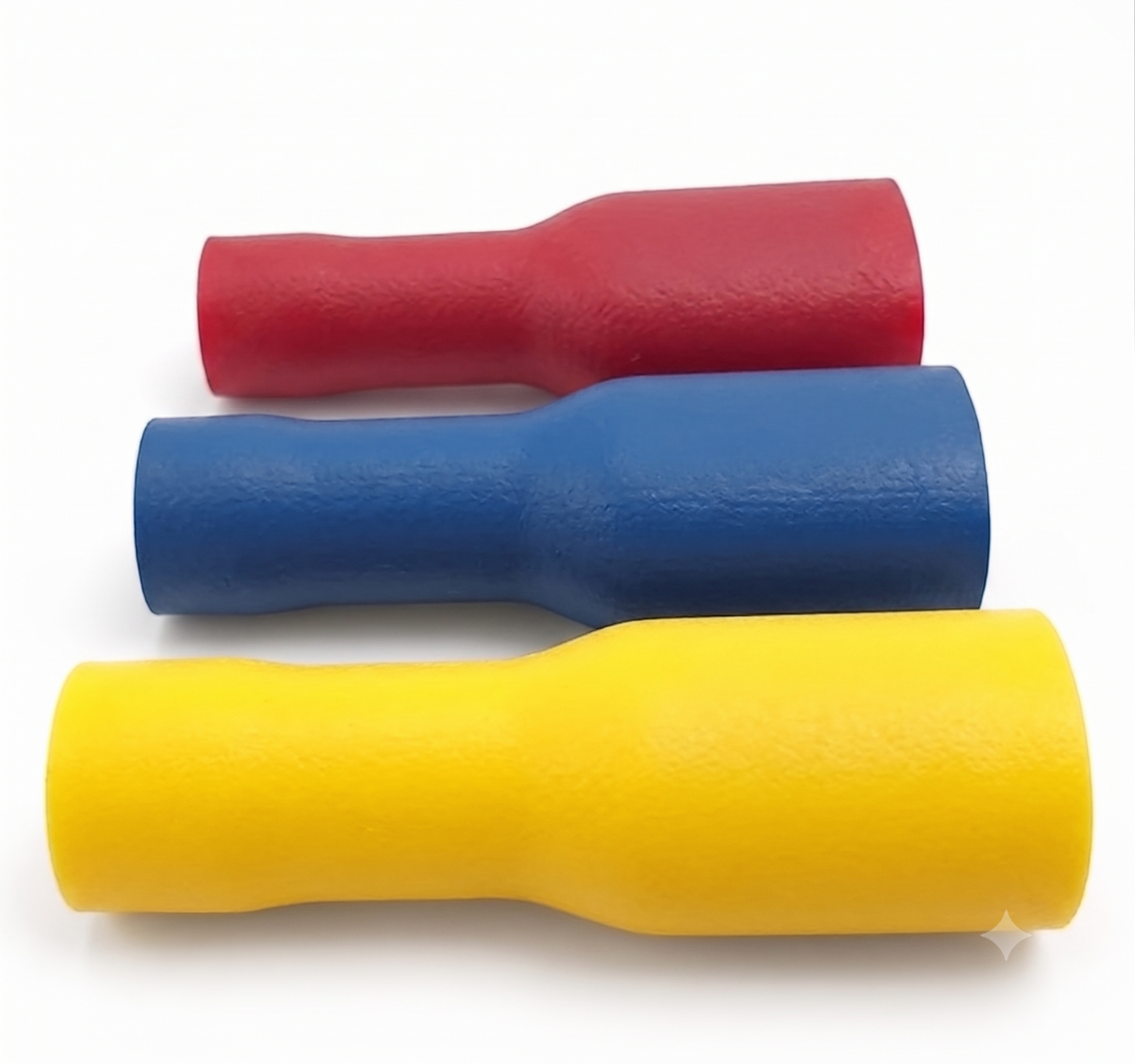

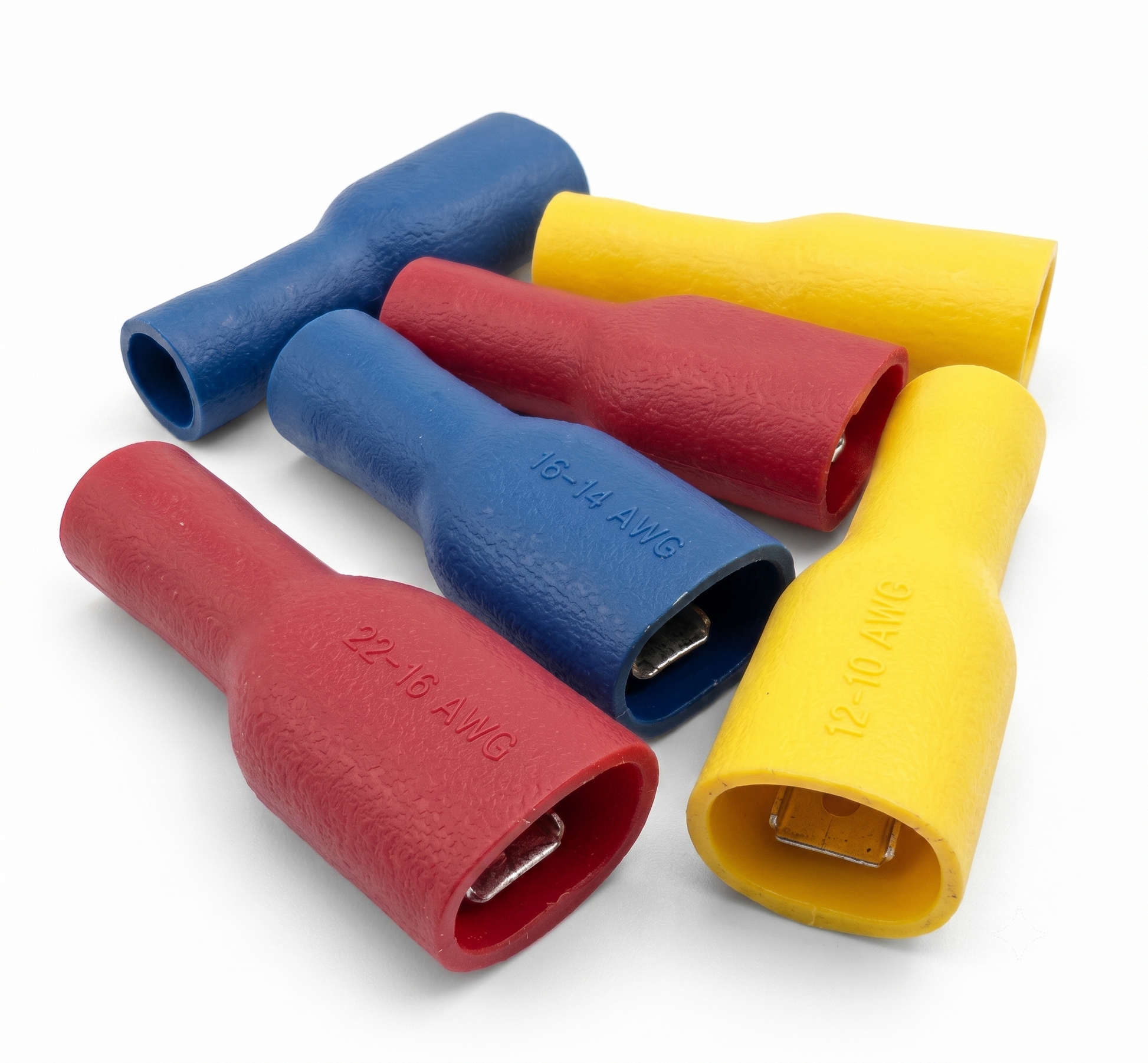

Wire size by colour
Red: 0.25mm² - 1mm² (22-18 AWG)
Blue: 1.1mm² - 2.6mm² (14-16 AWG)
Yellow: 2.5mm² - 6.5mm² (12-10 AWG)

Standards
Manufactured to BS4579 and BS4G178

Pack quantities
10, 100 and 1000

Uses
Automotive, marine and general electrical wiring — anywhere a quick push-on/pull-off connection to a spade blade is needed.

Also known as female push-on terminals, spade crimp connectors or quick disconnects.
