Heatshrink Fully Insulated Spade Terminals - Red, Blue & Yellow

Heatshrink Fully Insulated Female Spade Terminals — pre-insulated female spade terminals with an integrated heatshrink sleeve, forming a watertight crimp splice once heat is applied. Fully insulated construction gives extra coverage over the crimp barrel for added protection. Ideal for automotive, machinery, marine, home improvement, DIY and general electrical use.

Materials
Brass, tin, polyethylene & copper

Voltage rating
600V

Operating temperature
-55°C to 125°C

Minimum shrink temperature
150°C

Heat shrink ratio
1:1

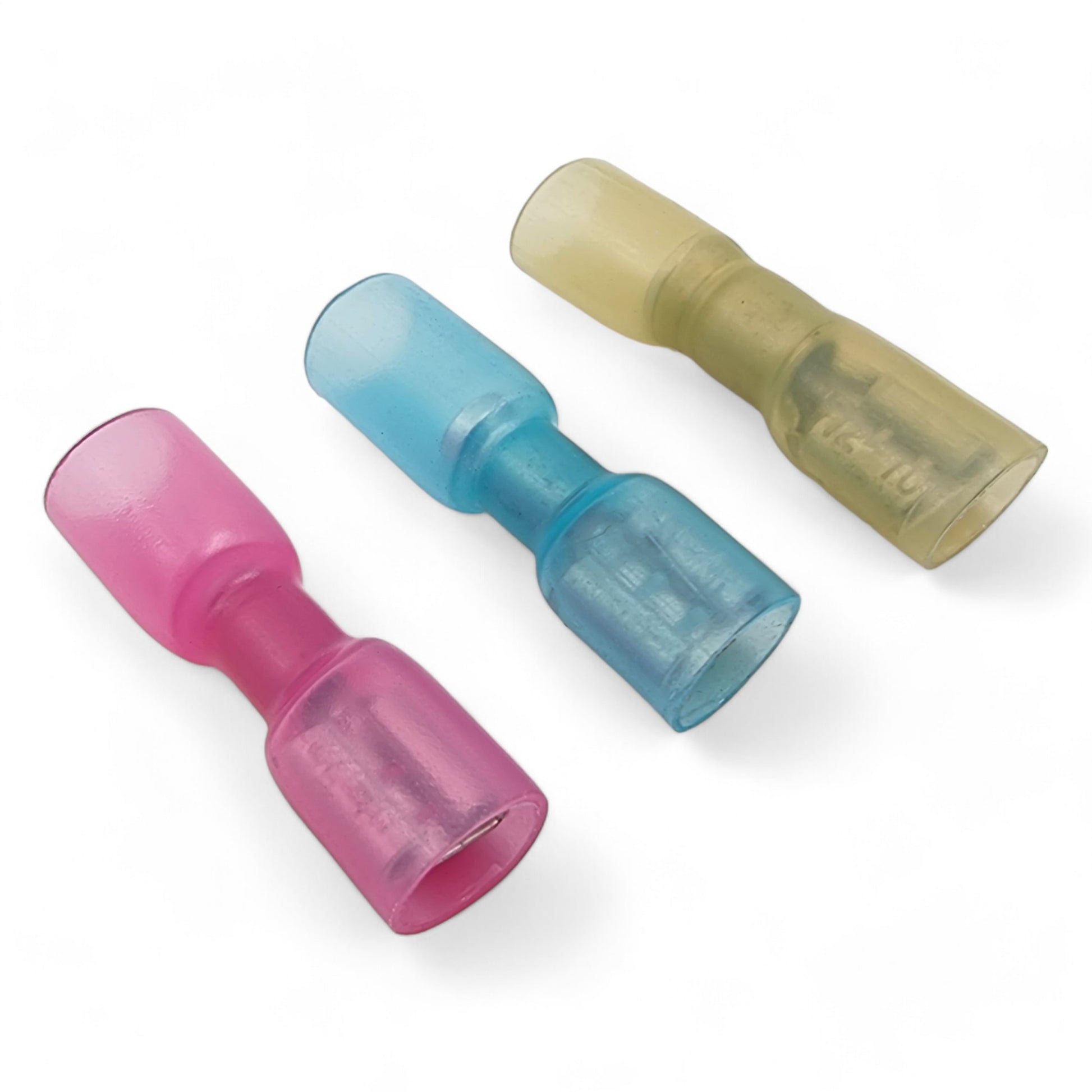

Wire gauge by colour

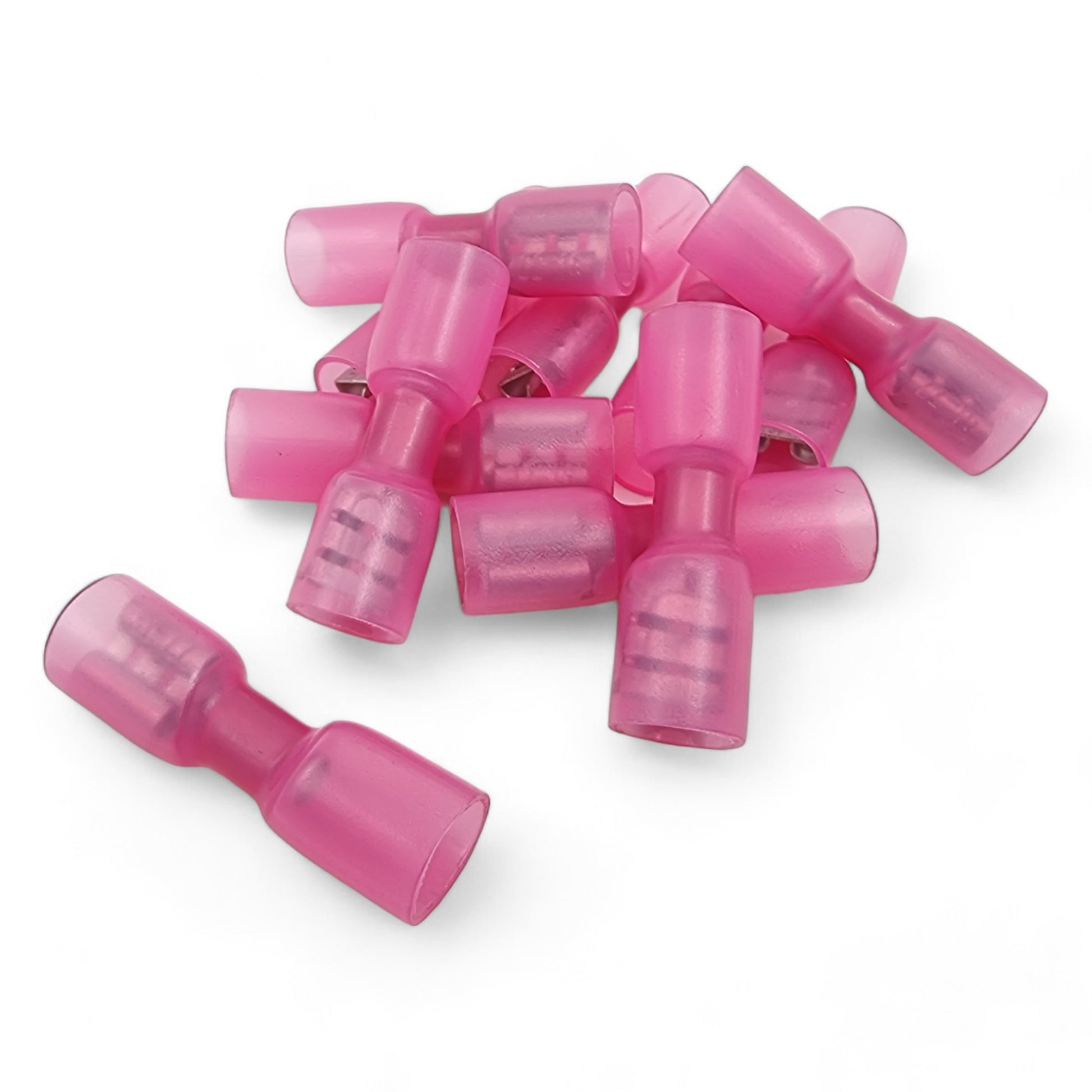

Red: 0.25-1mm² / 22-18 AWG

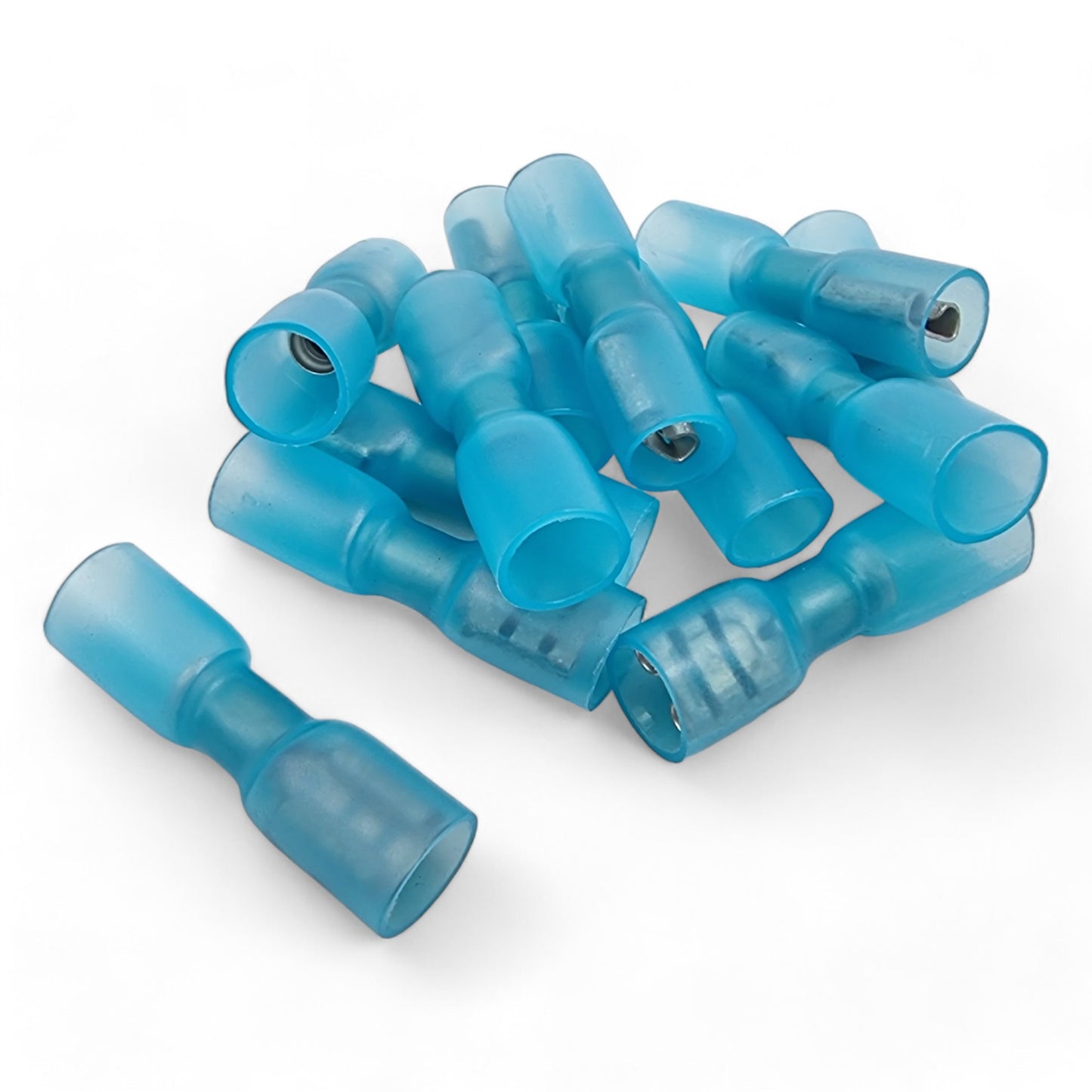

Blue: 1.1-2.6mm² / 14-16 AWG

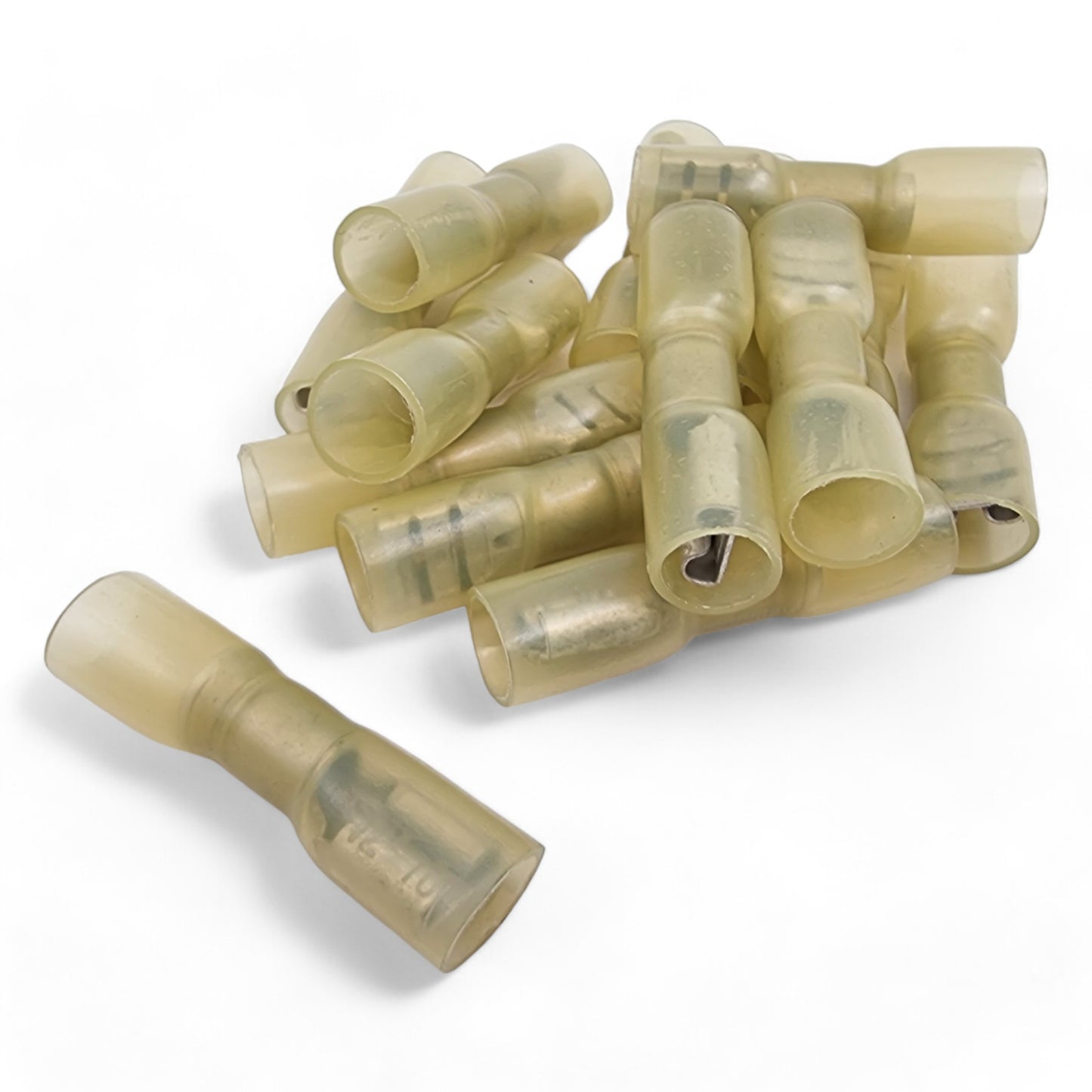

Yellow: 2.5-6.5mm² / 12-10 AWG

Standard
Manufactured to BS4579 & BS4G178

Also known as heatshrink fully insulated spade connectors, waterproof spade terminals, or insulated heat shrink spades.
