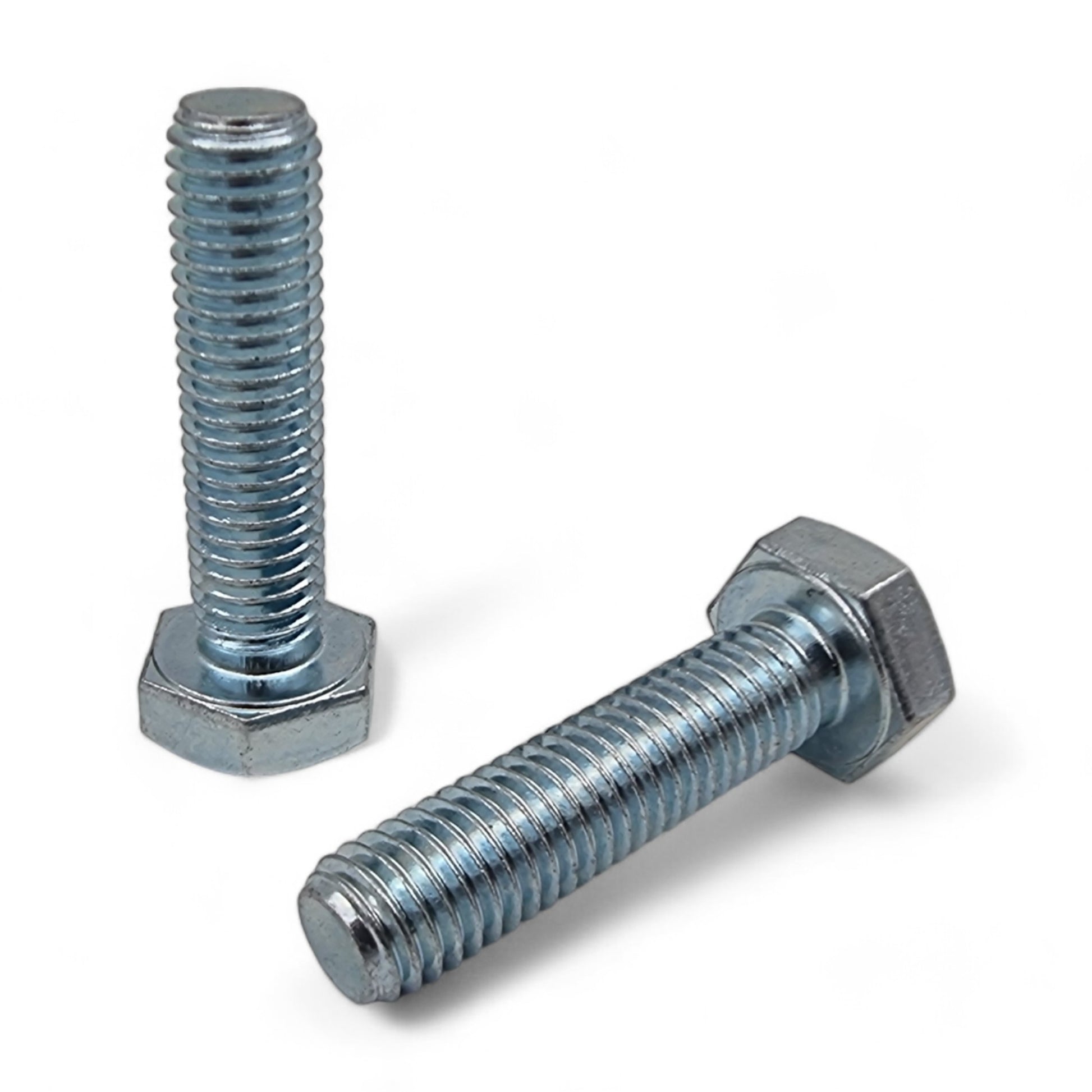

M10 Set Screws – Fully Threaded Hex Bolts, High Tensile 8.8 BZP (25–80mm)

M10 set screws — fully threaded hex-head bolts in high tensile grade 8.8 steel with a bright zinc plated finish, available in lengths from 25mm to 80mm.

Material
High tensile grade 8.8 steel

Finish
Bright zinc plated (BZP) for corrosion resistance

Head
Hexagon head — drive with a standard spanner or socket for high torque

Thread
Fully threaded, M10 x 1.5mm coarse pitch

Standard
DIN 933 (ISO 4017)

Lengths
25, 30, 35, 40, 50, 60, 75 and 80mm

Uses
General engineering, machinery, automotive and workshop assembly where a fully threaded high-tensile fixing is needed

Pair with
Matching M10 nuts and washers are available in our nuts and washers ranges

Quantities available
Choose your length and quantity above — available in packs of 10, 25, 50, 100, 200 or 1000.

Also known as M10 setscrews, fully threaded bolts, hex head bolts, hexagon set screws or DIN 933 bolts.
