Heatshrink Ring Terminals - Red, Blue & Yellow, 4.3-13.0mm

Heatshrink Ring Terminals — pre-insulated ring terminals with an integrated heatshrink sleeve, forming a watertight crimp splice once heat is applied. Ideal for automotive, machinery, marine, home improvement, DIY and general electrical use.

Sizes available
4.3mm - 13.0mm

Materials
Brass, tin, polyethylene & copper

Voltage rating
600V

Operating temperature
-55°C to 125°C

Minimum shrink temperature
150°C

Heat shrink ratio
1:1

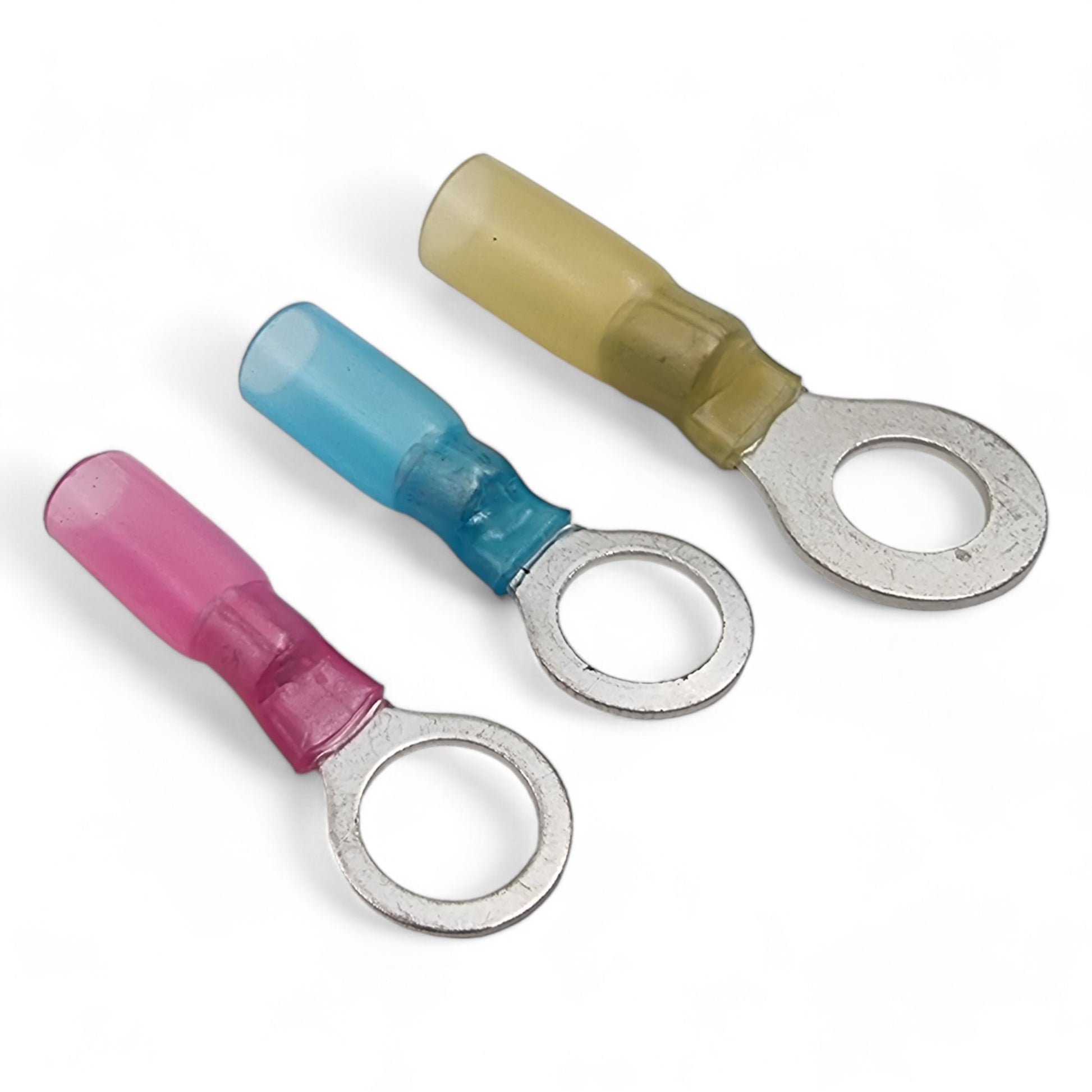

Wire gauge by colour

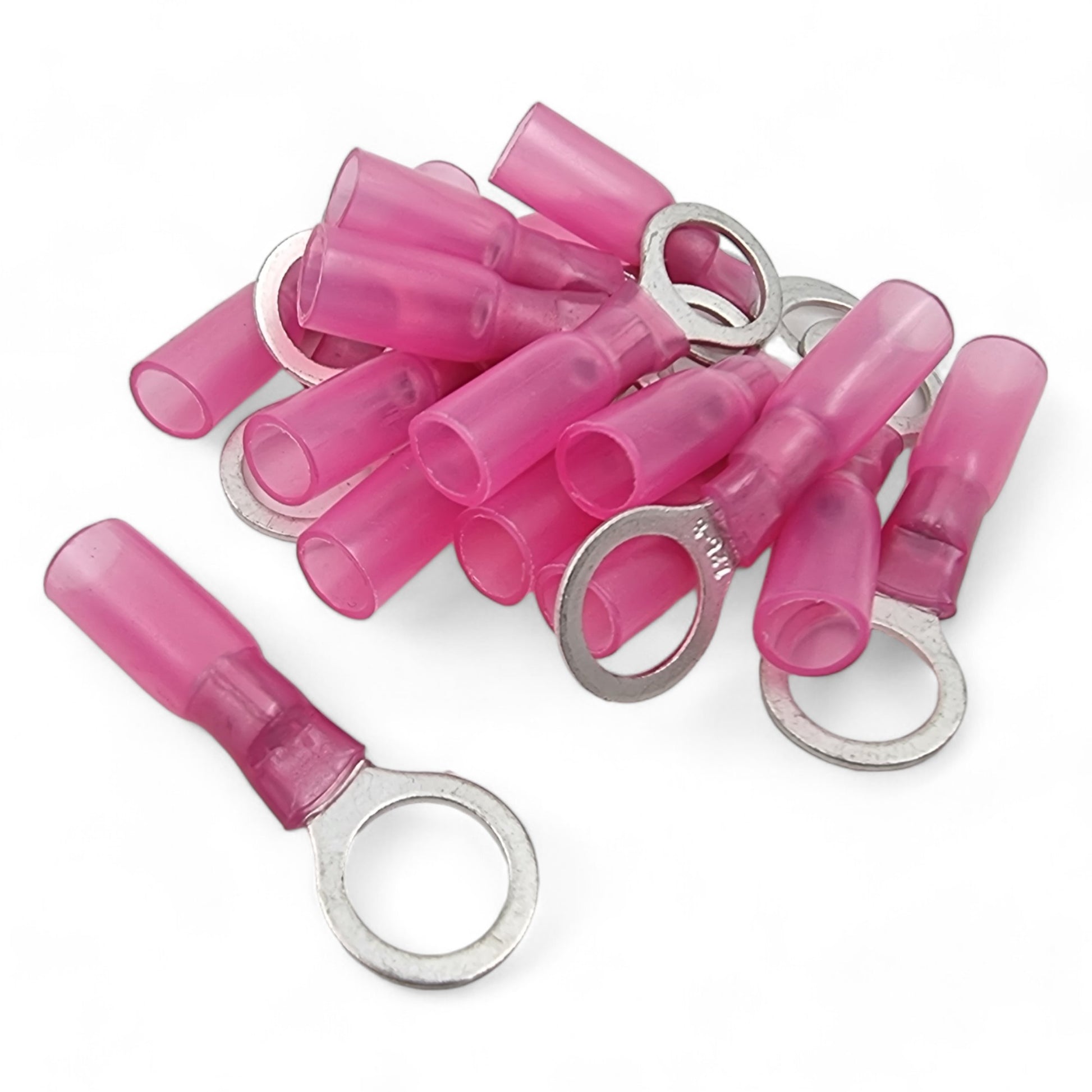

Red: 0.25-1mm² / 22-18 AWG

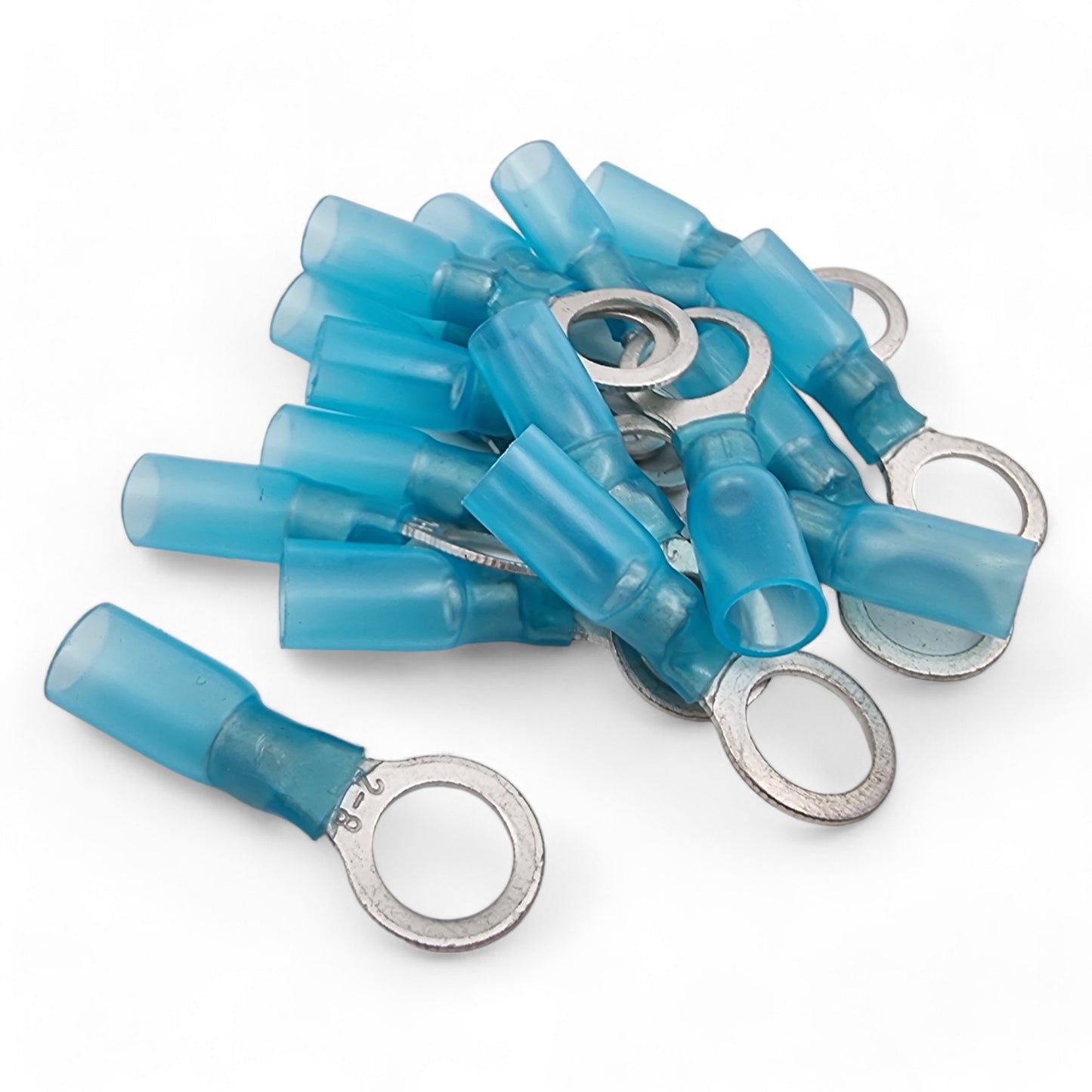

Blue: 1.1-2.6mm² / 14-16 AWG

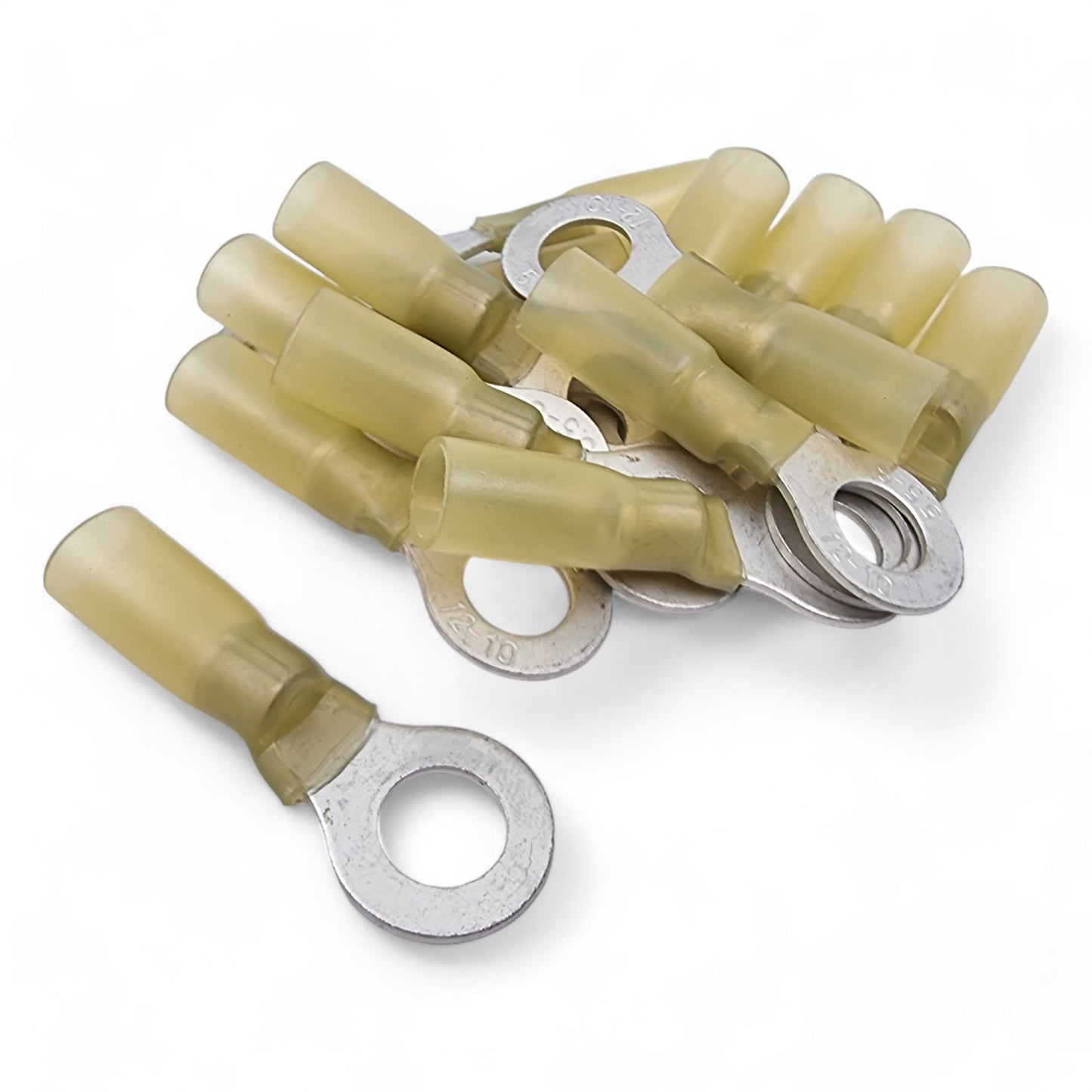

Yellow: 2.5-6.5mm² / 12-10 AWG

Standard
Manufactured to BS4579 & BS4G178

Also known as heatshrink ring connectors, waterproof ring terminals, or insulated heat shrink rings.
