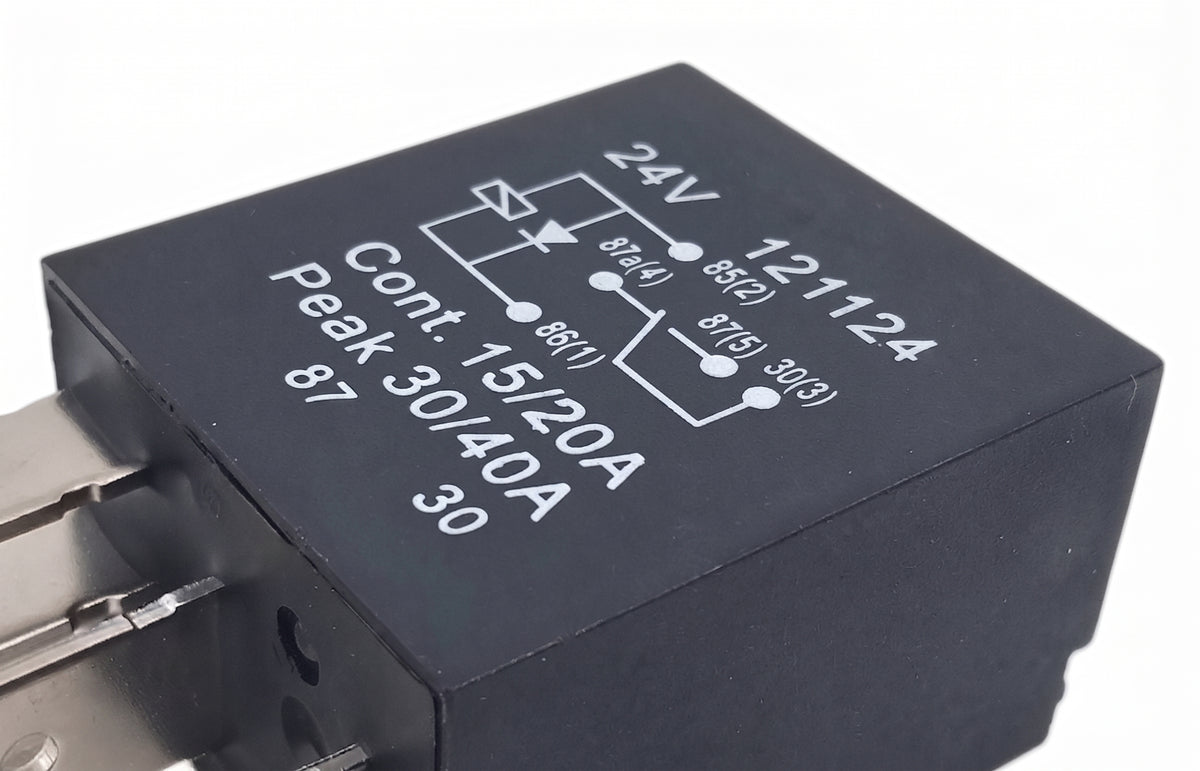

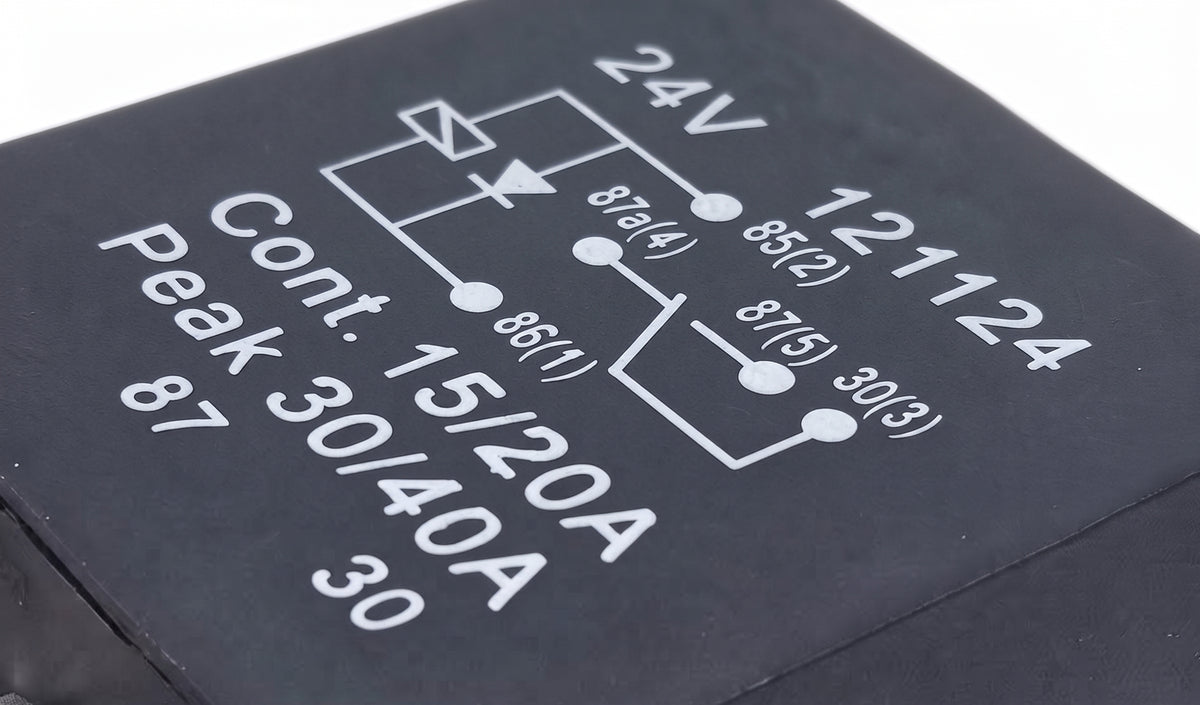

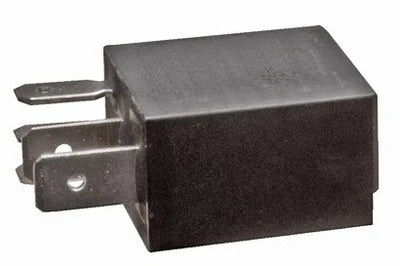

Micro Relay 5 Pin 24V 20A + Diode - Changeover, Truck, Van & Marine

Micro Relay (5 Pin, 24V, 20A, Changeover, with Diode) - a 24V 5-pin micro changeover relay with built-in diode protection, for reliable switching in commercial vehicle, marine and general 24V electrical systems. The integrated diode suppresses voltage spikes, helping to protect sensitive electronics and ECUs.

Voltage
24V DC

Current rating
Normally open: 20A continuous, 40A peak
Normally closed: 15A continuous
Switched peak: 30A

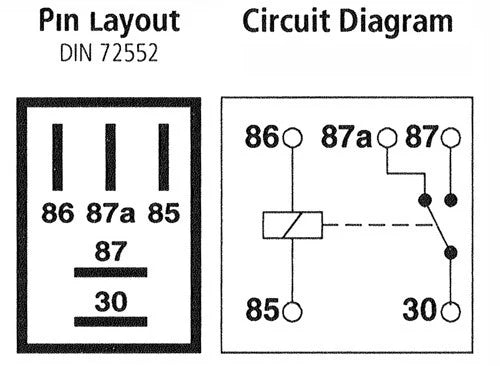

Contact type
Changeover (SPDT)

Protection
Built-in diode

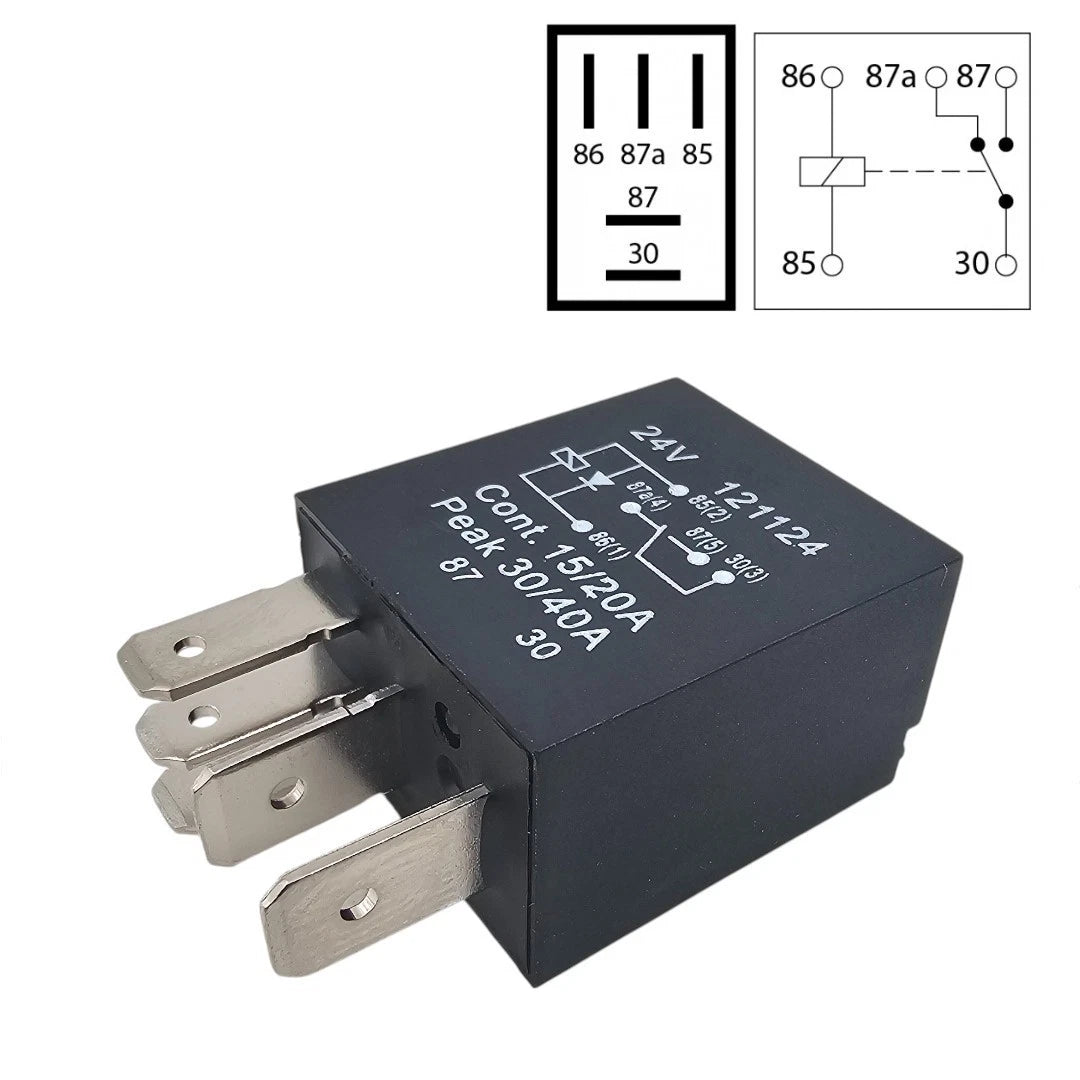

Pins
5

Terminal sizes
3 x 4.8mm
2 x 6.3mm

Mounting
No bracket

Suitable for
Trucks, vans and HGVs, buses and coaches, plant machinery, boats and marine systems, lighting, fans, pumps, horns and auxiliary 24V circuits

Also known as a mini relay, 24V diode-protected changeover relay, or 5-pin micro relay.

Supplied as 1 relay. Relay base sold separately - see our 5 Pin Micro Relay Base Holder.
