Insulated Male Tab Terminals - Crimp Spades 2.8mm to 6.3mm, Red, Blue & Yellow

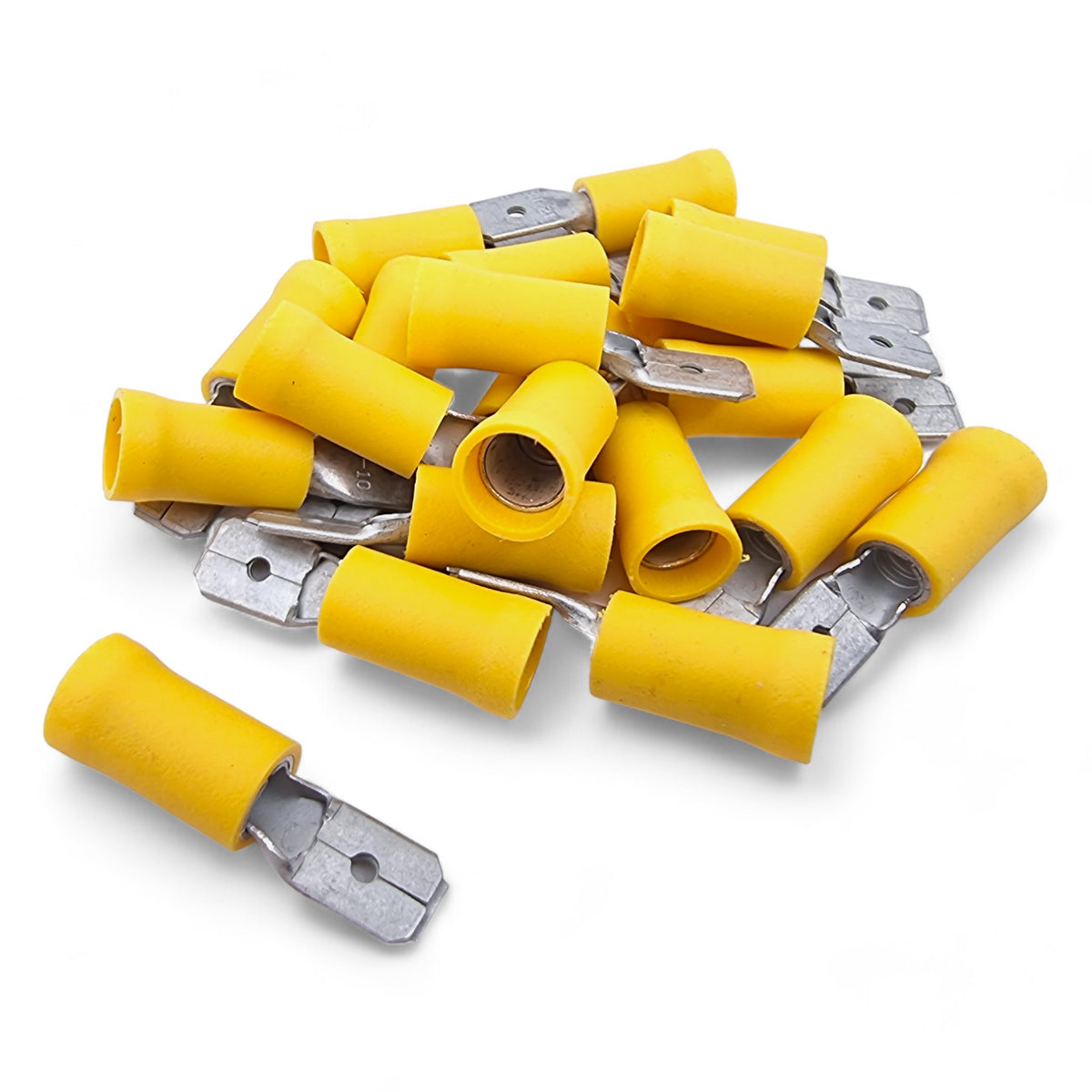

Insulated male tab terminals, a crimp blade that mates with a matching female spade to make a quick, disconnectable joint. The colour-coded insulated barrel matches the wire size and protects the crimp.

Colour - Wire size - Tab sizes
Red - 0.5-1.5mm² - 2.8mm, 4.8mm and 6.3mm
Blue - 1.5-2.5mm² - 4.8mm and 6.3mm
Yellow - 4.0-6.0mm² - 6.3mm

Material
Tin plated brass contact with copper sleeve, vinyl insulation

Rating
-10°C to +75°C, 600V max

Applications
In-line disconnects for lights and accessories, vehicle, trailer and marine wiring, and appliance and panel connections.

Also known as male spade terminals, male blade connectors, push-on tabs or male Lucar terminals.

Supplied in packs of 10, 100 or 1000. For the matching connector, see our insulated female spade terminals.
