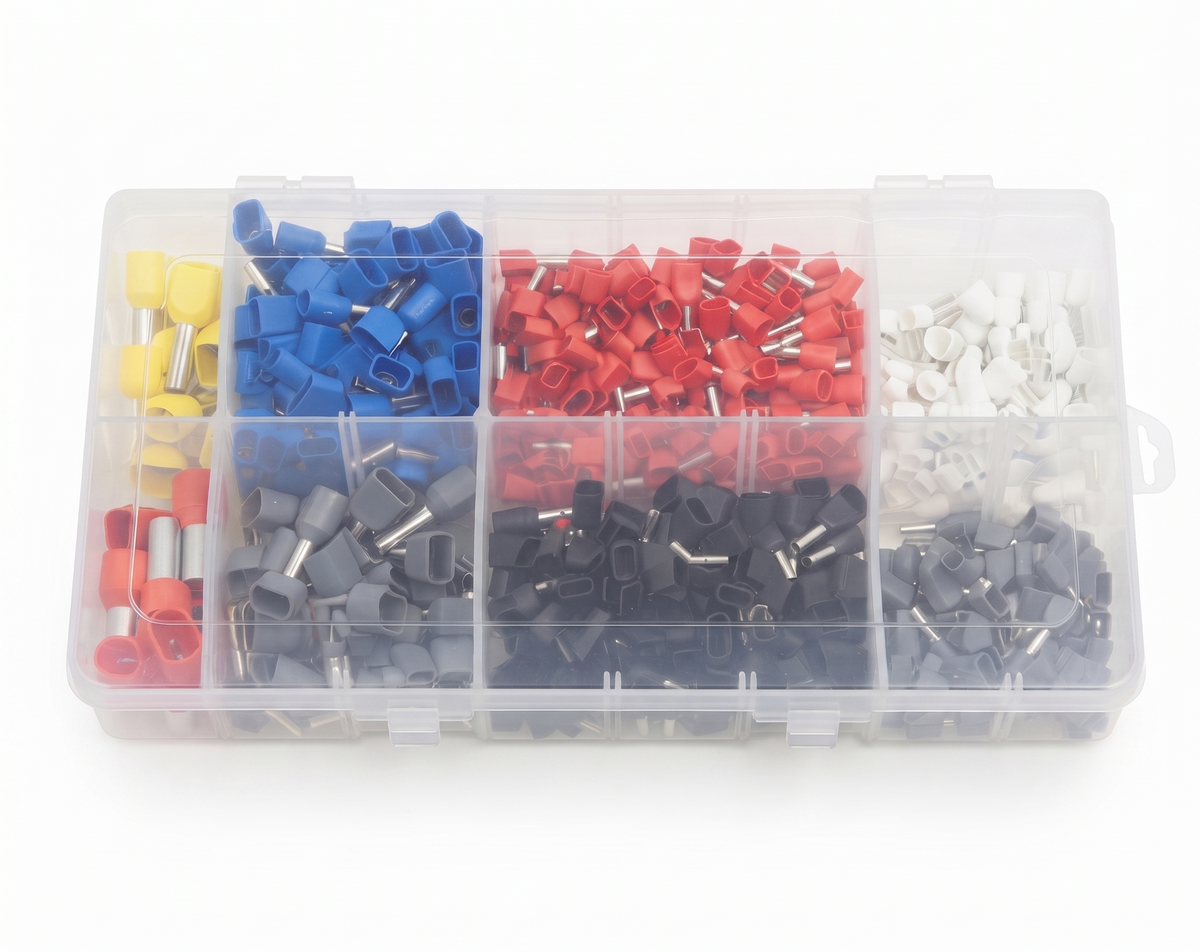

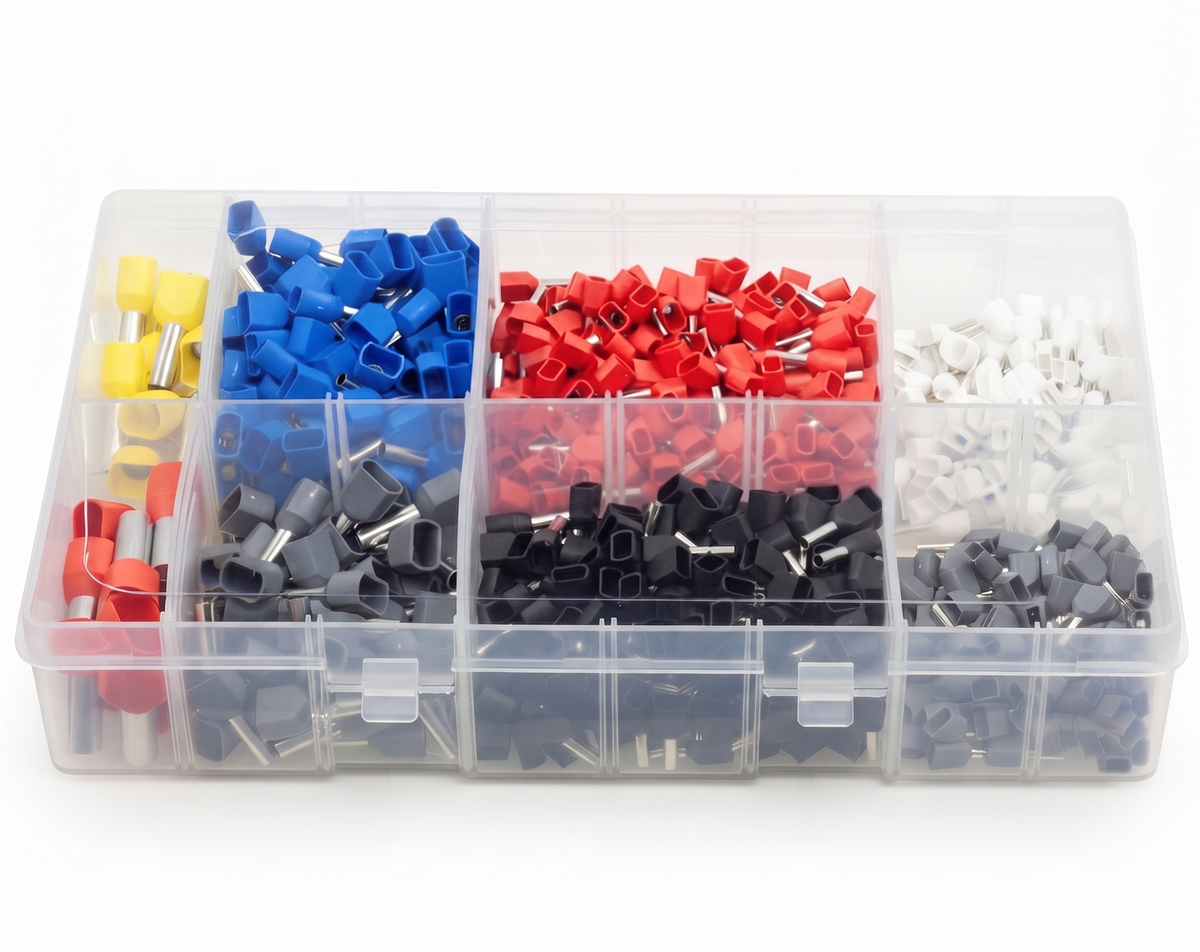

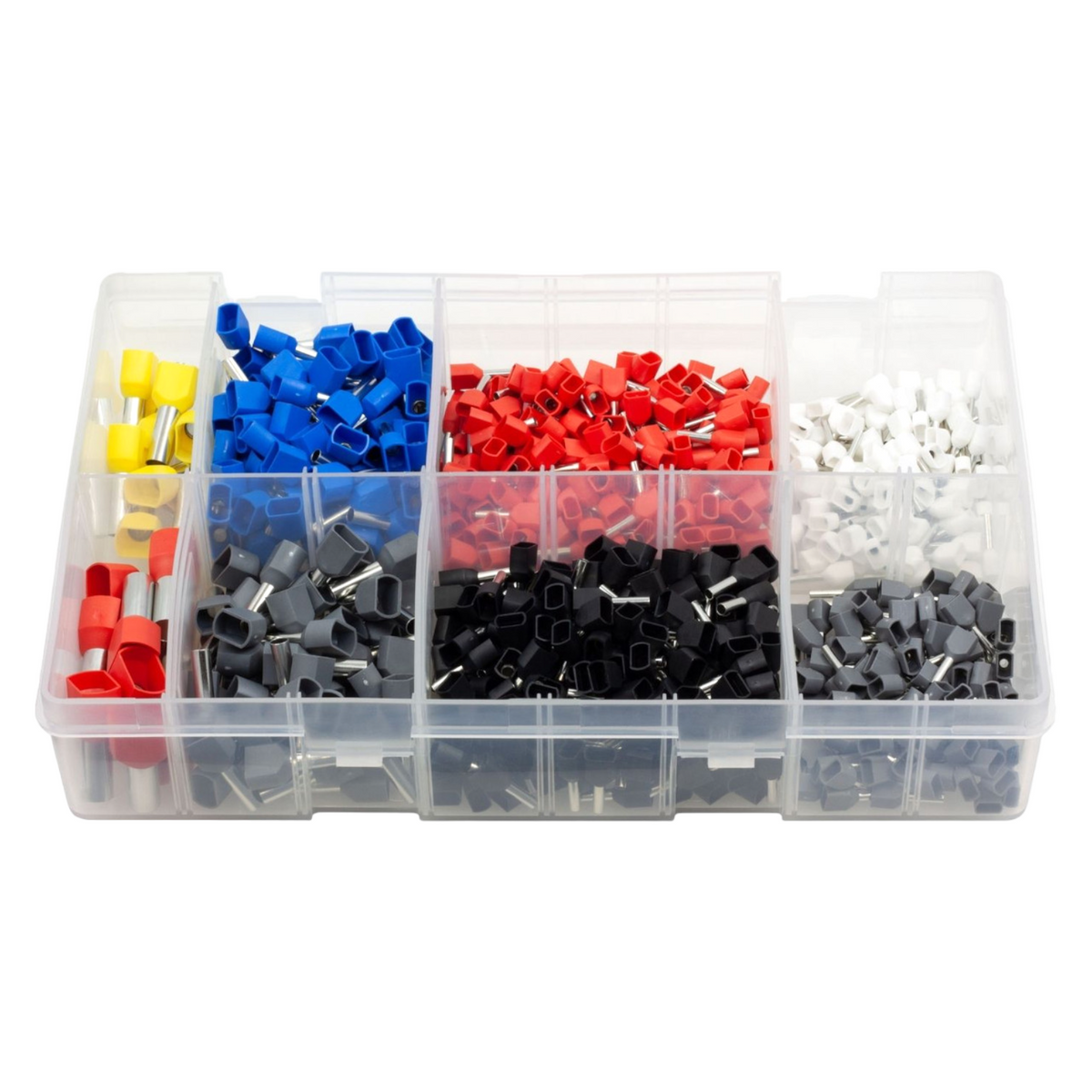

770pc Assorted Twin Bootlace Ferrules Box - 0.5 to 10mm, 8 Sizes

770pc Assorted Box of Twin Bootlace Ferrules - 770 twin entry cord end ferrules in tin plated copper with nylon insulation, covering eight cable sizes from 0.5mm² up to 10.0mm².

A twin ferrule takes two conductors side by side into one barrel and crimps them into a single pin, so a pair of wires can go into a terminal built for one. That is how a supply gets looped through a row of terminals or a daisy chain is run along a DIN rail, and it does the job properly instead of twisting two bare tails together and trusting the screw to hold both.

Box contents (770 pieces total)
100 x 0.5mm² white
100 x 0.75mm² grey
200 x 1.0mm² red
200 x 1.5mm² black
100 x 2.5mm² blue
50 x 4.0mm² grey
10 x 6.0mm² yellow
10 x 10.0mm² red

Type
Twin entry cord end ferrule, tin plated copper with nylon insulation, rated -40°C to +105°C

Please note
The size marked on a twin ferrule is the size of each conductor, not the two added together - a 1.5mm² twin ferrule takes two 1.5mm² wires. These are fitted with a ferrule crimping tool; a ratchet crimper made for insulated terminals will not form a ferrule correctly.

Suitable for
Control panels and terminal blocks, DIN rail and contactor terminals, looped supplies and daisy chains, machinery and plant wiring, inverters and solar installations, vehicle and marine switch panels

Also known as twin entry ferrules, double cord end ferrules, twin wire ferrules, dual entry pin terminals, or a twin ferrule assortment box.
