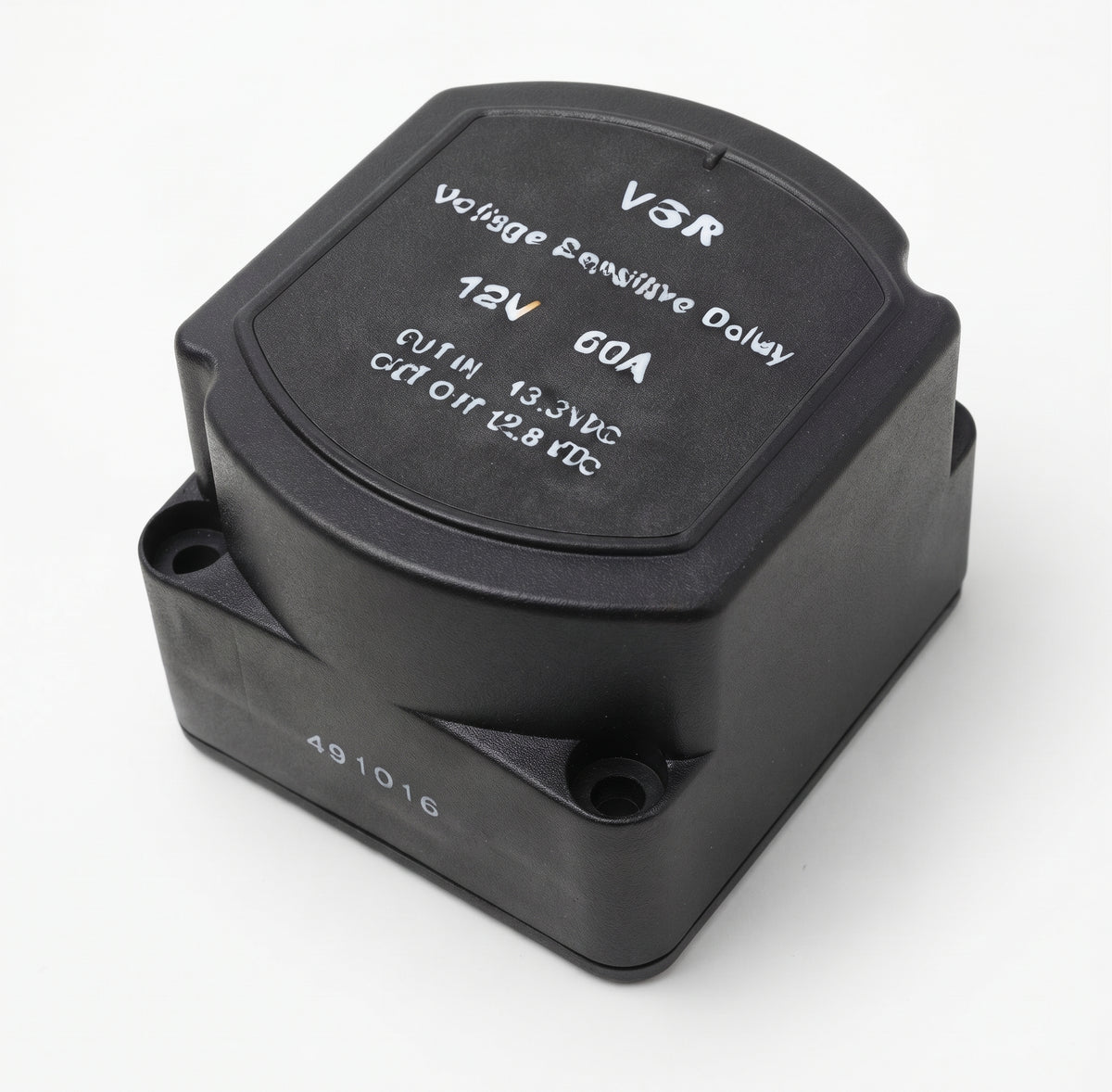

60A Voltage Sensitive Relay - 12V Split Charge, Camper & Motorhome VSR

60A Voltage Sensitive Relay (VSR) — a high quality 12V voltage sensitive relay designed for split charging dual battery systems in campers, camper vans, motorhomes, caravans and marine applications. This relay automatically connects and disconnects a secondary battery based on system voltage, allowing safe charging of an auxiliary battery without risking discharge of the main starter battery.

When the charging voltage rises, the relay engages to charge the second battery. When voltage drops, it disconnects automatically, protecting the primary battery at all times. A built-in red LED indicator provides clear operational status.

Voltage
12V DC

Current rating
60A

Engage voltage
13.3V

Disengage voltage
12.8V

Indicator
Red LED

Approval
CE approved

Compatibility note
Not suitable for vehicles with 'smart' or 'intelligent' alternators (typically Euro 5/6 and newer, often with regenerative braking) — a DC-DC charger is required for these vehicles instead

Suitable for
Camper vans and motorhomes, dual battery leisure systems, marine and boat electrics, auxiliary battery installations

Also known as a VSR, split charge relay, or voltage sensing relay.
