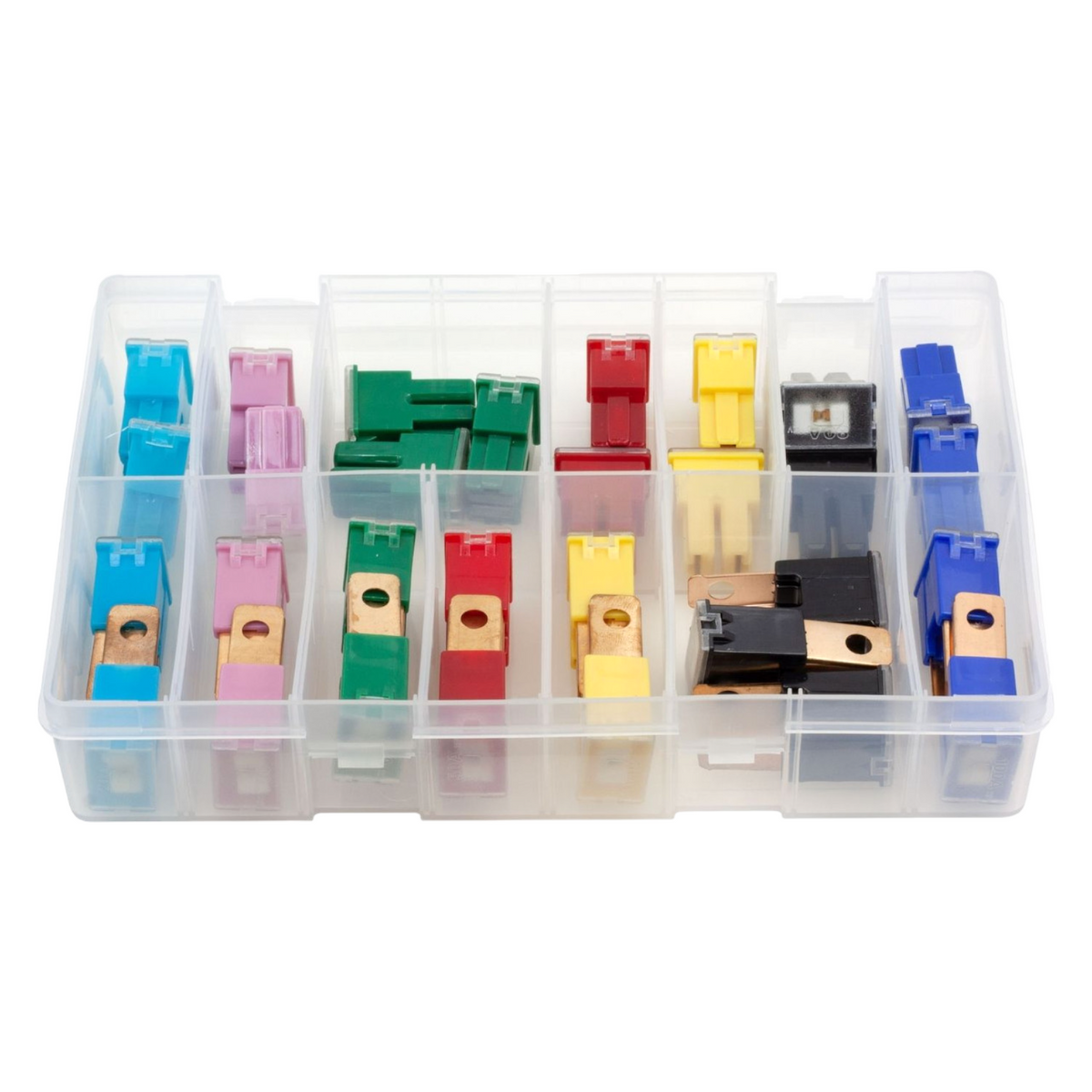

30pc Assorted PAL Fuses Box - Male & Female, 20A to 100A

30pc Assorted Box of PAL Fuses - 30 PAL slow blow fuses covering seven ratings from 20A up to 100A, with both male and female types in every rating, fifteen of each.

A PAL fuse, also sold as an auto link, is the high current fuse fitted to the main feeds on Japanese vehicles. It is a slow blow type, which means it rides out the surge a starter or a blower motor draws on start up rather than blowing on it, while still protecting the cable against a sustained fault.

Male and female
A male PAL fuse has blades that push into the holder. A female has slots that push onto blades in the holder. Match the type of the fuse being replaced - both are used on Japanese vehicles and a holder takes only one of the two.

Box contents (30 pieces total)
20 amp - 2 male, 2 female
30 amp - 2 male, 2 female
40 amp - 2 male, 3 female
50 amp - 2 male, 2 female
60 amp - 2 male, 2 female
80 amp - 3 male, 2 female
100 amp - 2 male, 2 female

Suitable for
Main feeds and heavy current circuits on Japanese vehicles, alternator and starter circuits, blower motors and cooling fans, ABS and power steering supplies, garage and fleet servicing

Also known as auto link fuses, slow blow fuses, PAL type fuses, Japanese link fuses, or a PAL fuse assortment box.
