Insulated Lipped Blade Terminals - Crimp Blades 3mm & 4.6mm, Red, Blue & Yellow

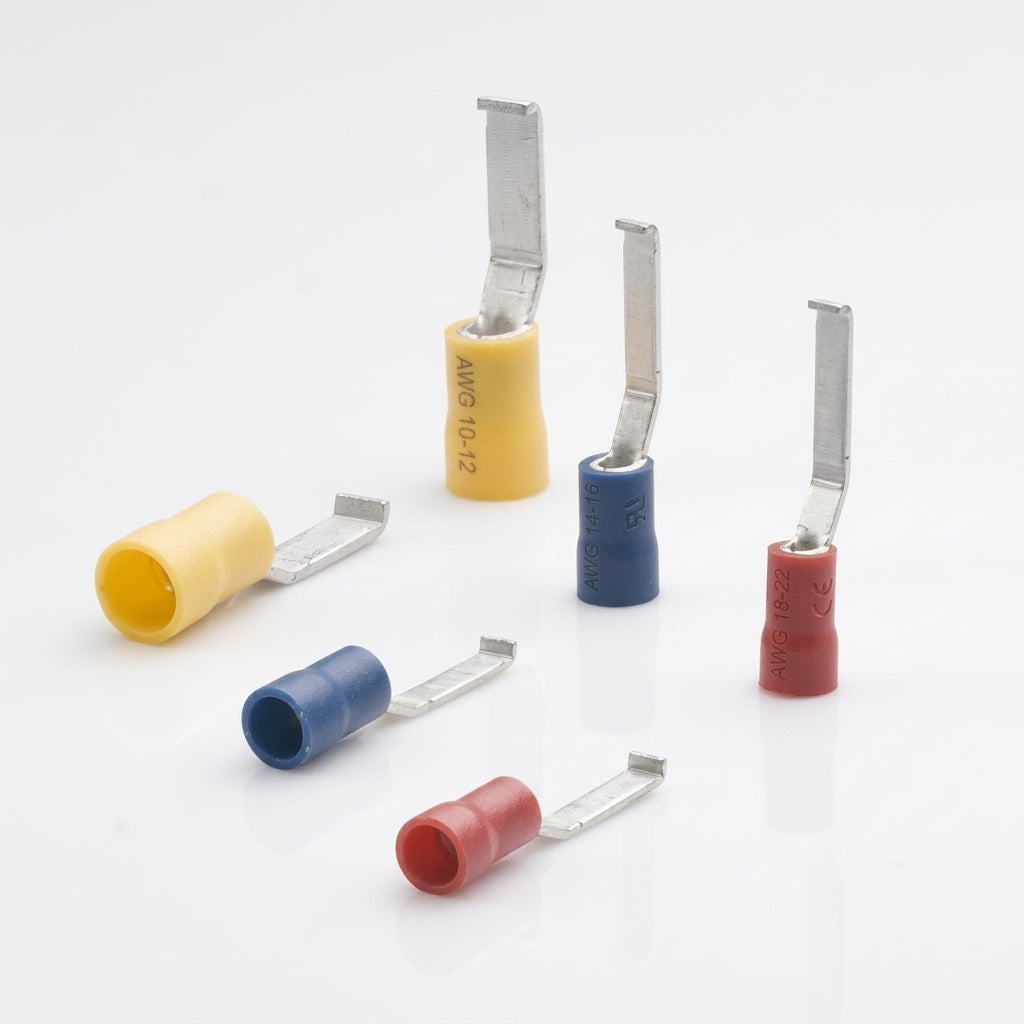

Insulated lipped blade terminals put a flat blade on the end of a stranded wire for a secure fit in screw terminals, terminal blocks and circuit breakers. A raised lip at the tip of the blade helps stop it pulling out once the terminal is tightened, while the colour-coded insulated barrel matches the wire size and protects the crimp.

Colour - Wire size - Max current
Red - 0.5-1.5mm² - 19A
Blue - 1.5-2.5mm² - 27A
Yellow - 4.0-6.0mm² - 48A

Blade sizes (width x length)
Red - 3.0 x 25mm and 4.6 x 25mm
Blue - 3.0 x 25mm and 4.6 x 25mm
Yellow - 4.6 x 30mm

Material
Tin plated copper, vinyl insulation

Rating
-10°C to +75°C, 600V max

Applications
Circuit breakers, terminal blocks, screw clamp terminals, control panels and switchgear, where a blade needs to stay put once tightened.

Also known as lipped blade connectors, flat lipped terminals, insulated blade pins or breaker blade terminals.

Supplied in packs of 100 or 1000. For straight blades, see our insulated flat blade terminals.
