Insulated Female Bullet Connectors - 4mm & 5mm Crimp Receptacles, Red, Blue & Yellow

Insulated female bullet connectors, push-fit crimp receptacles with a fully insulated barrel that accepts a matching male bullet. Crimp onto the wire, then push a male bullet into the open end for a neat in-line connection you can pull apart by hand. The size shown is the diameter of the male bullet it accepts.

Colour - Wire size - Bullet sizes - Max current
Red - 0.5-1.5mm² - 4mm - 10A

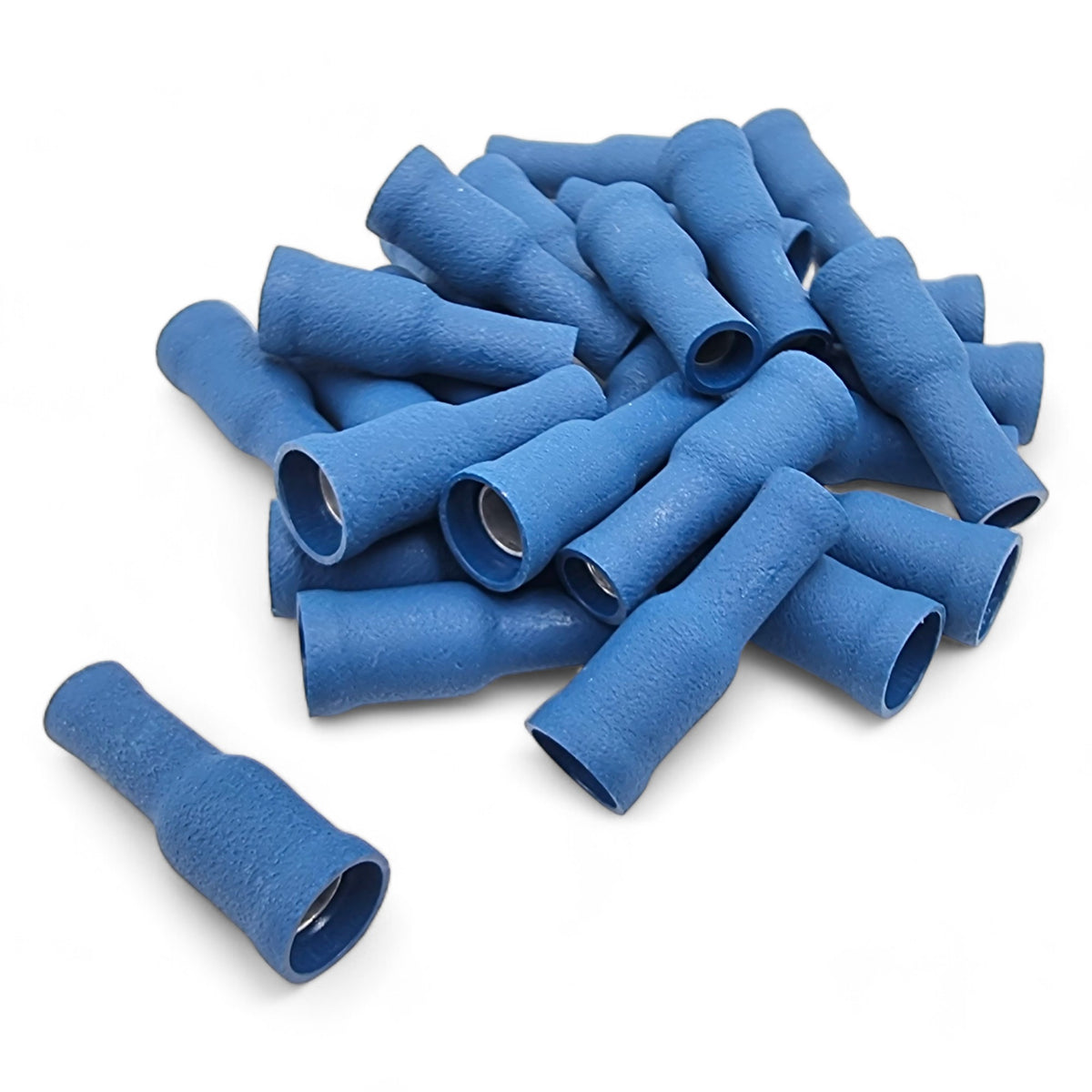

Blue - 1.5-2.5mm² - 4mm and 5mm - 15A

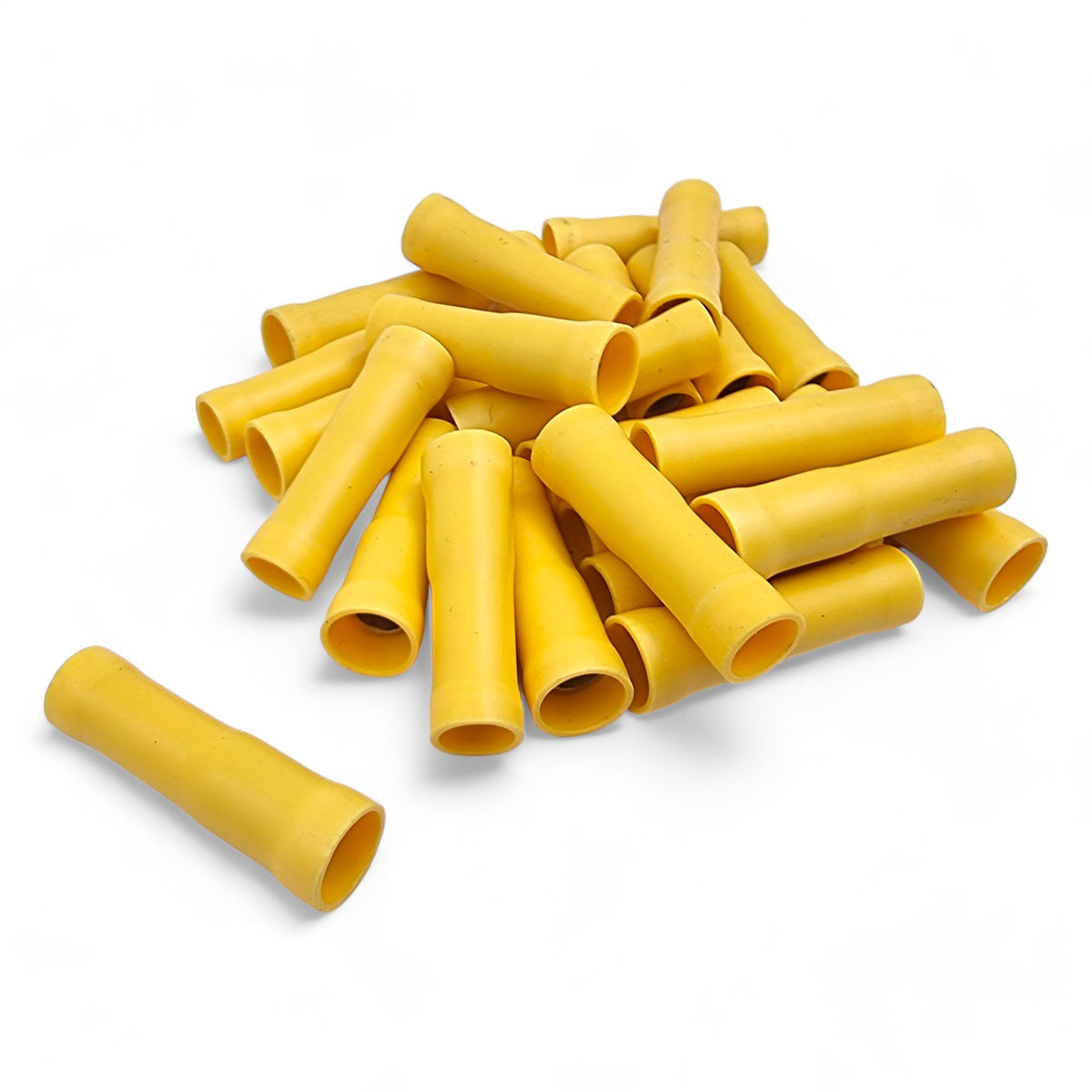

Yellow - 4.0-6.0mm² - 5mm - 24A

Material
Tin plated brass contact with copper sleeve, vinyl insulation

Rating
-10°C to +75°C, 300V max

Applications
Motorcycle, classic car and vehicle lighting, indicators and accessories, trailer wiring, and any in-line connection that needs to come apart.

Also known as female bullet terminals, bullet sockets, bullet receptacles or in-line push-fit connectors.

Supplied in packs of 10, 100 or 1000. For the matching connector, see our insulated male bullet connectors.
