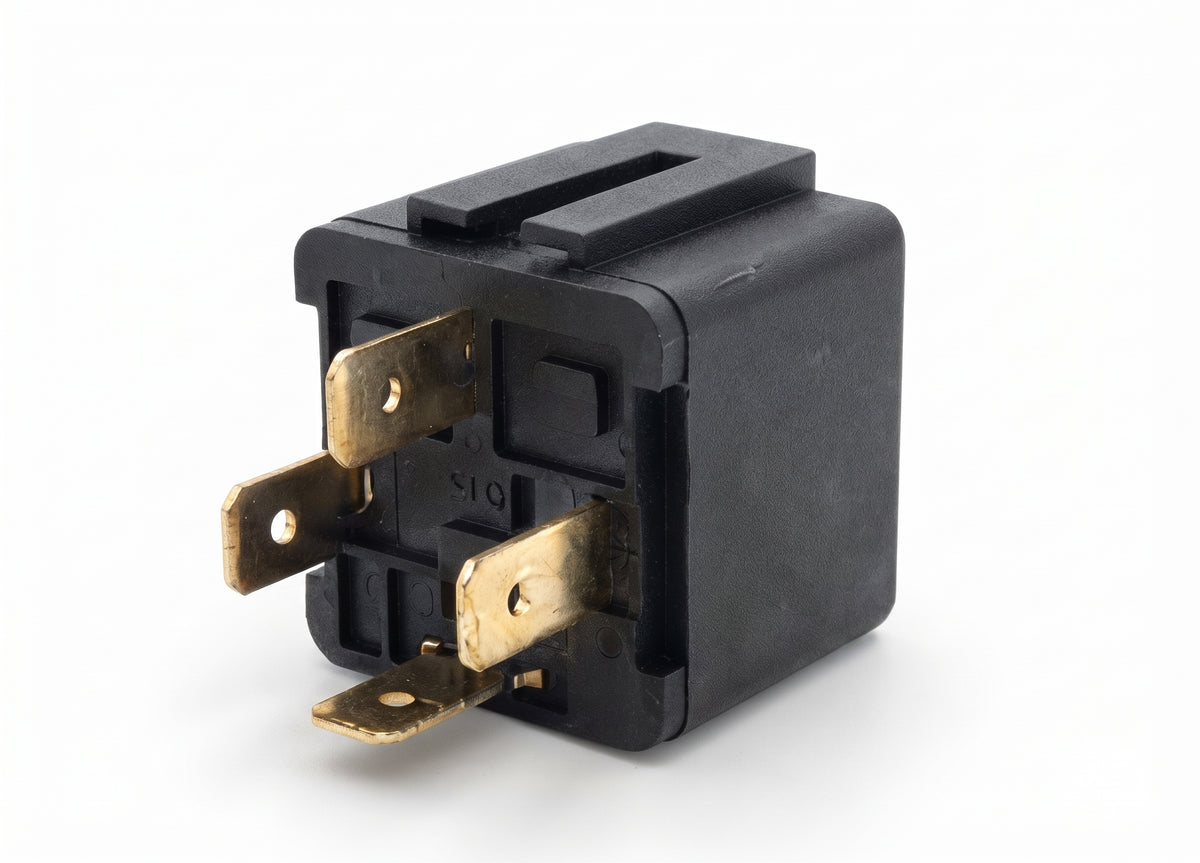

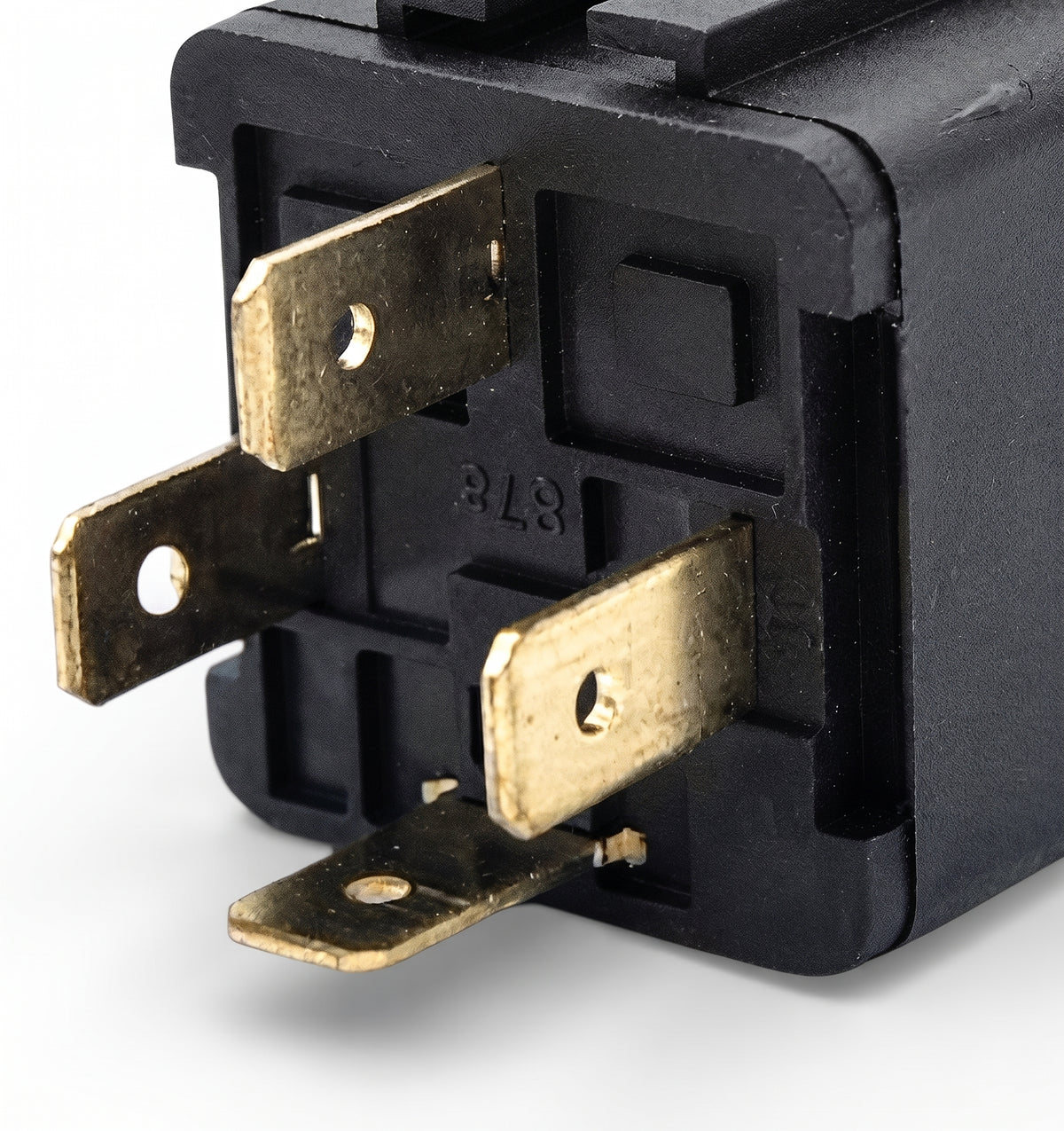

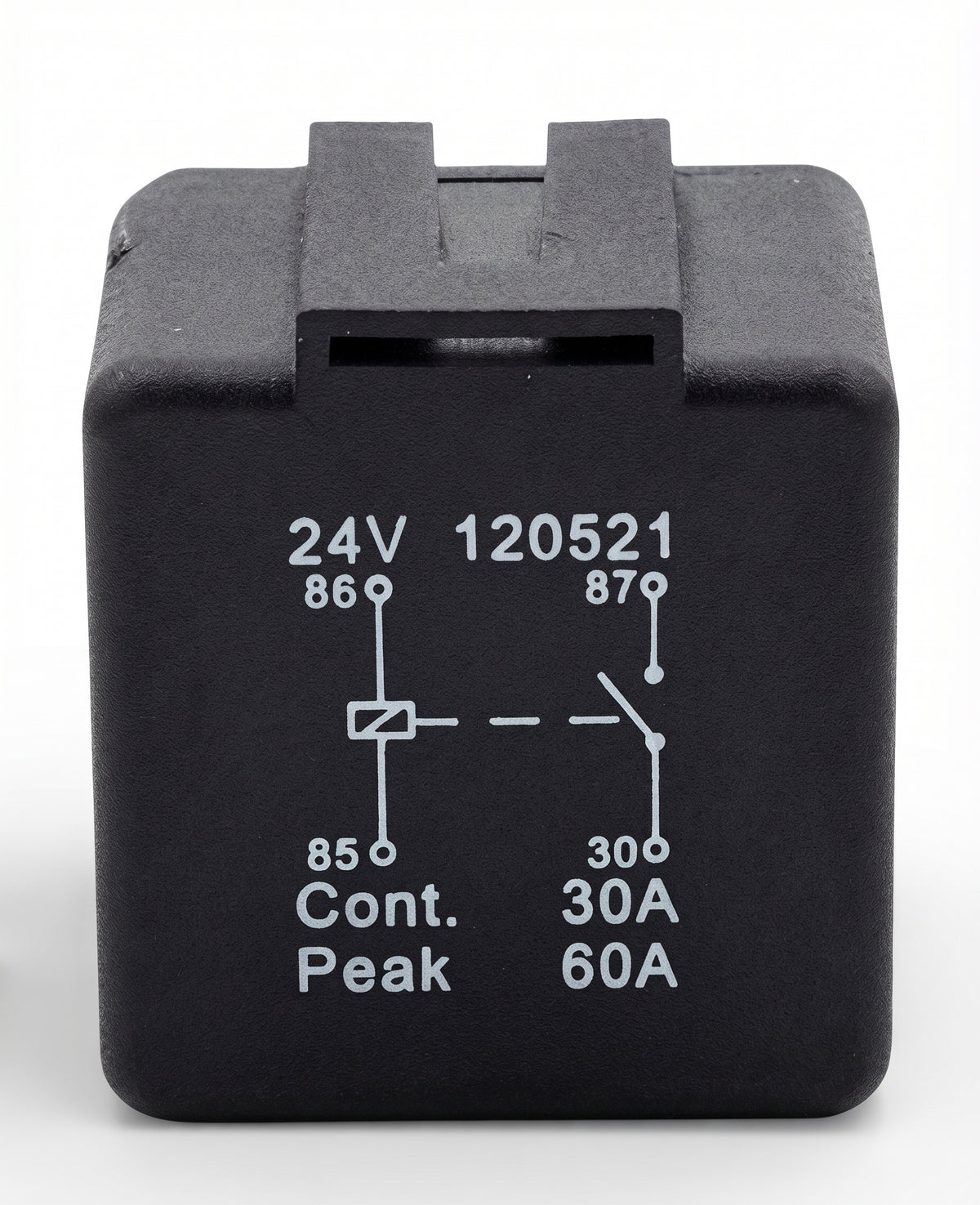

4 Pin Automotive Relay - 24V 20/30A, Normally Open, With Bracket

4 Pin Automotive Relay (24V, Normally Open, with Bracket) — a high quality automotive relay designed for 24V systems, suitable for a wide range of commercial vehicles, trucks, agricultural machinery, plant equipment and marine applications. Featuring a normally open (NO) contact, it is supplied with a detachable mounting bracket for flexible and secure installation. Manufactured to original equipment standard, ensuring reliable switching performance and long service life.

Voltage
24V DC

Current rating
20A/30A

Contact type
Normally open (NO)

Pins
4

Mounting
Detachable metal bracket included

Terminal type
Standard automotive spade terminals

Colour
Black

Suitable for
Commercial vehicles and HGVs, trucks, buses and coaches, agricultural machinery, plant and industrial equipment, marine and 24V electrical systems

Cross reference numbers
Mafco 425-1120, Woodauto RLY1012

Also known as a mini relay, 24V vehicle relay, or 4-pin bracket relay.
