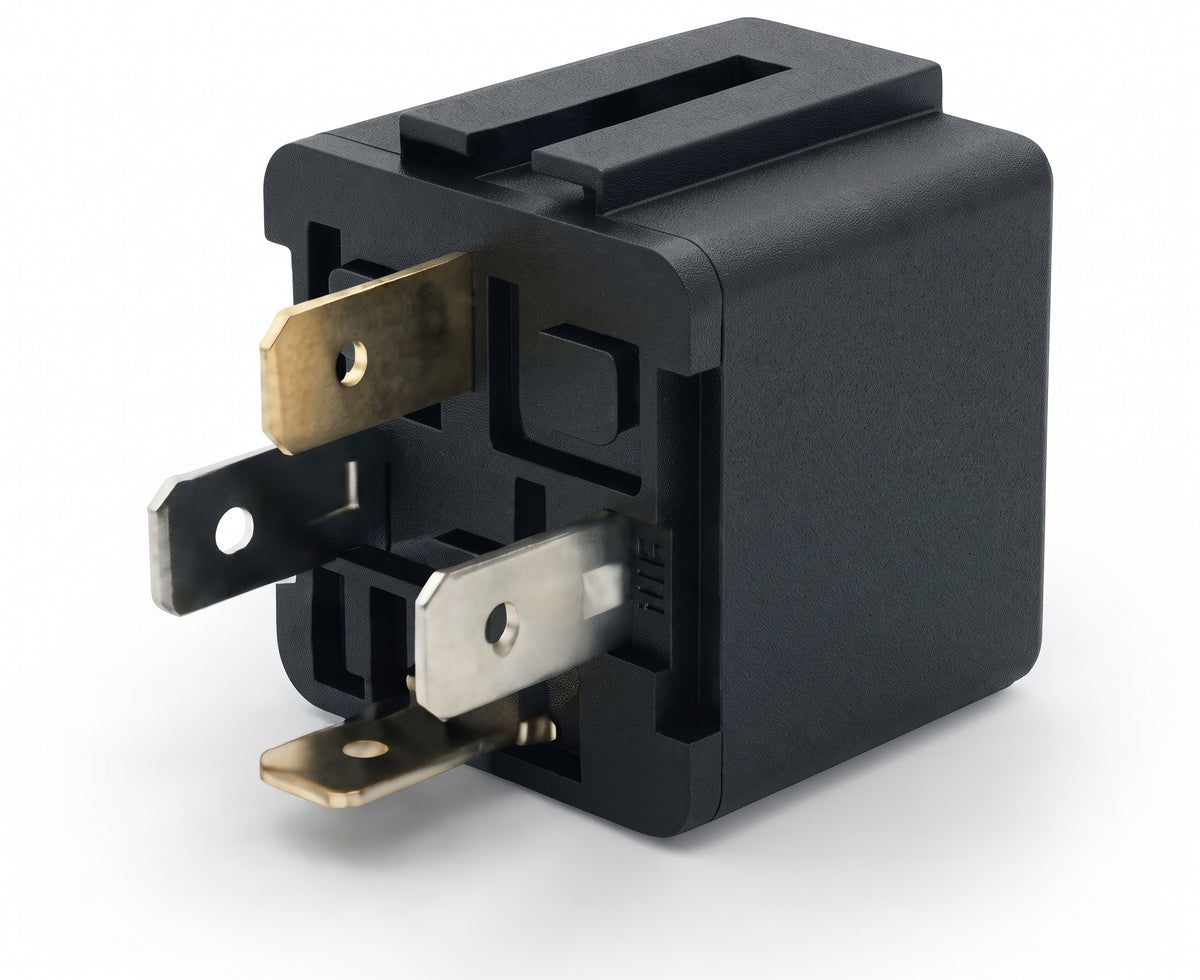

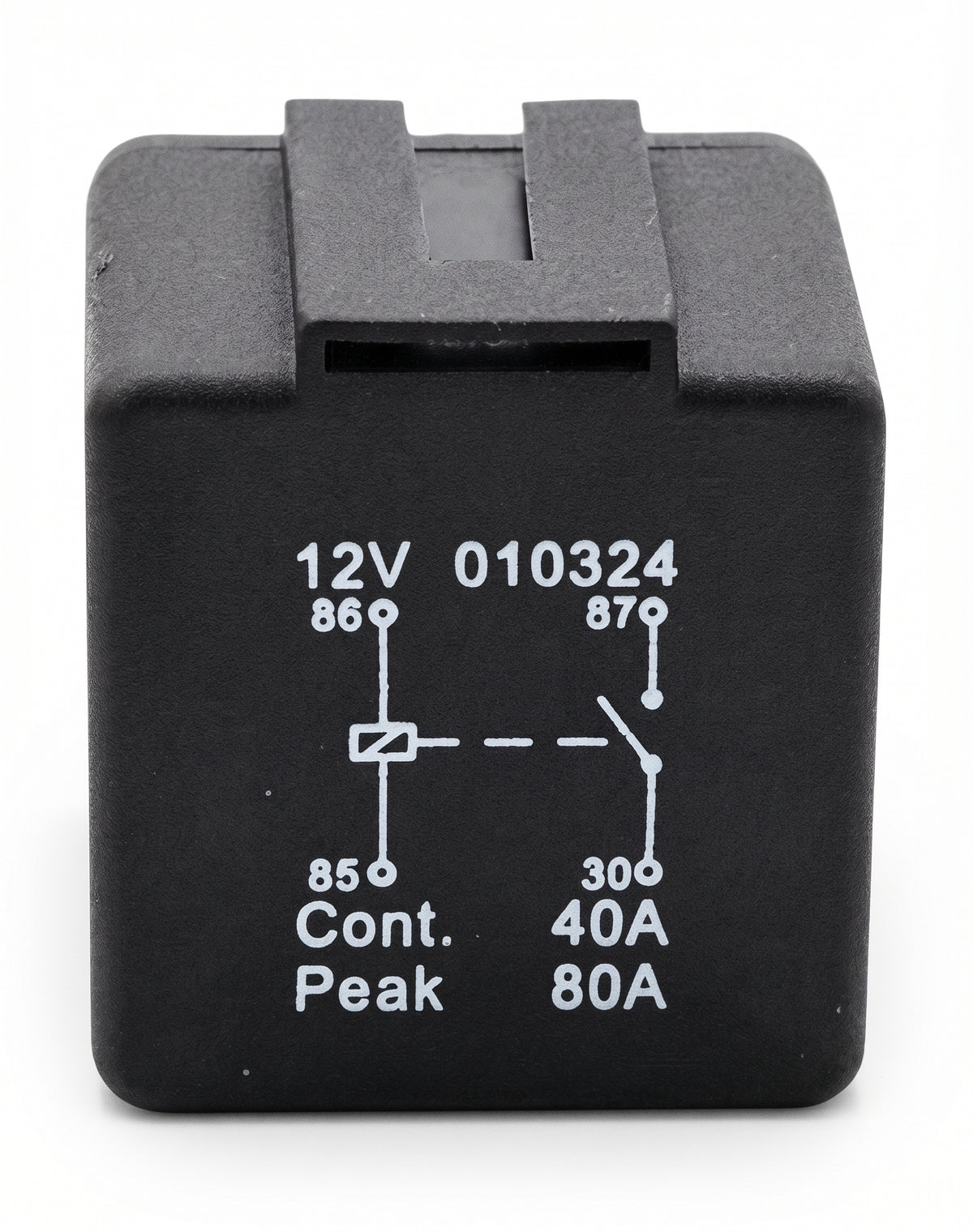

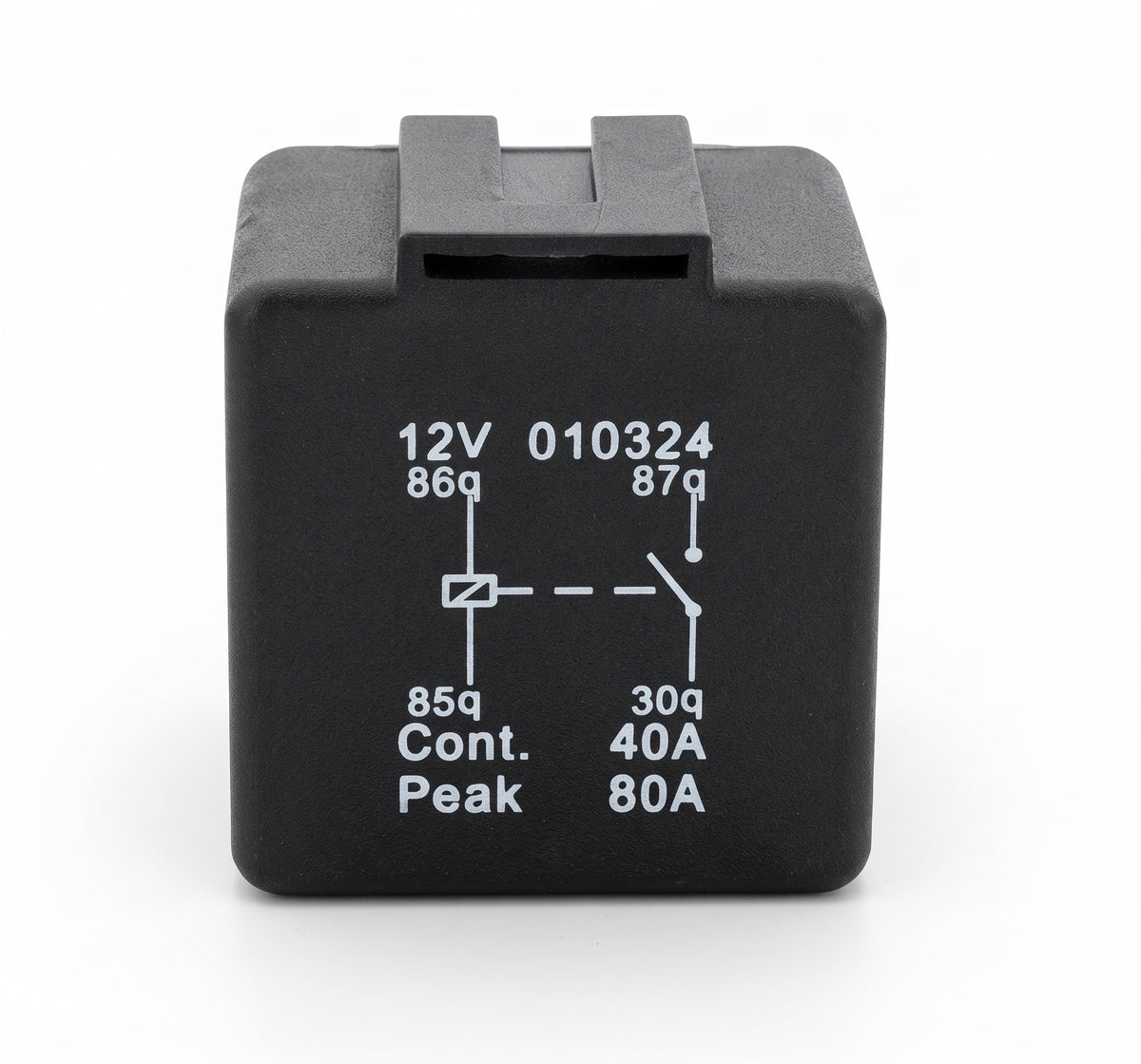

4 Pin Automotive Relay - 12V 40A, Normally Open, With Bracket

4 Pin Automotive Relay (12V, Normally Open, with Bracket) — a high quality automotive relay designed for reliable switching in vehicle electrical systems. Featuring a normally open contact, it comes supplied with a detachable mounting bracket, making installation quick and secure. Manufactured to original equipment standard, this relay is suitable for a wide range of automotive, commercial, marine and industrial applications.

Voltage
12V DC

Current rating
40A Rated / 80A Peak

Contact type
Normally open (NO)

Pins
4

Mounting
Detachable metal bracket included

Terminal type
Standard automotive spade terminals

Colour
Black

Suitable for
Cars, vans and commercial vehicles, lighting circuits, fans, pumps and horns, auxiliary power circuits, general 12V automotive and marine systems

Cross reference numbers
Audi 141 951 253 A/171 937 503/311 963 141 B/431 951 253, Bosch 0 332 019 150, Delphi SRB520, Durite 0-727-12, Ford 81DB 15K235 TA/90BB 9E731 EA, Hella 4RA 003 510 111/4RA 003 510 117, Lucas SRB520, Mafco 425-1010, Porsche 171 937 503/311 963 141 B/928 615 117 00, Seat/Skoda/VW 141 951 253 A/171 937 503/311 963 141 B/431 951 253, Vauxhall/Opel 1238604/3440489, Volvo 841177, Woodauto RLY1001

Also known as a mini relay, standard car relay, or 4-pin bracket relay.
