365pc Assorted Electrical Terminals Box - Spade, Ring, Bullet & Butt

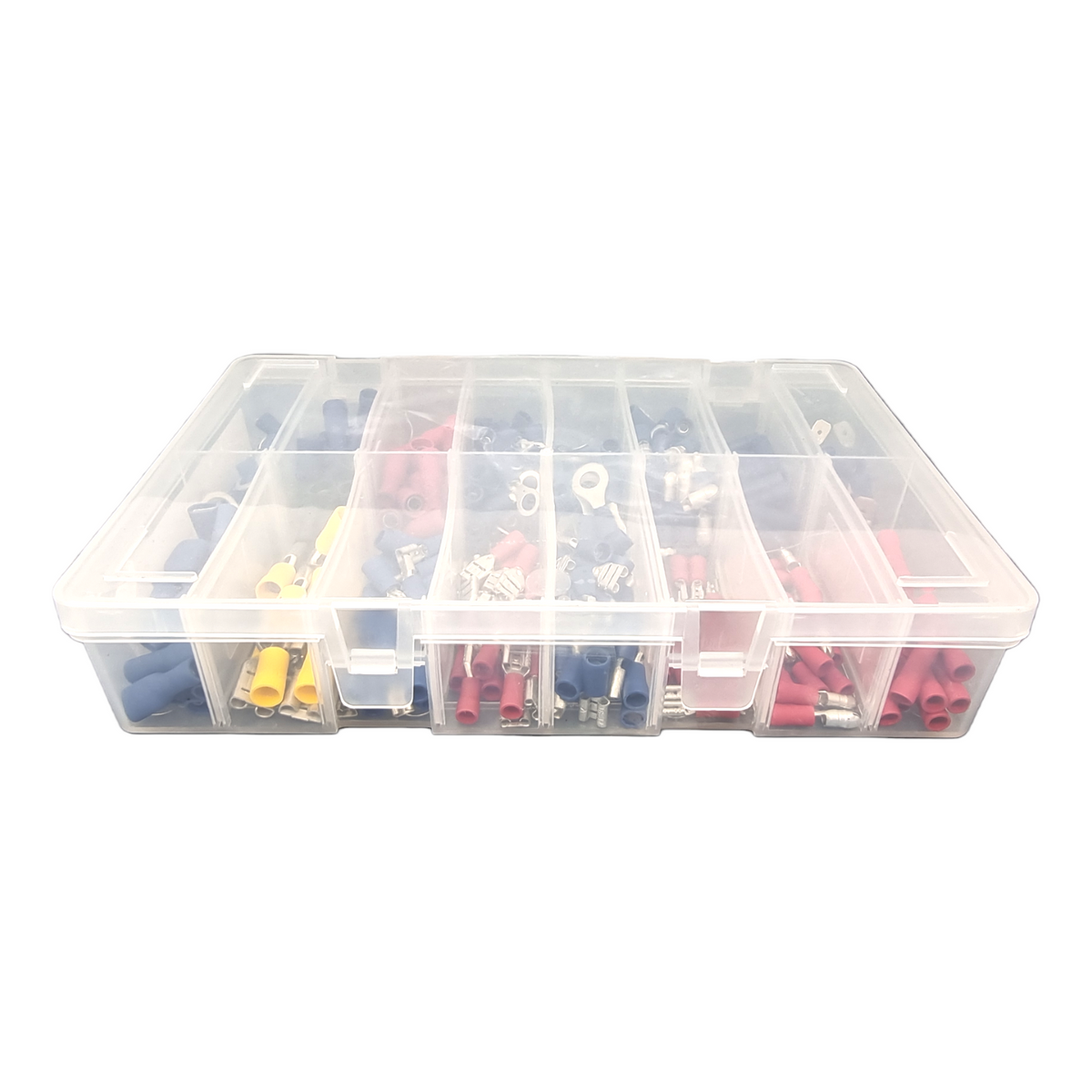

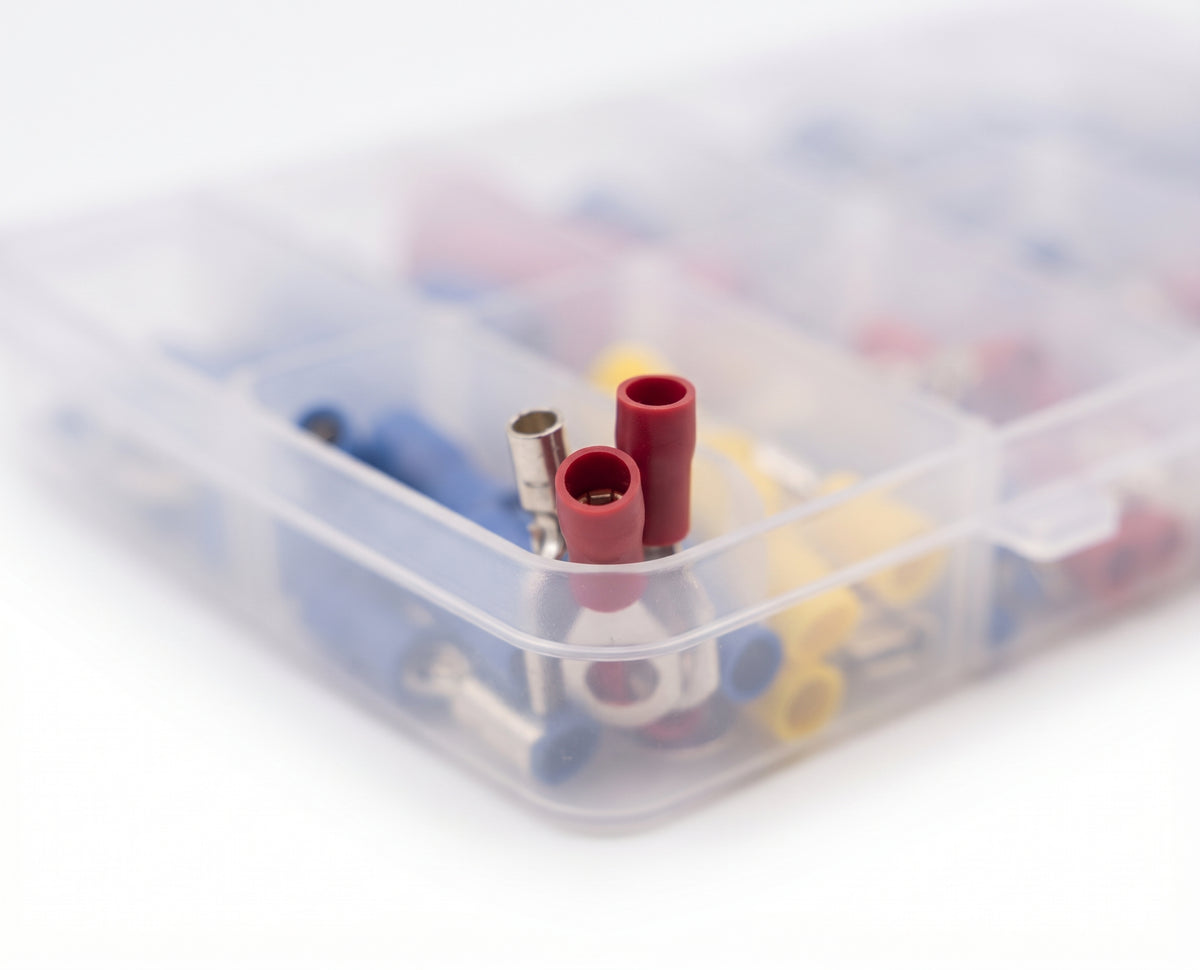

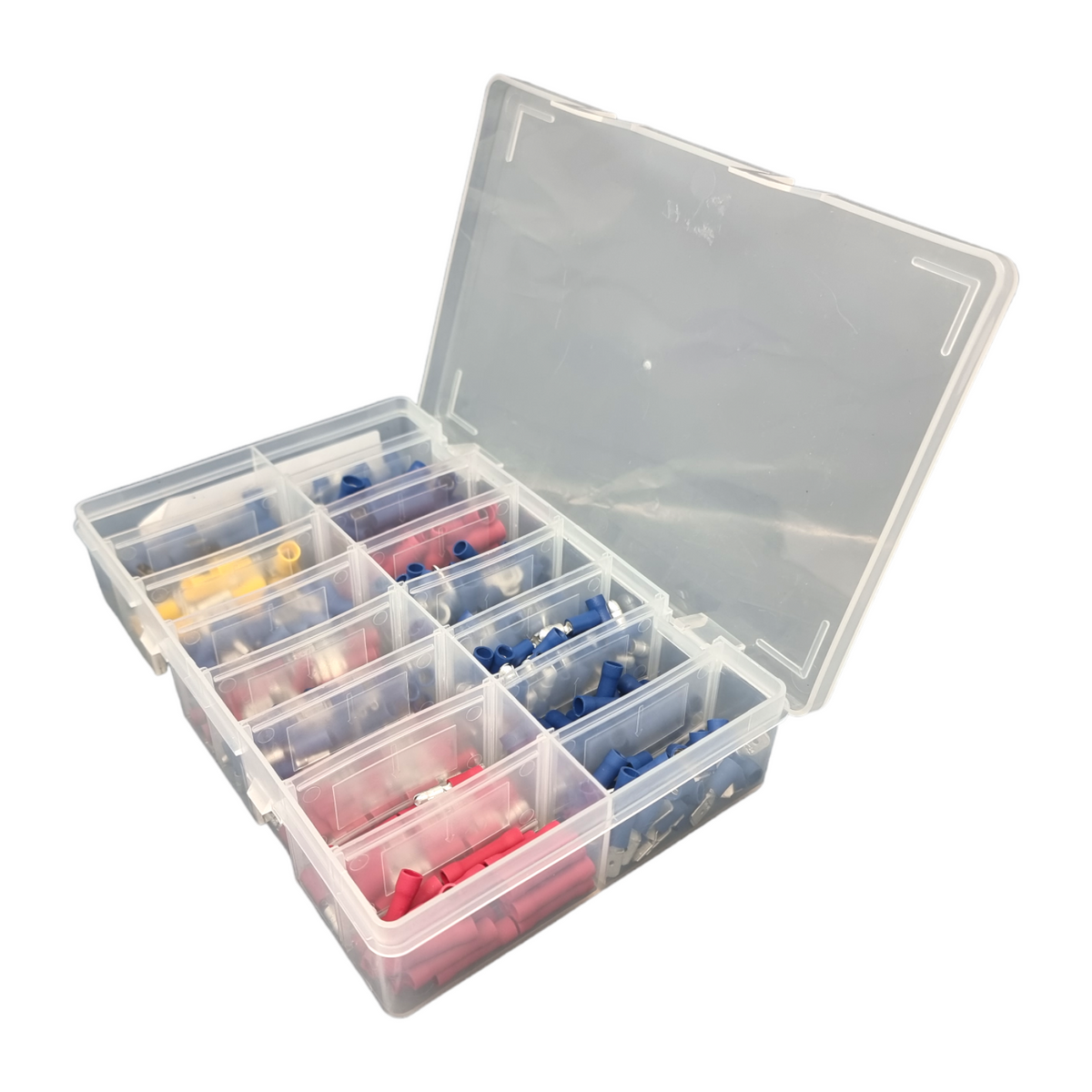

365pc Assorted Box of Electrical Terminals - 365 pre-insulated crimp terminals covering the six types used most in vehicle and workshop wiring: spade, male spade, receptacle, bullet, ring and butt connectors.

The insulation is colour coded to the cable it takes, so picking the right terminal is a matter of matching colours rather than measuring anything. All of them crimp with a ratchet or plier type crimping tool, and the insulated barrel means no separate sleeving is needed over the joint.

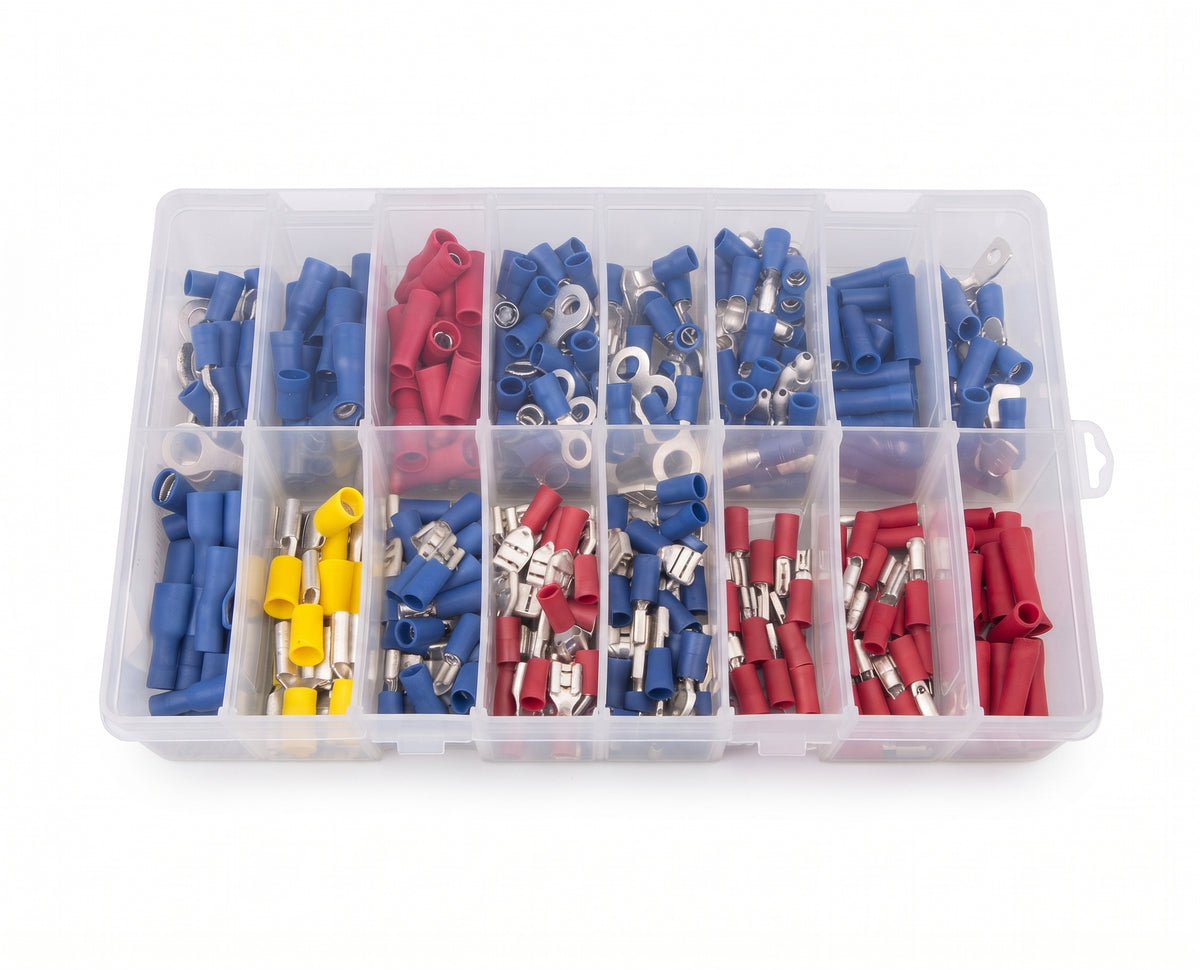

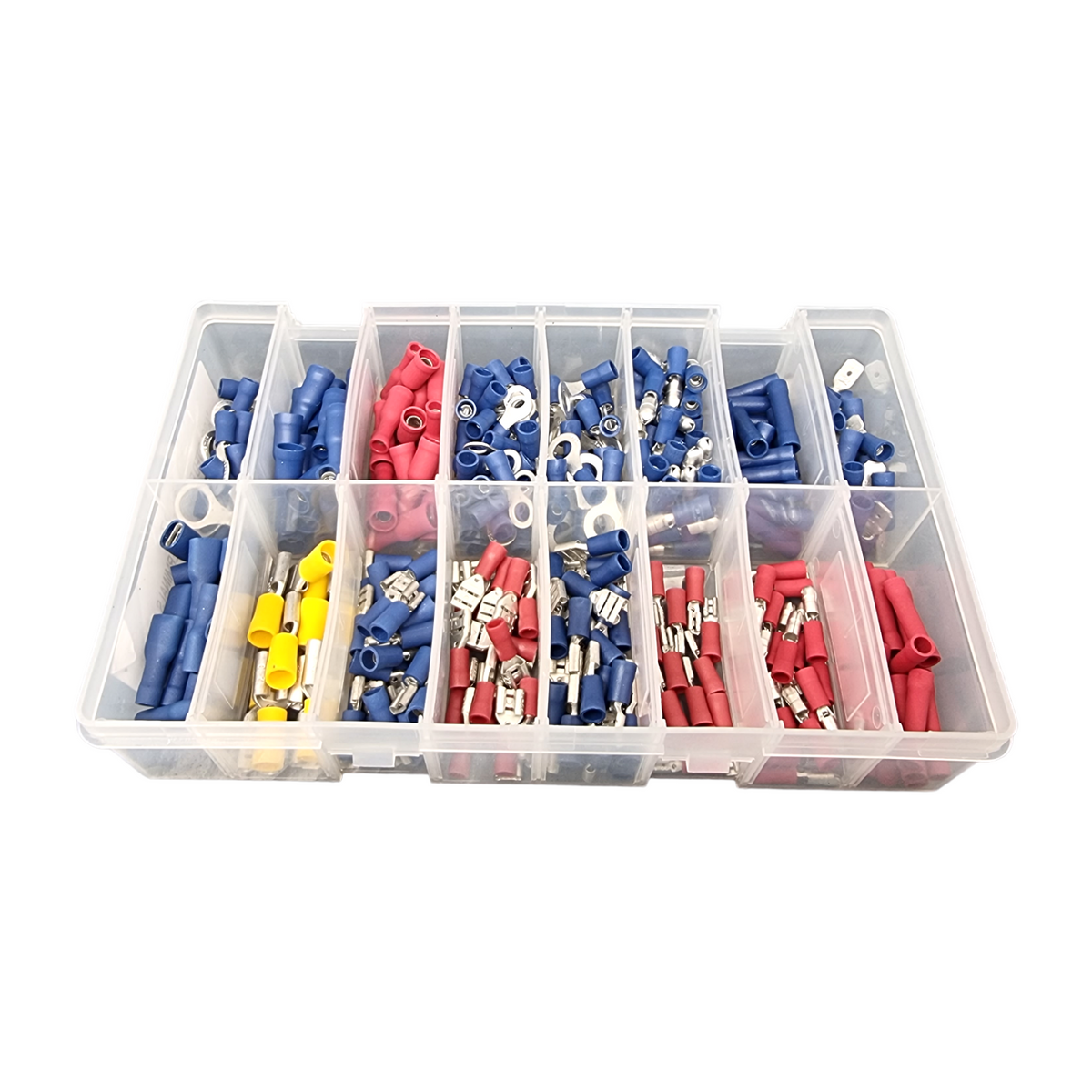

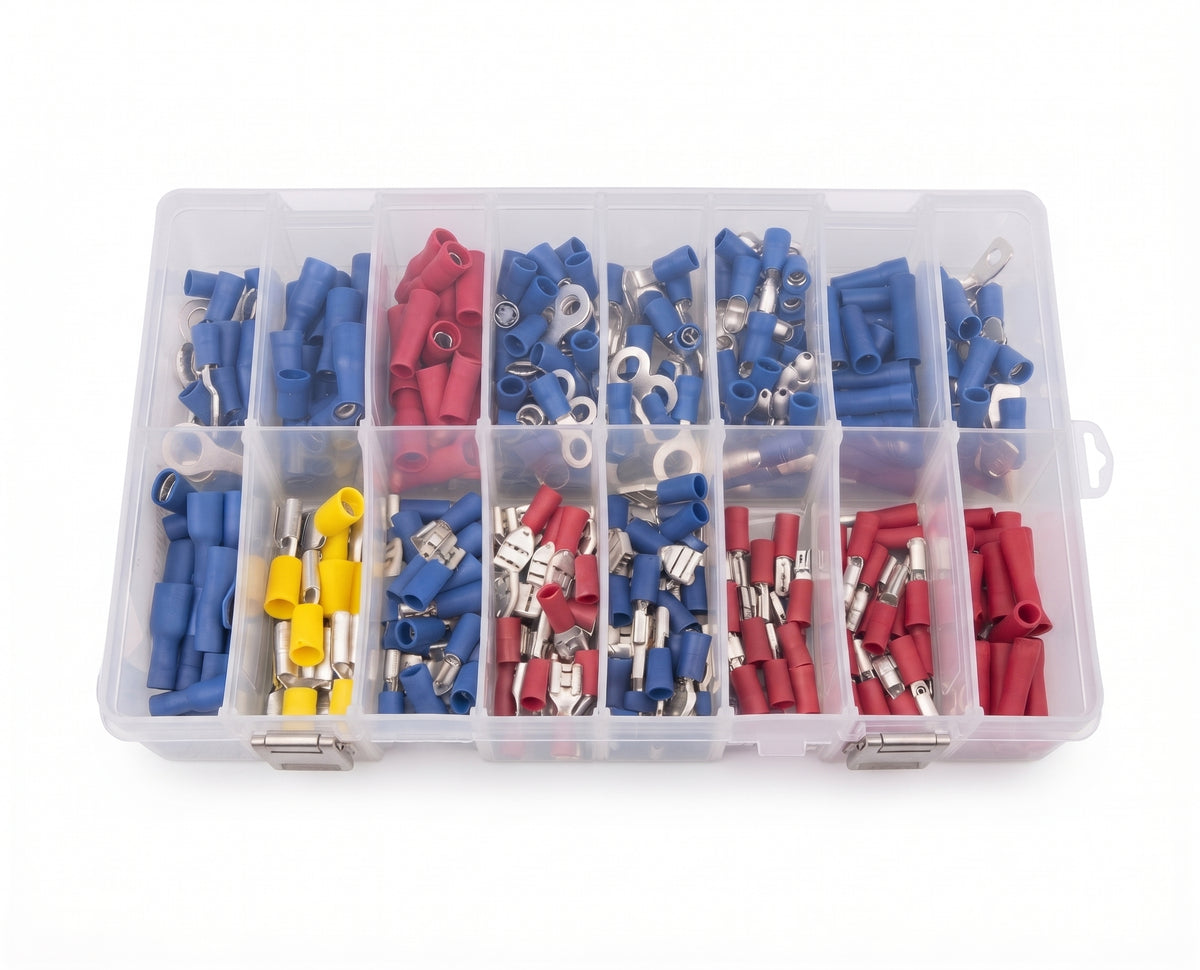

Box contents (365 pieces total)
Spade terminals - 15 x 2.8mm red, 25 x 4.8mm blue, 20 x 6.3mm red, 25 x 6.3mm blue, 20 x 6.3mm blue fully insulated, 10 x 9.5mm yellow
Male spades - 30 x blue
Receptacles - 20 x red, 20 x blue
Bullet terminals - 20 x red, 40 x blue
Ring terminals - 40 x 5.3mm blue, 20 x 6.4mm blue, 20 x 8.4mm blue
Butt connectors - 20 x red, 20 x blue

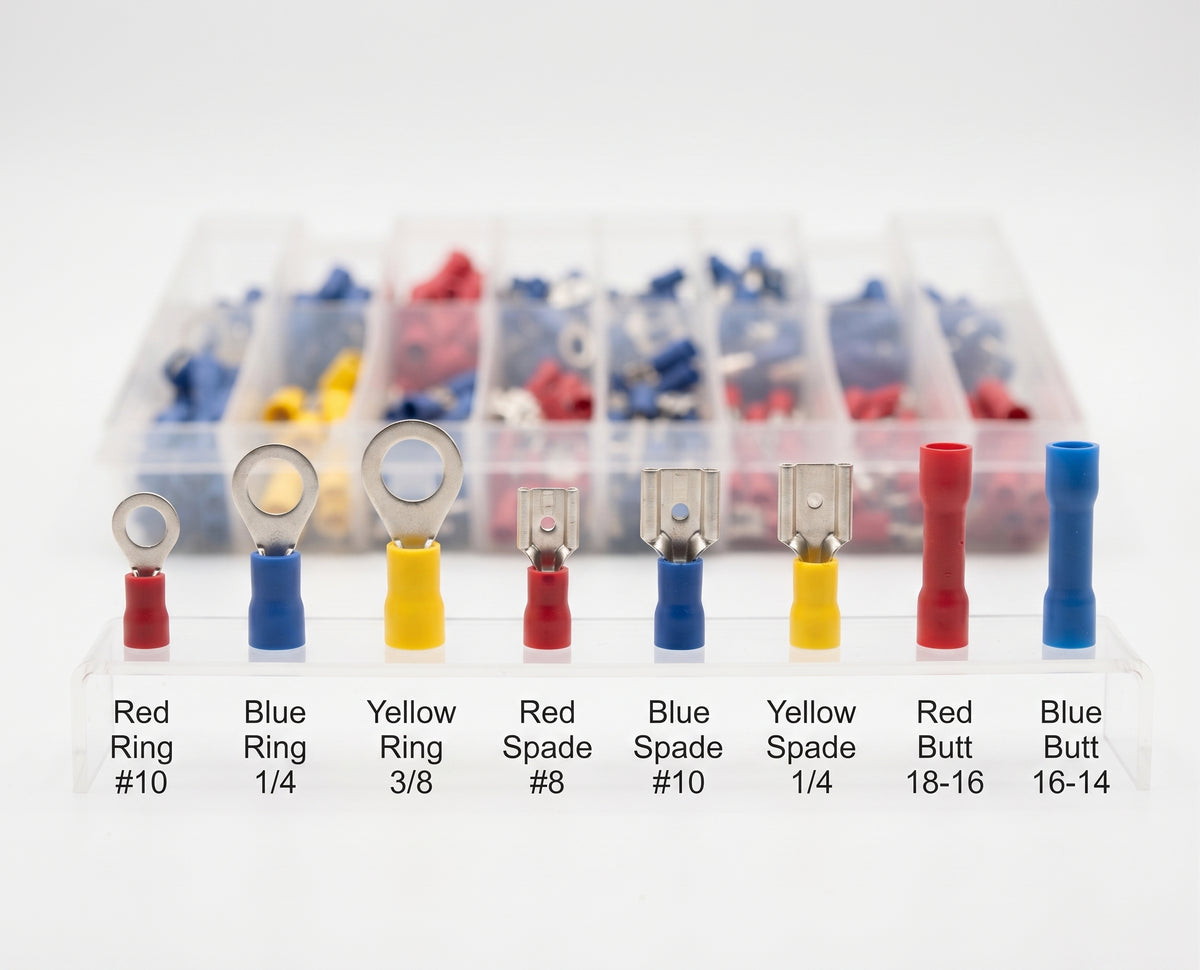

Cable size code
Red - 0.5 to 1.5mm²
Blue - 1.5 to 2.5mm²
Yellow - 3.0 to 6.0mm²

Suitable for
Automotive and van wiring, marine and boat electrics, caravans and motorhomes, agricultural and plant machinery, trailer and lighting looms, workshop repairs and rewiring

Also known as crimp connectors, wiring terminals, spade connectors, bullet connectors, ring tags, butt splices, or an electrical terminal assortment box.
