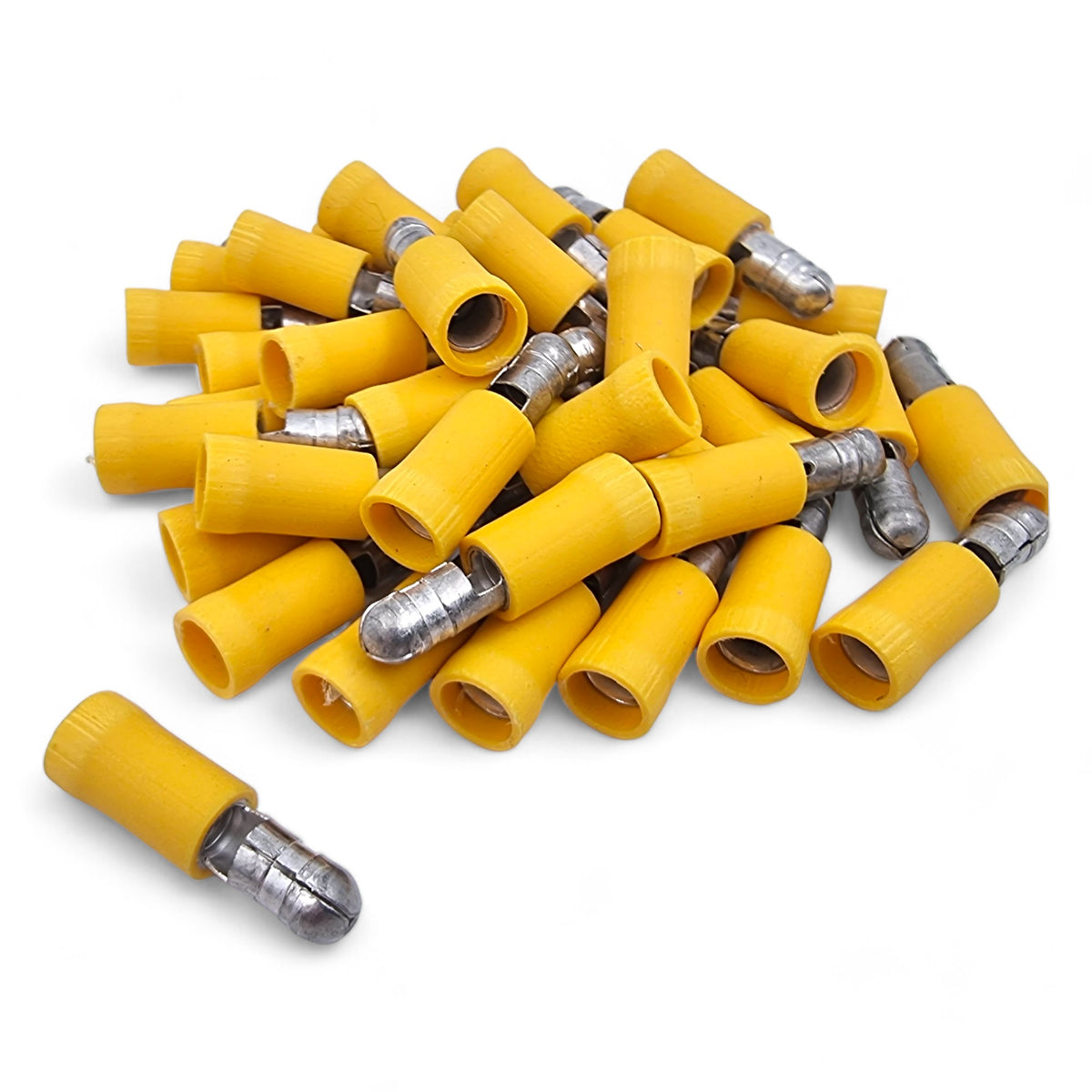

Insulated Male Bullet Connectors - 4mm & 5mm Crimp, Red, Blue & Yellow

Insulated male bullet connectors plug into matching female bullets for a quick, in-line disconnect that's easy to separate for servicing. The colour-coded insulated barrel matches the wire size and protects the crimp.

Colour - Wire size - Bullet sizes
Red - 0.5-1.5mm² - 4mm
Blue - 1.5-2.5mm² - 4mm and 5mm
Yellow - 4.0-6.0mm² - 5mm

Material
Tin plated brass contact with copper sleeve, vinyl insulation

Rating
-10°C to +75°C, 600V max

Applications
Motorcycle and vehicle lighting, indicators and accessories, trailer wiring, and any in-line connection that needs to come apart.

Also known as bullet terminals, male bullets, bullet crimp connectors or motorcycle bullet connectors.

Supplied in packs of 10, 100 or 1000. For the matching connector, see our insulated female bullet receptacles.
