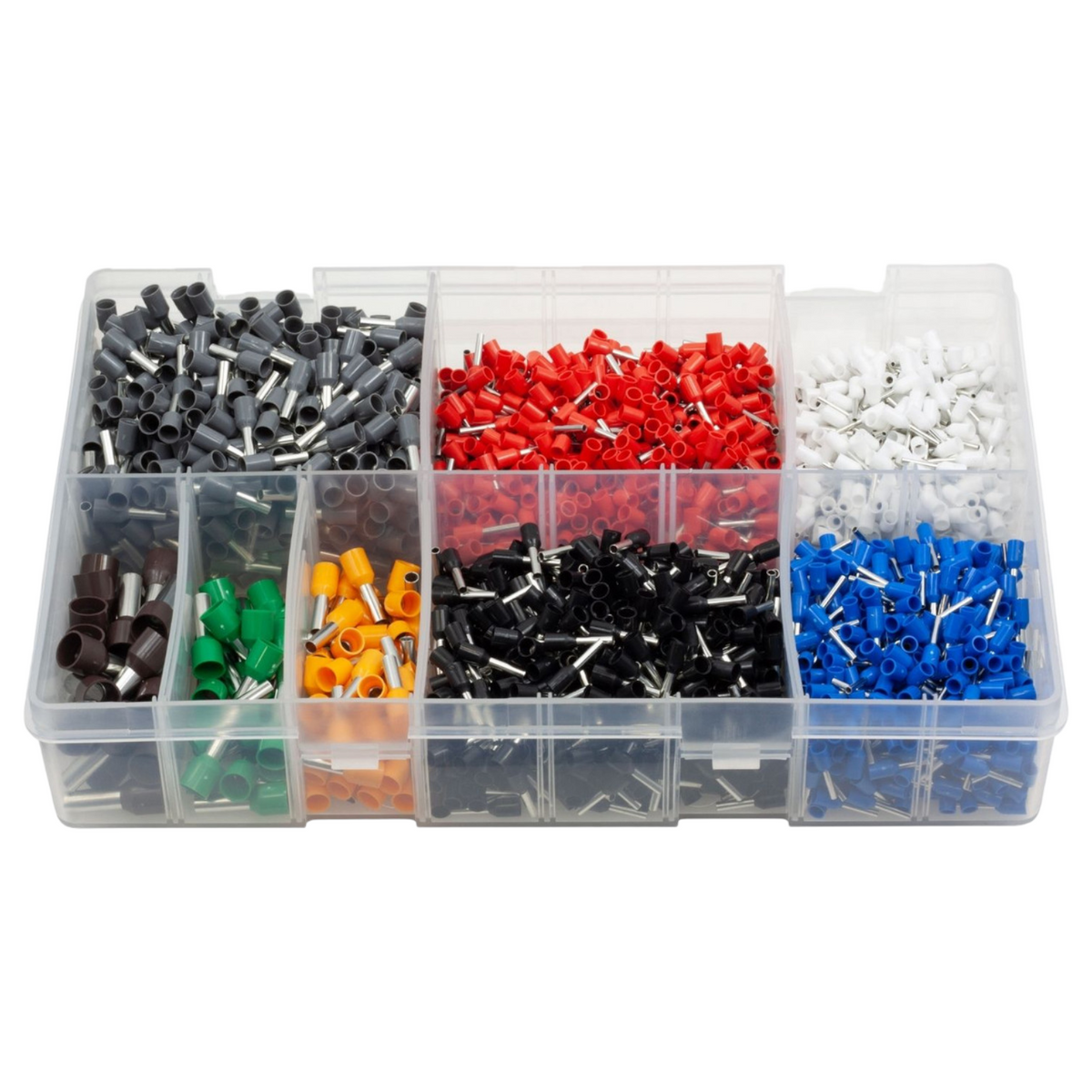

2600pc Assorted Bootlace Ferrules Box - 0.5 to 10mm, 8 Sizes

2600pc Assorted Box of Bootlace Ferrules - 2600 insulated cord end ferrules covering eight cable sizes from 0.5mm² up to 10.0mm², colour coded to the French standard.

A ferrule crimps onto the end of a stranded conductor and turns it into a solid pin. That stops the strands splaying when the screw comes down on them, keeps a stray whisker from bridging across to the next terminal, and means the clamp bears on the ferrule rather than cutting into the copper. Standard practice on control panels and terminal blocks, and worth doing on any screw terminal taking a stranded cable.

Box contents (2600 pieces total)
500 x 0.5mm² white
500 x 0.75mm² blue
500 x 1.0mm² red
500 x 1.5mm² black
500 x 2.5mm² grey
50 x 4.0mm² orange
25 x 6.0mm² green
25 x 10.0mm² brown

Type
Insulated cord end ferrule (bootlace ferrule), colour coded to the French standard

Please note
These are fitted with a ferrule crimping tool, which forms a square or hexagonal crimp. A ratchet crimper made for insulated terminals will not form a ferrule correctly.

Suitable for
Control panels and terminal blocks, DIN rail and contactor terminals, machinery and plant wiring, inverters and solar installations, vehicle and marine switch panels, general screw terminal connections

Also known as cord end ferrules, wire ferrules, cable end sleeves, pin terminals, or a bootlace ferrule assortment box.
