150pc Assorted HelaCon Plus Mini Connectors Box - 2 to 8 Way

150pc Assorted Box of HelaCon Plus Mini Connectors - 150 HellermannTyton HelaCon Plus Mini push-in wire connectors covering the full range of six configurations, from 2 way up to 8 way.

Push the conductor in and the double spring holds it - no screwdriver, no torque to judge, and nothing to come back and retighten six months later. That last point is why push-in connectors have taken over from screw terminals in junction boxes and ceiling roses: a screw terminal on stranded cable relaxes as the copper creeps, and a loose terminal in a lighting circuit is how connections start to heat. The spring keeps its pressure. Six ways in one box covers everything from a straight joint to a lighting circuit junction where eight conductors meet.

Box contents (150 pieces total)

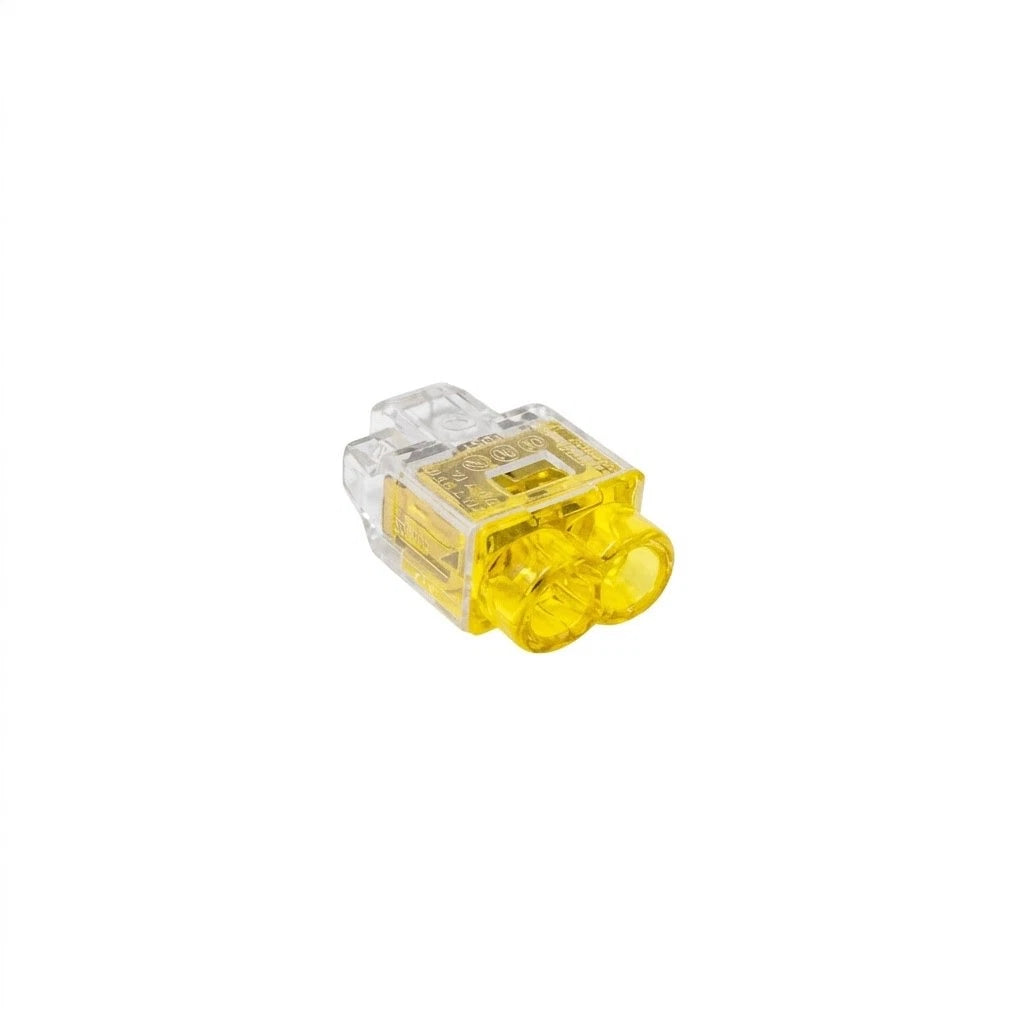

50 x 2 way (HCPM-2)

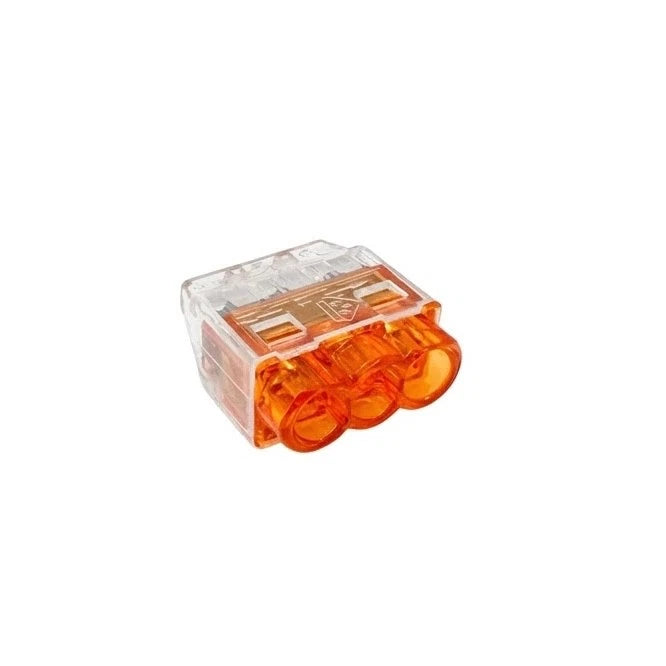

40 x 3 way (HCPM-3)

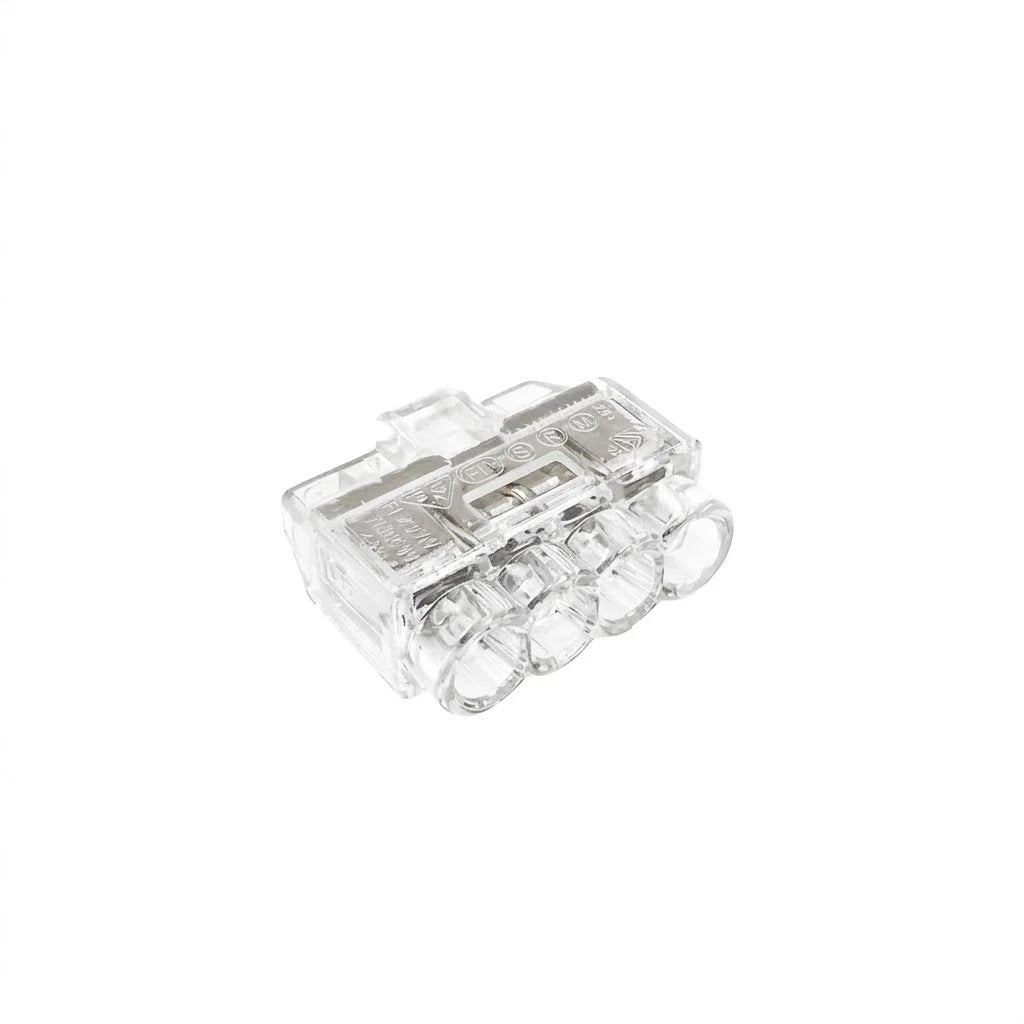

20 x 4 way (HCPM-4)

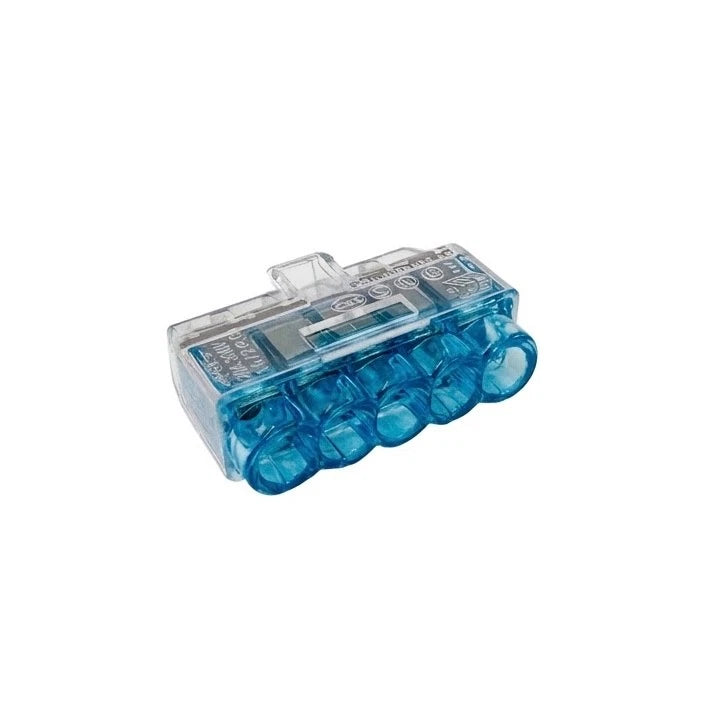

20 x 5 way (HCPM-5)

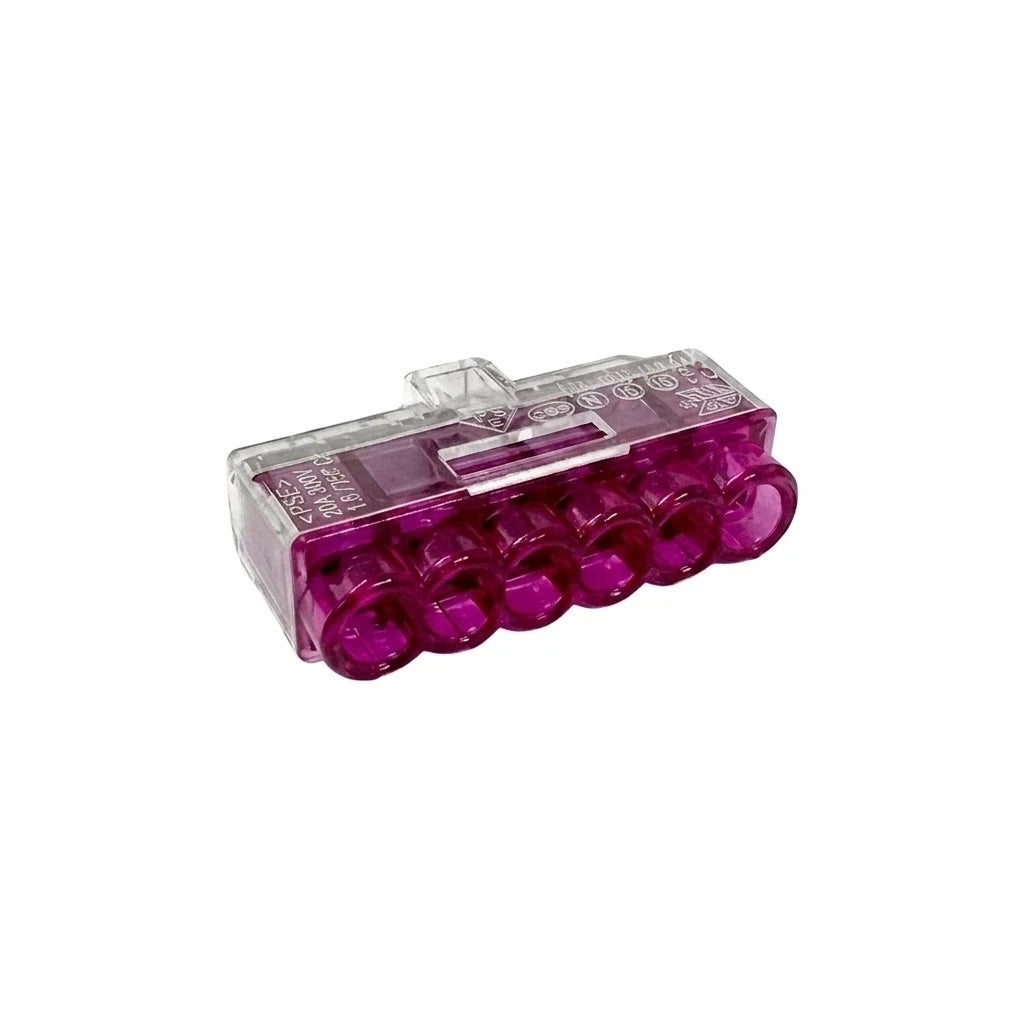

10 x 6 way (HCPM-6)

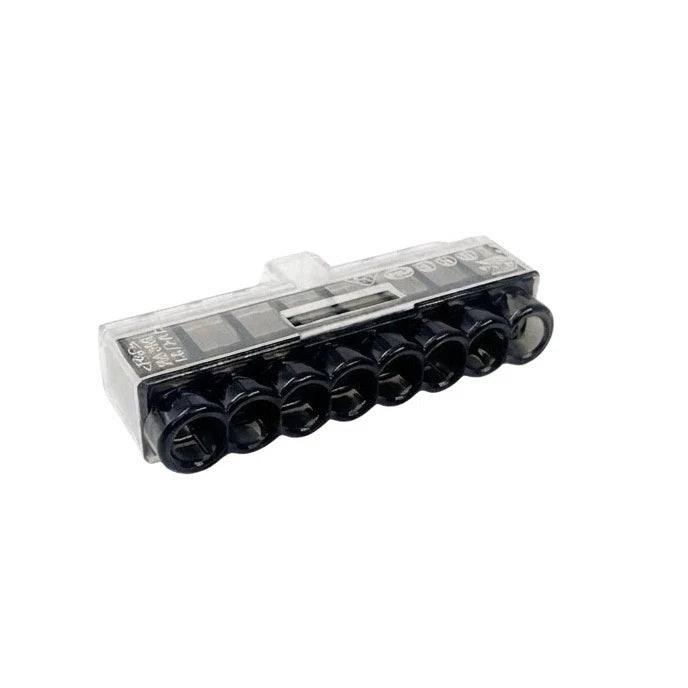

10 x 8 way (HCPM-8)

Conductor capacity
Solid 0.5 to 2.5mm², stranded 1.0 to 2.5mm²

Rated current
24A

Please note
Check the conductor type as well as the size. Solid cable is accepted from 0.5mm² but stranded only from 1.0mm², so thin flex at 0.5 and 0.75mm² - common on pendant and light fitting leads - is outside the range for these. Strip to the length given on the connector body and push the conductor fully home until it seats, and give it a light pull to confirm the spring has taken hold.

Suitable for
Lighting and socket circuits, junction boxes and ceiling roses, consumer unit and distribution work, panel and machine wiring, extending and joining existing circuits, electrical maintenance and installation work

Also known as push in wire connectors, push fit connectors, spring terminal connectors, lever free connectors, wire splice connectors, junction box connectors, or a push in connector assortment box.
