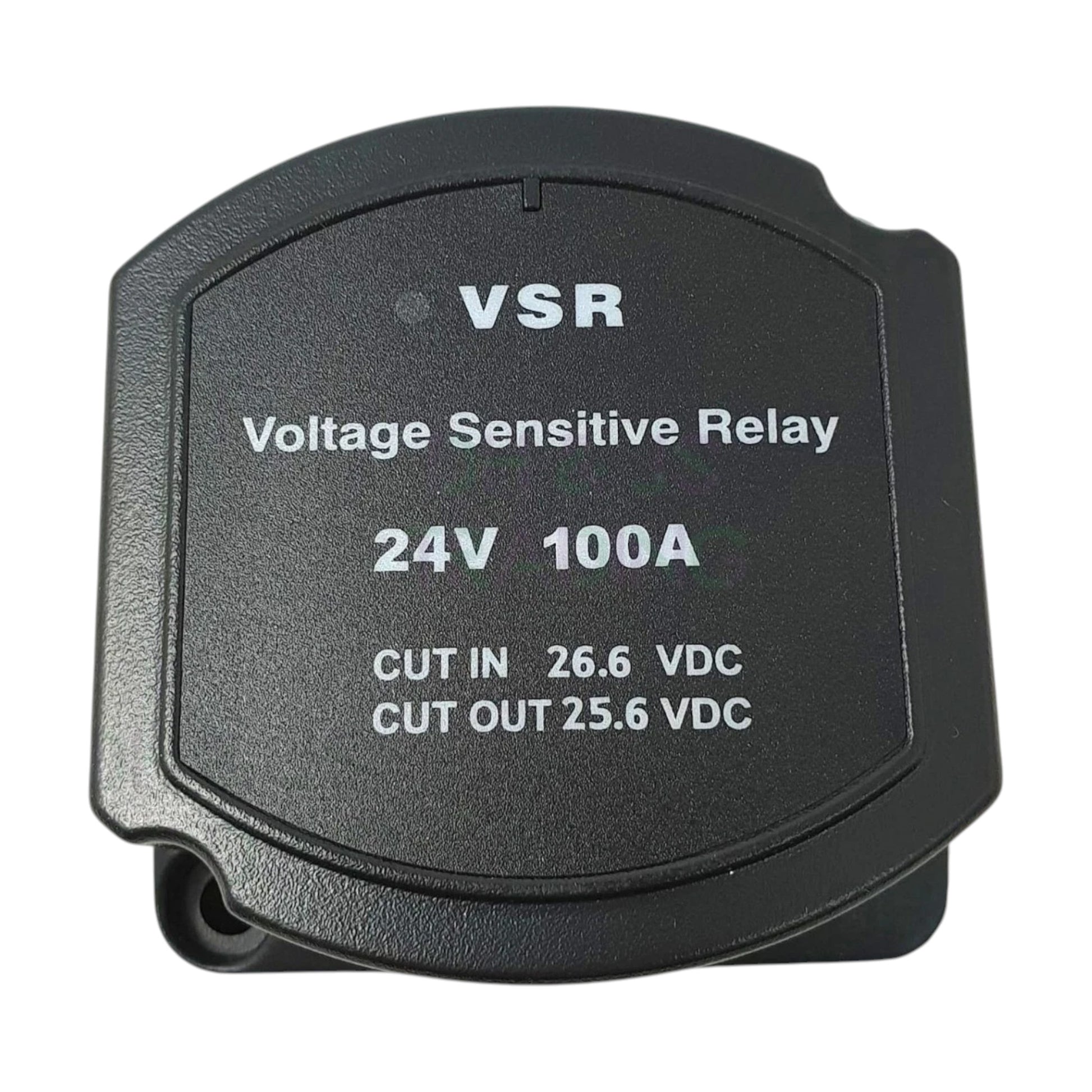

100A Split Charge Relay 24V – Voltage Sensitive Relay for Campervans & Commercial Vehicles

High-Quality 24V 100A Voltage Sensitive Relay for Dual Battery Systems

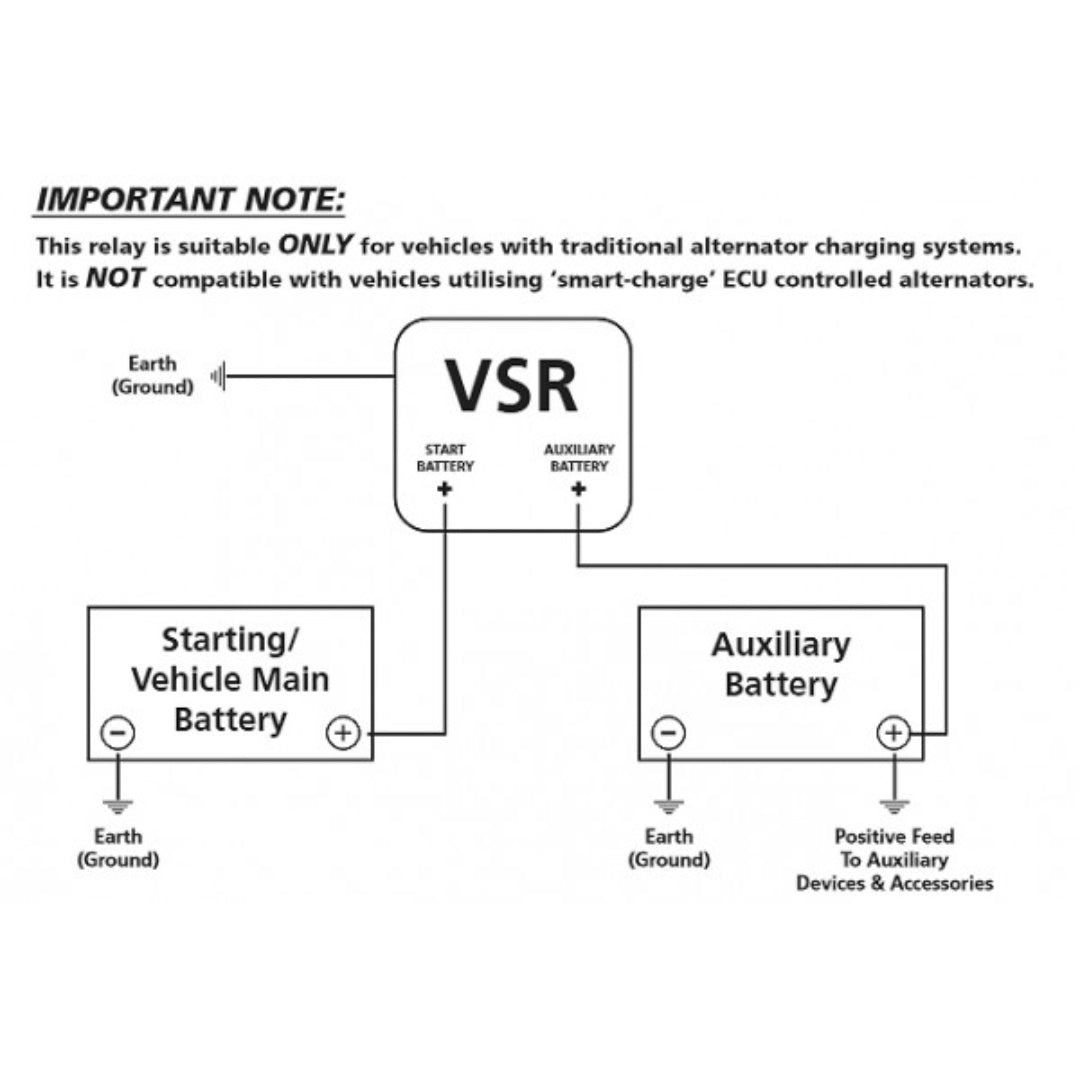

This 24V 100 Amp Voltage Sensitive Relay (VSR) is designed to safely manage split charging between a primary (starter) battery and a secondary battery bank, without the risk of draining your main battery.

By monitoring system voltage, the relay automatically connects the secondary battery only when sufficient charging voltage is present. When voltage drops, it disconnects, ensuring the starter battery remains protected at all times.

Ideal for 24V campervans, commercial vehicles, trucks, and specialist conversions, this relay offers reliable, automatic operation with no manual switching required.

A built-in red LED indicator provides clear visual confirmation of relay status.

🔴 Product Features:

• Voltage: 24V DC

• Current Rating: 100 Amp

• Relay Type: Voltage Sensitive Relay (VSR)

• Operation: Automatic split charging

• Indicator: Red LED status light

• Approvals: CE approved

• Build: Durable, high-quality construction

✅ Ideal For:

• 24V campervan conversions

• Commercial and utility vehicles

• Split charging systems

• Dual battery installations

• Auxiliary battery charging setups

⚠️ Important Notes:

• Designed for 24V systems only

• Prevents discharge of the starter battery

• Simple, automatic operation with no manual control required
