24V Relay 5 Pin Automotive 20/30A Changeover with Detachable Bracket – Standard Vehicle Relay (RY8)

Product Description

High quality 5-pin automotive relay designed for 24V systems, suitable for use in commercial vehicles, trucks, buses, agricultural and industrial applications.

This relay features a changeover (SPDT) configuration, with 20A / 30A switching capability, and is supplied with a detachable mounting bracket for secure and flexible installation.

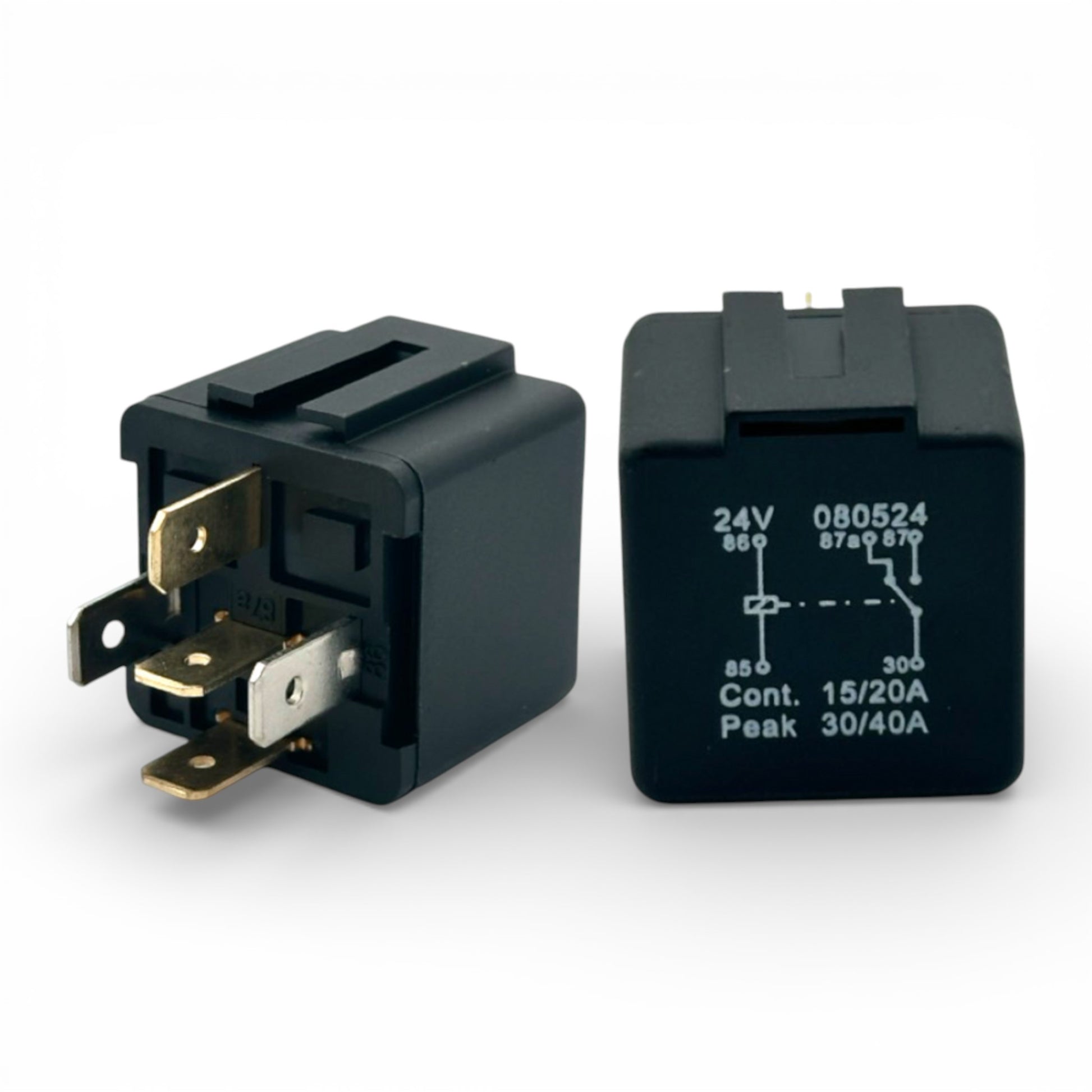

The product shown in the main image is exactly what you will receive.

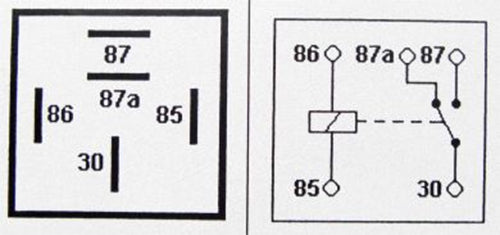

A wiring diagram is provided to clearly illustrate the relay architecture.

Manufactured to original equipment standard, ensuring reliability, durability and consistent performance in demanding environments.

Technical Specification

• Voltage: 24V DC

• Current Rating: 20A / 30A

• Relay Type: Changeover (SPDT)

• Number of Pins: 5

• Mounting: Detachable metal bracket included

• Terminal Type: Standard automotive spade terminals

• Colour: Black

Branded Cross Reference Guide

Audi: 183 951 253
CI: RL102
Delphi: SRB530
Durite: 0 727 24
ERA: 661105
Fister: HW 576
Ford: 81DB 15K235 VA
Hella: 4RA 003 510 057
Herth & Buss: 75613122
Intermotor: 59110
Leyland Auto: MAG3003 · REL2DB
Lighten Point: REL2
Lucas: SRB530
Mafco: 425-1020
Quinton Hazell: RL102
Redco: RPR 401
S.M.P. Europe: 59110
Scania: 235940 · 243462
Seat: 183 951 253
Skoda: 183 951 253
VAG: 183 951 253
Volkswagen: 183 951 253
Wehrle: 20400100
Woodauto: RLY1002

Features

• Reliable 24V 5-pin changeover relay

• 20A / 30A switching capacity

• Supplied with detachable mounting bracket

• OEM-quality construction

• Long service life and stable switching

Typical Applications

• Trucks & HGVs

• Buses & coaches

• Agricultural machinery

• Commercial vehicles

• Industrial electrical systems

What’s Included

• 1 × 24V 5-Pin 20/30A Automotive Relay

• Detachable mounting bracket

Delivery & Dispatch

• VAT invoice enclosed

• Free delivery via Royal Mail 48

• Upgrade to Royal Mail 24 for £1

• Upgrade to FedEx tracked next day delivery for £2

• Same day dispatch on orders placed before 1pm
